Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5YF-85540-00 5YF8554000 5YF8554000 |
C.D.I. UNIT ASSY
|
||||
| # 2 |
5CU-85546-00 5CU8554600 5CU8554600 |
BAND
|
||||
| # 3 |
4KJ-82310-10 3KJ8231013004KJ8231010 |
BOBINE D'ALLUMAGE
|
||||
| # 4 |
97007-06016 9701706016009700706016 |
BOLT, HEXAGON
|
||||
| # 5 |
90153-06034 9015306034 9015306034 |
SCREW (5G3)
|
||||
| # 6 |
55X-82370-00 4BP82370000055X8237000 |
PLUG CAP ASSY
|
||||
| # 7 |
3GB-82540-01 3GB8254001 3GB8254001 |
NEUTRAL SWITCH ASSY
|
||||
| # 8 |
90430-10148 9043010148 9043010148 |
GASKET (1KH, 1.0T)
|
||||
| # 9 |
5TH-81960-01 5TH8196001 5TH8196001 |
RECTIFIER & REGULATOR ASSY
|
||||
| # 10 |
98507-06016 9850706016 9850706016 |
SCREW, PAN HEAD(3TJ)
|
||||
| # 11 |
92907-06100 9290706100 9290706100 |
WASHER, SPRING
|
||||
| # 12 |
3MW-81940-00 3MW8194001003MW8194000 |
STARTER RELAY ASSY (MS5E-661)
|
||||
| # 13 |
95027-06008 9502706008 9502706008 |
BOLT, SMALL FLANGE
|
||||
| # 14 |
1RL-81950-92 12R8195002001RL8195092 |
RELAIS COMPLET
|
||||
| # 15 |
55X-82110-61 YME82110710055X8211061 |
BATTERY ASSY YU-12N7D-3B(DC)
|
||||
| # 16 |
90445-085E0 90445085E0 90445085E0 |
DURITE (L450)
|
Contact | |||
| # 17 |
55X-82115-00 55X82115010055X8211500 |
WIRE, PLUS LEAD
|
||||
| # 18 |
3GB-82116-00 3GB8211600 3GB8211600 |
WIRE, MINUS LEAD
|
||||
| # 19 |
4J2-82131-01 4J28213101 4J28213101 |
BAND, BATTERY
|
||||
| # 20 |
55X-82122-00 55X8212200 55X8212200 |
SEAT, BATTERY
|
Contact | |||
| # 21 |
29W-82123-00 1UY21638000029W8212300 |
DAMPER 1
|
||||
| # 22 |
3GB-82150-00 3GB8215000 3GB8215000 |
FUSE HOLDER ASSY
|
||||
| # 23 |
3GB-82151-00 5G28215100003GB8215100 |
FUSE (12V 5A)
|
||||
| # 24 |
4KB-83530-00 4KB8353001004KB8353000 |
PILOT LIGHT ASSY
|
||||
| # 25 |
5GH-83516-00 5JSH351700005GH8351600 |
BULB (12V-1.7W) T6.5
|
||||
| # 26 |
5YF-82590-00 5YF8259000 5YF8259000 |
WIRE HARNESS ASSY
|
Contact | |||
| # 27 |
3WP-81980-00 3WP8198000 3WP8198000 |
DIODE ASSY
|
||||
| # 28 |
90460-15126 9046015126 9046015126 |
CLAMP, HOSE(3KJ)
|
||||
| # 29 |
90464-12045 25G8393601009046412045 |
BAND, SWITCH CORD
|
||||
| # 30 |
90464-13073 9046415195009046413073 |
CLAMP(4FM)
|
||||
| # 31 |
437-83936-01 4378393601 4378393601 |
BAND, SWITCH CORD
|
||||
| # 32 |
4GB-82510-11 4GB8251012004GB8251011 |
MAIN SWITCH ASSY
|
||||
| # 33 |
3HN-82569-00 3HN8256900 3HN8256900 |
NUT, MAIN SWITCH
|
||||
| # 34 |
3HN-82579-00 3HN8257900 3HN8257900 |
CAP, KEY
|
||||
| # 35 |
90465-10098 9046510098 9046510098 |
CLAMP
|
||||
| # 36 |
5YF-82550-00 5YF8255000 5YF8255000 |
ENGINE STOP SWITCH ASSY
|
||||
| # 37 |
3TB-83936-00 4378393611003TB8393600 |
BAND, SWITCH CORD
|
||||
| # 38 |
90464-15195 9046415195 9046415195 |
CLAMP(4FM)
|

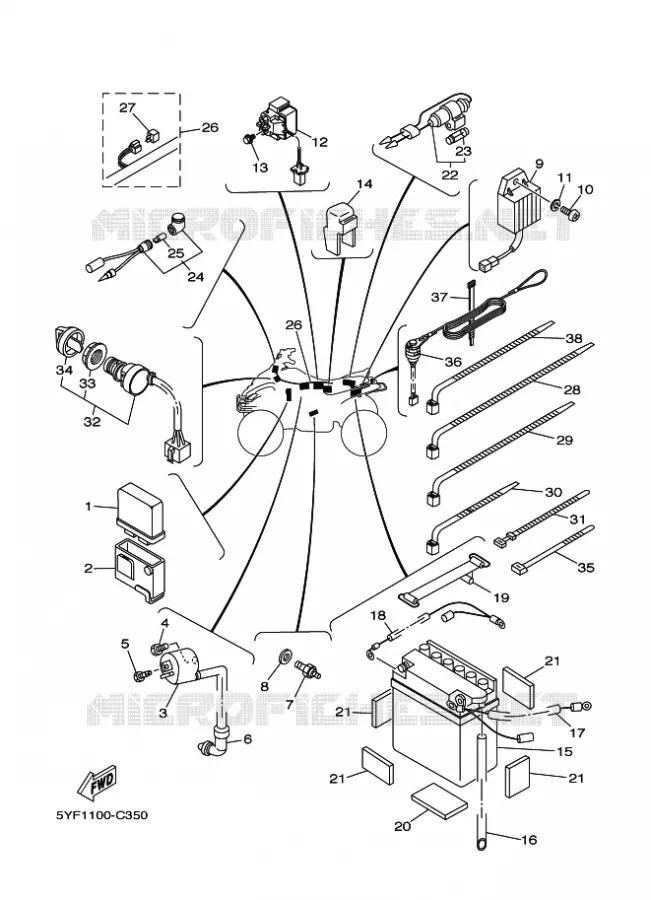

Yamaha YFM50 YFM50S
Cilinderinhoud: 50 Jaar: 2004 Model code 5YF3 Kleur: DEEP PURPLISH BLUE SOLID E
