Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5WX-E4703-21 5WXE470321 5WXE470321 |
MUFFLER COMP. 1
|
||||
| # 2 |
93210-25X00 9321025X00 9321025X00 |
O-RING
|
||||
| # 3 |
90506-18856 9050618856 9050618856 |
RESORTE DE TENSION
|
||||
| # 4 |
9570M-08500 9570M08500 9570M08500 |
ECROU, A COLLERETTE
|
Contact | |||
| # 5 |
9582M-08035 9582M08035 9582M08035 |
BOLT, FLANGE
|
||||
| # 6 |
9582M-08016 9582M08016 9582M08016 |
BOLT, FLANGE
|
||||
| # 7 |
9290M-08600 9290M08600 9290M08600 |
WASHER, PLATE
|
||||
| # 8 |
90201-08X08 9020108X08 9020108X08 |
WASHER, PLATE
|
||||
| # 9 |
5WX-E4874-00 5WXE487400 5WXE487400 |
PIPE 4
|
Contact | |||
| # 10 |
90468-08104 9046808104 9046808104 |
CLIP
|
||||
| # 11 |
5WX-E4803-00 5WXE480300 5WXE480300 |
AIR INDUCTION SYST
|
Contact | |||
| # 12 |
9850M-06012 9850M06012 9850M06012 |
SCREW, PAN HEAD
|
||||
| # 13 |
5WX-E4873-10 5WXE487310 5WXE487310 |
PIPE 3
|
||||
| # 14 |
90468-08104 9046808104 9046808104 |
CLIP
|
||||
| # 15 |
5WX-E4872-00 5WXE487200 5WXE487200 |
PIPE 2
|
||||
| # 16 |
4KM-14714-01 4KM1471401 4KM1471401 |
GASKET, MUFFLER
|
||||
| # 17 |
9581L-06012 9581L06012 9581L06012 |
BOLT, FLG. (B-LOCAL)
|
Contact |

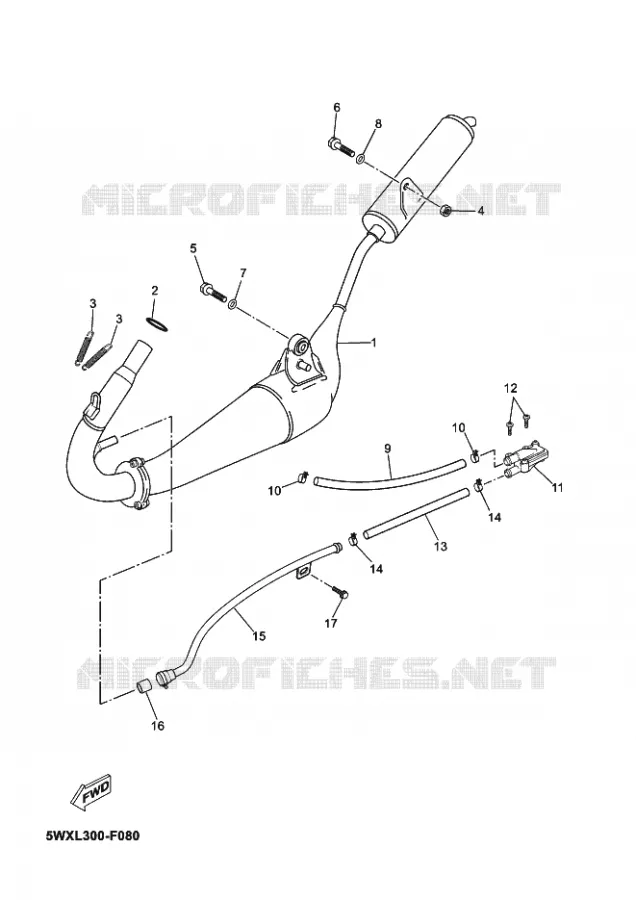

Yamaha TZR50 X-POWER
Cilinderinhoud: 50 Jaar: 2009 Model code 5WXW Kleur: PURPLISH WHITE SOLID 1
