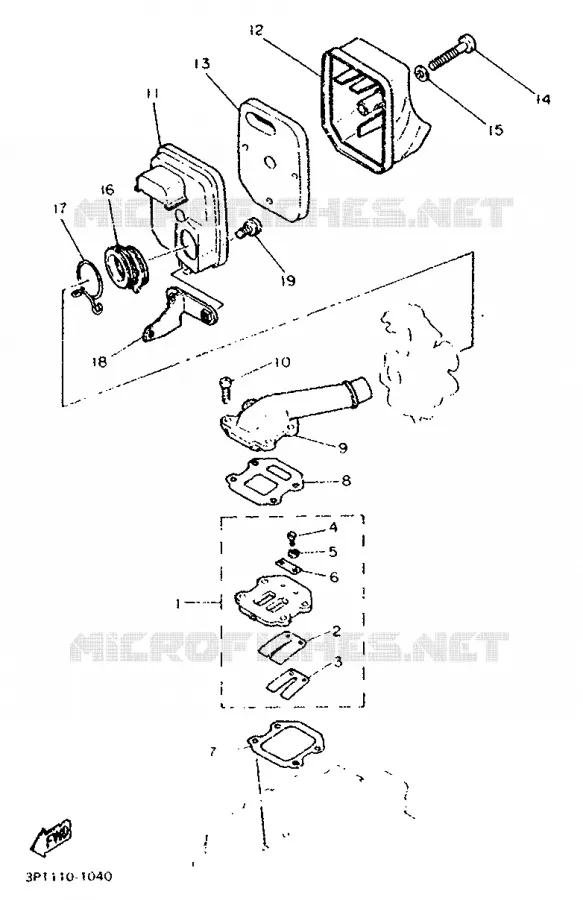

| # 1 |
3L5-13610-00-00 3L5136100000 3L5136100000 |
REED VALVE ASSY
|
||||
| # 2 |
3L5-13613-00-00 3L5136130000 3L5136130000 |
REED VALVE
|
||||
| # 3 |
3L5-13616-00-00 3L5136160000 3L5136160000 |
STOPPER, REED VALVE
|
||||
| # 4 |
98507-03010-00 985070301000 985070301000 |
SCREW, PAN HEAD(3HH)
|
||||
| # 5 |
92907-03100-00 929900310000929070310000 |
WASHER, SPRING
|
||||
| # 6 |
3L5-13624-00-00 3L5136240000 3L5136240000 |
PLATE, REED VALVE
|
||||
| # 7 |
3HK-13621-00-00 3HK136210000 3HK136210000 |
GASKET, VALVE SEAT
|
||||
| # 8 |
3L5-13622-10-00 3L5136221000 3L5136221000 |
GASKET, VALVE SEAT
|
||||
| # 9 |
3L5-13555-00-00 3L5135550000 3L5135550000 |
MANIFOLD
|
||||
| # 10 |
98507-06020-00 985170602000985070602000 |
SCREW, PAN
|
||||
| # 11 |
4X4-14411-00-00 4X4144110000 4X4144110000 |
CASE, AIR CLEANER 1
|
||||
| # 12 |
4X4-14412-00-00 4X4144120000 4X4144120000 |
CAP, CLEANER CASE 1
|
||||
| # 13 |
4X4-14451-00-00 4X4144510000 4X4144510000 |
ELEMENT, AIR CLEANER
|
||||
| # 14 |
98507-06045-00 985070604500 985070604500 |
SCREW, PAN
|
||||
| # 15 |
92907-06600-00 929070660000 929070660000 |
WASHER(6TA)
|
||||
| # 16 |
4X4-14453-00-00 4X4144530000 4X4144530000 |
JOINT, AIR CLEANER 1
|
||||
| # 17 |
90467-20023-00 904672002300 904672002300 |
CLIP 296144550000
|
||||
| # 18 |
4X4-14493-01-00 4X4144930100 4X4144930100 |
STAY 1
|
||||
| # 19 |
90159-06013-00 901590601300 901590601300 |
SCREW, WITH WASHER (517).
|
