| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5TG-14101-21 5TG1410121 5TG1410121 |

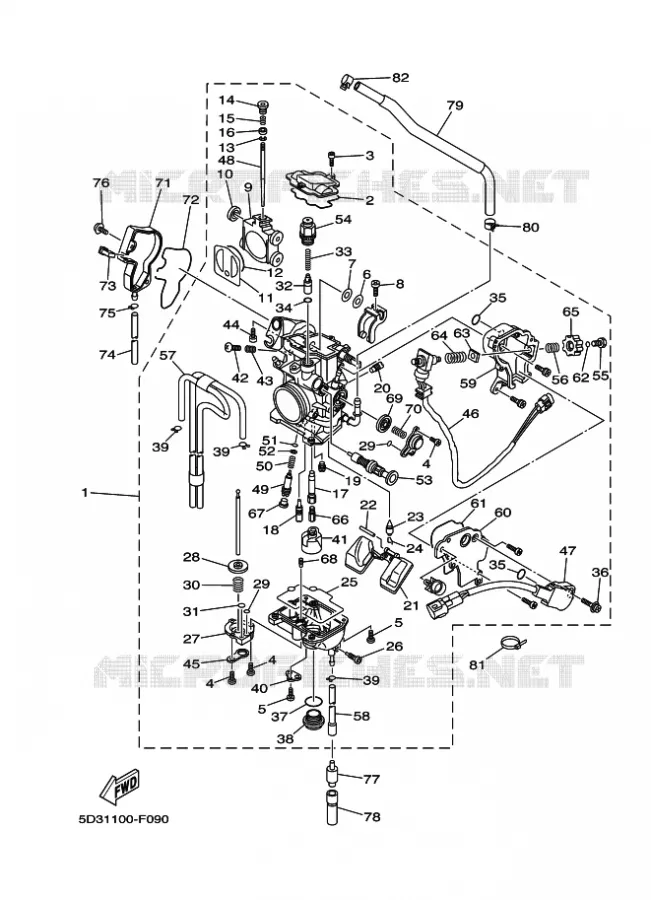

CARBURETOR ASSY 1
|
Contact | |||
| # 2 |
5JG-14959-00 5JG1495900 5JG1495900 |
GASKET
|
||||
| # 3 |
91316-04012 9131704012009131604012 |
BOLT, SOCKET
|
||||
| # 4 |
688-14592-00 9858004008006881459200 |
SCREW, PAN HEAD (713)
|
||||
| # 5 |
98502-04012 9851704012009850204012 |
SCREW, PAN HEAD
|
||||
| # 6 |
90202-08045 9020208045 9020208045 |
WASHER, PLATE
|
||||
| # 7 |
5JG-14951-00 5JG1495100 5JG1495100 |
WASHER
|
||||
| # 8 |
5JG-14522-00 5JG1452209005JG1452200 |
SCREW, ADJUST
|
||||
| # 9 |
5JG-14388-00 5JG1438800 5JG1438800 |
VALVE, VACUUM CONTROL
|
Contact | |||
| # 10 |
3TJ-14267-40 3TJ1426740 3TJ1426740 |
ROLLER
|
||||
| # 11 |
5JG-14546-01 5JG1454601 5JG1454601 |
VALVE, NEEDLE
|
||||
| # 12 |
4FN-14997-00 4FN1499700 4FN1499700 |
SEAL
|
||||
| # 13 |
3TJ-14159-40 3TJ1415940 3TJ1415940 |
CLIP
|
||||
| # 14 |
5JG-14521-00 5JG1452100 5JG1452100 |
SCREW, ADJUST
|
||||
| # 15 |
5JG-14275-00 5JG1427500 5JG1427500 |
SPRING
|
||||
| # 16 |
5JG-14264-00 5JG1426400 5JG1426400 |
COLLAR
|
||||
| # 17 |
5JG-14947-00 5JG1494701005JG1494700 |
GICLEUR DE STARTER
|
||||
| # 18 |
4MX-14948-06 4MX1494806 4MX1494806 |
JET, PILOT (#48)
|
||||
| # 19 |
3TJ-1494F-23 3TJ1494F23 3TJ1494F23 |
JET (#90)
|
||||
| # 20 |
5TA-14943-15 5TA1494315 5TA1494315 |
JET, MAIN (#70)
|
||||
| # 21 |
4SR-14985-00 4SR1498500 4SR1498500 |
FLOAT
|
||||
| # 22 |
676-14548-00 6631454800006761454800 |
PIN, ARM
|
||||
| # 23 |
4MX-14392-00 4MX1439200 4MX1439200 |
VALVE, NEEDLE
|
||||
| # 24 |
633-14159-00 6331415900 6331415900 |
CLIP
|
||||
| # 25 |
5JG-14984-00 5JG1498400 5JG1498400 |
GASKET, FLOAT CHAMBER
|
||||
| # 26 |
3TJ-14191-40 3TJ1419140 3TJ1419140 |
PLUG, DRAIN
|
||||
| # 27 |
3TJ-14293-40 3TJ1429340 3TJ1429340 |
COVER 1
|
||||
| # 28 |
5JG-14940-17 5JG1494017 5JG1494017 |
DIAPHRAGM ASSY
|
||||
| # 29 |
3TJ-14536-40 3TJ1453640 3TJ1453640 |
GASKET
|
||||
| # 30 |
3TJ-14933-40 3TJ1493340 3TJ1493340 |
SPRING, DIAPHRAGM
|
||||
| # 31 |
6H4-14561-00 6H41456100 6H41456100 |
O-RING
|
||||
| # 32 |
5TA-14371-00 5TA1437100 5TA1437100 |
PLUNGER, STARTER
|
||||
| # 33 |
5TA-14335-00 5TA1433500 5TA1433500 |
SPRING, PLUNGER
|
||||
| # 34 |
5TA-14997-00 5TA1499700 5TA1499700 |
SEAL
|
||||
| # 35 |
5NX-14562-00 33D1456200005NX1456200 |
O-RING
|
||||
| # 36 |
5NX-14216-00 1DX1421600005NX1421600 |
SCREW
|
||||
| # 37 |
4MX-14561-00 4MX1456100 4MX1456100 |
O-RING
|
||||
| # 38 |
4MX-14115-00 4MX1411500 4MX1411500 |
PLUG, SCREW
|
||||
| # 39 |
3TJ-14137-40 3TJ1413740 3TJ1413740 |
CLIP
|
||||
| # 40 |
5BE-14146-00 5BE1414600 5BE1414600 |
PLATE
|
||||
| # 41 |
5JG-14346-00 5JG1434600 5JG1434600 |
PLATE
|
||||
| # 42 |
5JG-14565-00 5JG1456500 5JG1456500 |
SCREW
|
||||
| # 43 |
5JG-14531-00 5JG1453100 5JG1453100 |
SPRING, ADJUST SCREW
|
||||
| # 44 |
5JG-14591-00 5JG1459109005JG1459100 |
SCREW
|
||||
| # 45 |
5PA-14146-00 5PA1414600 5PA1414600 |
PLATE
|
||||
| # 46 |
5TG-8259A-00 5TG8259A00 5TG8259A00 |
SWITCH, CARBURETOR
|
||||
| # 47 |
5TG-85885-00 5TG8588501005TG8588500 |
SENSITOMETRE (ENS.)
|
||||
| # 48 |
5BE-14916-DR 5BE14916DR 5BE14916DR |
NEEDLE
|
||||
| # 49 |
3TJ-14923-40 3TJ1492340 3TJ1492340 |
SCREW, PILOT
|
||||
| # 50 |
3TJ-14160-40 3TJ1416040 3TJ1416040 |
COIL, SPRING
|
||||
| # 51 |
3TJ-14562-40 8ES1414700003TJ1456240 |
O-RING
|
||||
| # 52 |
3TJ-14952-40 3TJ1495240 3TJ1495240 |
WASHER
|
||||
| # 53 |
5TG-14171-00 5TG1417100 5TG1417100 |
PLUNGER, STARTER
|
||||
| # 54 |
5TG-14225-00 5TG1422500 5TG1422500 |
CAP
|
||||
| # 55 |
5TG-14591-00 5TG1459100 5TG1459100 |
SCREW
|
||||
| # 56 |
5TG-14935-00 5TG1493500 5TG1493500 |
SPRING
|
||||
| # 57 |
5TG-14197-00 5TG1419700 5TG1419700 |
PIPE
|
Contact | |||
| # 58 |
5TG-14987-00 5TG1498700 5TG1498700 |
HOSE
|
||||
| # 59 |
5TG-14417-00 5TG1441700 5TG1441700 |
COVER 1
|
Contact | |||
| # 60 |
5TG-14418-00 5TG1441800 5TG1441800 |
. COUVERCLE 2
|
Contact | |||
| # 61 |
5TG-14959-00 5TG1495900 5TG1495900 |
GASKET
|
||||
| # 62 |
5TG-14561-00 5TG1456100 5TG1456100 |
O-RING
|
||||
| # 63 |
5TG-14255-00 5TG1425500 5TG1425500 |
PLATE
|
Contact | |||
| # 64 |
5TG-14335-00 5TG1433500 5TG1433500 |
SPRING, PLUNGER
|
||||
| # 65 |
5TG-14261-00 5TG1426100 5TG1426100 |
HOLDER
|
||||
| # 66 |
4MX-14943-38 4MX1494338 4MX1494338 |
JET, MAIN (#155)
|
||||
| # 68 |
4JT-1494F-03 4JT1494F03 4JT1494F03 |
JET (#40)
|
||||
| # 69 |
5GS-14940-00 5GS1494000 5GS1494000 |
DIAPHRAGM ASSY
|
||||
| # 70 |
5GS-14933-00 5GS1493300 5GS1493300 |
SPRING, DIAPHRAGM
|
||||
| # 71 |
5TA-14293-00 5TA1429300 5TA1429300 |
COVER 1
|
||||
| # 72 |
5TA-14227-00 5TA1422700 5TA1422700 |
GASKET
|
||||
| # 73 |
5TA-14239-00 5TA1423900 5TA1423900 |
SEAL
|
||||
| # 74 |
5TA-14987-00 5TA1498700 5TA1498700 |
HOSE
|
||||
| # 75 |
3TJ-14137-40 3TJ1413740 3TJ1413740 |
CLIP
|
||||
| # 76 |
90110-05038 9011005038 9011005038 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 77 |
24W-14193-00 24W1419300 24W1419300 |
PIPE 2, OVERFLOW
|
||||
| # 78 |
91A20-07004 91A2007004 91A2007004 |
TUBE, FLEXIBLE VINYL
|
Contact | |||
| # 79 |
5TG-24311-10 5TG2431110 5TG2431110 |
PIPE, FUEL 1
|
||||
| # 80 |
90467-120A5 90467120A5 90467120A5 |
CLIP
|
||||
| # 81 |
90464-13133 9046413133 9046413133 |
CLAMP(3SK)
|
||||
| # 82 |
90467-100A2 90467100A2 90467100A2 |
CLIP
|
Yamaha YFZ450
Cilinderinhoud: 450 Jaar: 2007 Model code 5D3A Kleur: BLACK METALLIC J
