Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5TA-13300-00 5TA1330000 5TA1330000 |
OIL PUMP ASSY
|
||||
| # 2 |
5TA-13320-00 5TA1332000 5TA1332000 |
ROTOR ASSY 2
|
||||
| # 3 |
93603-16219 9360316219 9360316219 |
PIN, DOWEL(1HX)
|
||||
| # 4 |
93440-10153 9344010153 9344010153 |
CIRCLIP(1WG)
|
||||
| # 5 |
93210-10197 9321010197 9321010197 |
O-RING (371)
|
||||
| # 6 |
99530-10114 9953010114 9953010114 |
PIN, DOWEL(3VD)
|
||||
| # 7 |
99530-08012 9953008012 9953008012 |
PIN, DOWEL(6G8)
|
||||
| # 8 |
90110-06058 9011006058 9011006058 |
BOLT, HEXAGON SOCKET HEAD
|
Contact | |||
| # 9 |
91314-06030 9131406030 9131406030 |
BOLT, SOCKET
|
||||
| # 10 |
5TA-13341-00 5TA1334100 5TA1334100 |
GEAR, OIL PUMP IDLE
|
||||
| # 11 |
5BE-13342-00 5BE1334200 5BE1334200 |
SHAFT, IDLE GEAR
|
||||
| # 12 |
99001-08600 9900108600 9900108600 |
CIRCLIP(2R6)
|
||||
| # 13 |
99009-12400 9900912400 9900912400 |
CIRCLIP(10Y)
|
||||
| # 14 |
90201-12166 9020112166 9020112166 |
WASHER PLATE 164185720000
|
||||
| # 15 |
5TA-13412-00 5TA1341200 5TA1341200 |
HOUSING, STRAINER
|
||||
| # 16 |
5BE-13411-00 5BE1341100 5BE1341100 |
STRAINER, OIL
|
Contact | |||
| # 17 |
95027-06025 90105060A0009502706025 |
BOLT, WASHER BASED(4KG)
|
||||
| # 18 |
5TA-13440-00 5D31344009005TA1344000 |
ELEMENT ASSY, OIL CLEANER
|
||||
| # 19 |
5BE-13447-10 5BE1344710 5BE1344710 |
COVER, OIL ELEMENT
|
||||
| # 20 |
93210-47675 9321047675 9321047675 |
O-RING(52H)
|
||||
| # 21 |
93210-07135 9321007135 9321007135 |
O-RING (583 OIL DRAIN BOLT)
|
||||
| # 22 |
90109-065G2 90109065G2 90109065G2 |
BOLT
|
||||
| # 23 |
95027-06065 9502706065 9502706065 |
BOLT, SMALL FLANGE
|
||||
| # 24 |
95027-06020 9502706020 9502706020 |
BOLT, FLANGE(6U1)
|
||||
| # 25 |
5TG-13161-00 5TJ1316100005TG1316100 |
PIPE, DELIVERY 1
|
||||
| # 26 |
90401-10159 9040110159 9040110159 |
BOLT, UNION(3GM)
|
||||
| # 27 |
90430-10188 9043010171009043010188 |
GASKET (5R6)
|
||||
| # 28 |
90401-08038 9040108006009040108038 |
BOLT, UNION
|
||||
| # 29 |
90430-08119 9020108087009043008119 |
WASHER, PLATE 3411117500
|
||||
| # 30 |
5TG-13171-00 5TG1317100 5TG1317100 |
PIPE, DELIVERY 2
|
||||
| # 31 |
93210-07003 9321007540009321007003 |
O-RING (11M)
|
||||
| # 32 |
93210-09008 9321009008 9321009008 |
O-RING (137)
|
||||
| # 33 |
93210-12759 9321012759 9321012759 |
O-RING(M01)
|
||||
| # 34 |
95027-06012 9502706012 9502706012 |
BOLT, FLANGE(4MY)
|
||||
| # 35 |
5TG-13416-00 5TG1341610005TG1341600 |
PIPE, OIL 1
|
||||
| # 36 |
93210-10197 9321010197 9321010197 |
O-RING (371)
|
||||
| # 37 |
99530-10114 9953010114 9953010114 |
PIN, DOWEL(3VD)
|
||||
| # 38 |
95027-06025 90105060A0009502706025 |
BOLT, WASHER BASED(4KG)
|
||||
| # 39 |
5TG-13418-00 5TG1341810005TG1341800 |
PIPE, OIL 2
|
||||
| # 40 |
90450-22017 9045022M14009045022017 |
HOSE CLAMP ASSY(64X)
|
||||
| # 41 |
93210-10197 9321010197 9321010197 |
O-RING (371)
|
||||
| # 42 |
99530-10114 9953010114 9953010114 |
PIN, DOWEL(3VD)
|
||||
| # 43 |
95027-06025 90105060A0009502706025 |
BOLT, WASHER BASED(4KG)
|

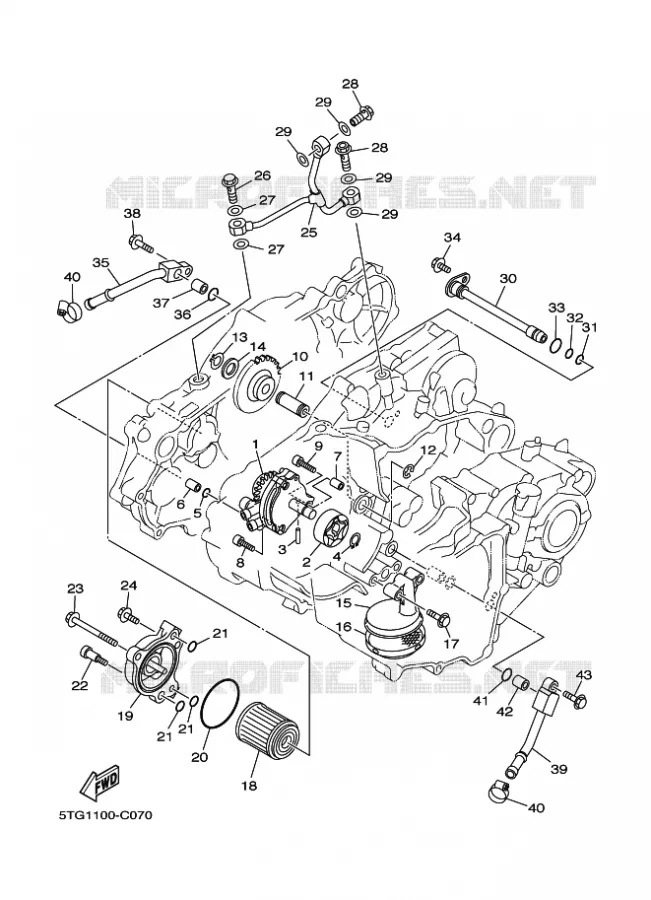

Yamaha YFZ450
Cilinderinhoud: 450 Jaar: 2005 Model code 5TG7 Kleur: DEEP PURPLISH BLUE SOLID E
