| # 1 |
1SL-14611-00 1SL1461100 1SL1461100 |
PIPE, EXHAUST 1
|
||||
| # 2 |
1SL-14628-00 1SL1462800 1SL1462800 |
PROTECTOR, EXHAUST PIPE
|
||||
| # 3 |
90201-05017 9020105017 9020105017 |
WASHER, PLATE
|
||||
| # 4 |
98980-06008 9898006008 9898006008 |
SCREW, BIND(2TV)
|
||||
| # 5 |
33D-14613-00 33D1461300 33D1461300 |
GASKET, EXHAUST PIPE
|
||||
| # 6 |
95704-06500 9578006500009570406500 |
NUT, FLANGE(7NB)
|
||||
| # 7 |
1SL-14621-00 1SL1462100 1SL1462100 |
PIPE, EXHAUST 2
|
||||
| # 8 |
5XD-14714-00 5XD1471400 5XD1471400 |
GASKET, MUFFLER
|
||||
| # 9 |
1SL-1463B-00 1SL1463B00 1SL1463B00 |
PROTECTOR, EXT. PIPE 2
|
||||
| # 10 |
90201-05017 9020105017 9020105017 |
WASHER, PLATE
|
||||
| # 11 |
98980-06008 9898006008 9898006008 |
SCREW, BIND(2TV)
|
||||
| # 12 |
1SL-14788-00 1SL1478800 1SL1478800 |
BAND, SILENCER
|
||||
| # 13 |
95024-08040 9502408040 9502408040 |
BOLT, FLANGE(4KG)
|
||||
| # 14 |
1SL-14639-00 1SL1463900 1SL1463900 |
STAY, EXHAUST PIPE 1
|
||||
| # 15 |
5VY-14747-00 5VY1474700 5VY1474700 |
DAMPER, MUFFLER
|
||||
| # 16 |
90105-08137 9010508137 9010508137 |
BOLT, FLANGE
|
||||
| # 17 |
90201-08061 9020108061 9020108061 |
WASHER, PLATE
|
||||
| # 18 |
90387-08081 9038708081 9038708081 |
COLLAR
|
||||
| # 19 |
2GC-14701-00 2GC1470100 2GC1470100 |
MUFFLER COMP.
|
||||
| # 20 |
5TJ-14780-00 5TJ1478000 5TJ1478000 |
SPARK ARRESTER ASSY
|
||||
| # 21 |
5TJ-14784-00 5TJ1478400 5TJ1478400 |
PIPE, TAIL
|
||||
| # 22 |
5TJ-14623-00 5TJ1462300 5TJ1462300 |
GASKET, EXHAUST PIPE
|
||||
| # 23 |
90110-05041 9011005041 9011005041 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 24 |
5TJ-14799-00 5TJ1479900 5TJ1479900 |
CAP
|
||||
| # 25 |
92012-05008 9201205008 9201205008 |
BOLT, BUTTON HEAD
|
||||
| # 26 |
1SL-14714-00 1SL1471400 1SL1471400 |
GASKET, MUFFLER
|
||||
| # 27 |
B29-14715-00 B291471500 B291471500 |
BAND, MUFFLER
|
||||
| # 28 |
95024-08040 9502408040 9502408040 |
BOLT, FLANGE(4KG)
|
||||
| # 29 |
90105-08230 9010508230 9010508230 |
BOLT, FLANGE
|
||||
| # 30 |
90119-08170 9011908170 9011908170 |
BOLT, WITH WASHER
|

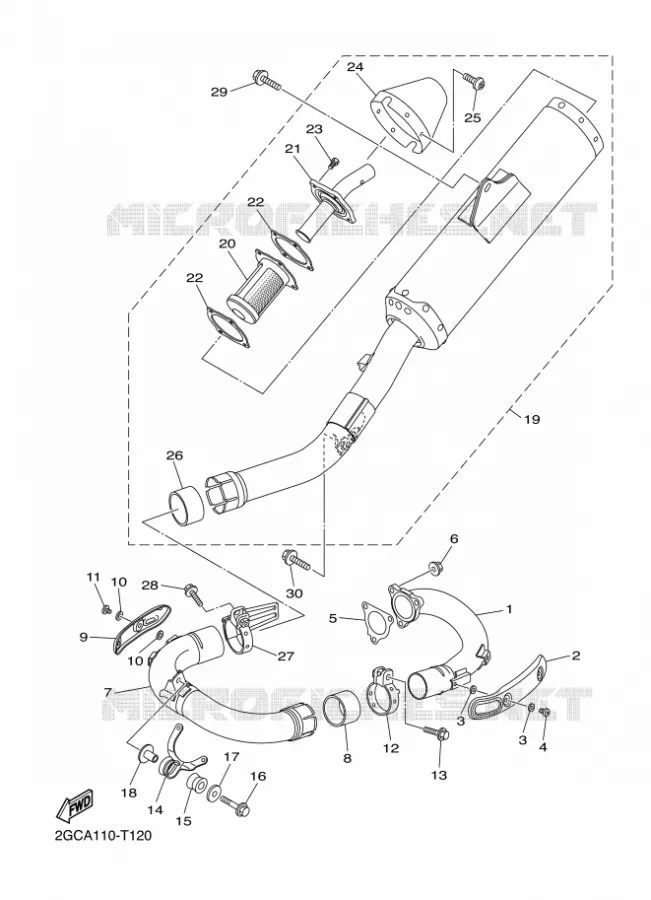

Yamaha WR450F
Cilinderinhoud: 450 Jaar: 2018 Model code 2GCC Kleur: DEEP PURPLISH BLUE SOLID E
