| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
1DX-22200-00 1DX2220000 1DX2220000 |

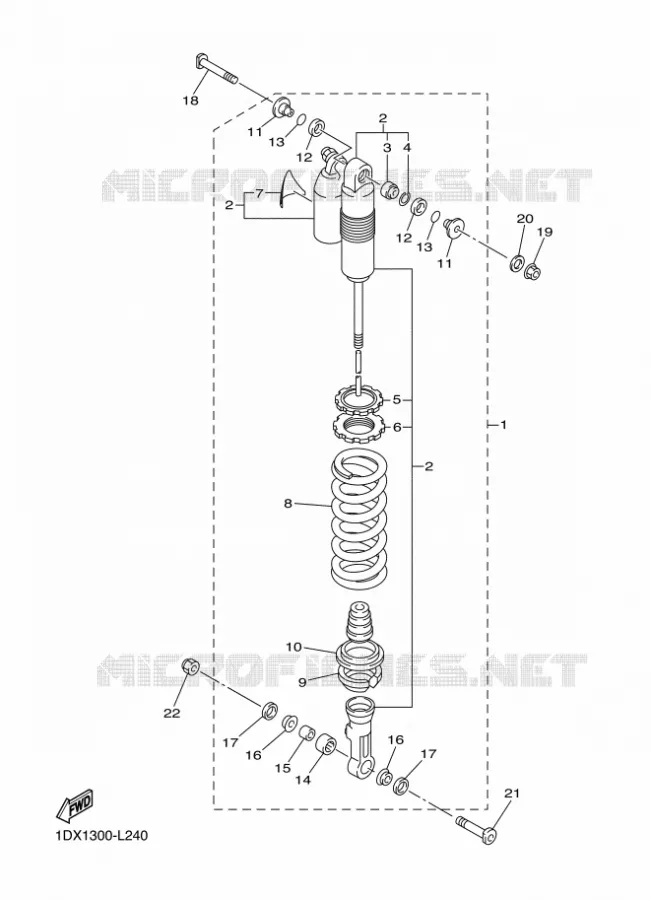

SHOCK ABSORBER ASSY, REAR
|
||||
| # 2 |
1DX-22201-00 1DX2220100 1DX2220100 |
DAMPER SUB ASSY
|
||||
| # 3 |
4JX-22226-00 4JX2222600 4JX2222600 |
BUSH, SHOCK ABSORBER LOWER
|
||||
| # 4 |
5DH-23183-00 5DH2318300 5DH2318300 |
CIRCLIP
|
||||
| # 5 |
3SP-22234-00 3SP2223400 3SP2223400 |
GUIDE, SPRING 3
|
||||
| # 6 |
3SP-22213-00 3SP2221300 3SP2221300 |
SEAT, SPRING UPPER
|
||||
| # 7 |
4AA-22259-40 4AA2225940 4AA2225940 |
LABEL, WARNING
|
||||
| # 8 |
1DX-22212-20 1DX2221220 1DX2221220 |
SPRING
|
||||
| # 9 |
5XE-22214-00 5XE2221400 5XE2221400 |
GUIDE, SPRING 1
|
||||
| # 10 |
5MV-22224-00 5MV2222400 5MV2222400 |
GUIDE, SPRING 2
|
||||
| # 11 |
1C3-22253-50 1C32225350 1C32225350 |
COLLAR, DISTANCE
|
||||
| # 12 |
3JE-22475-00 3JE2247500 3JE2247500 |
SEAL, DUST
|
||||
| # 13 |
4EW-22474-00 4EW2247400 4EW2247400 |
SEAL, RING
|
||||
| # 14 |
5UN-22176-00 5UN2217600 5UN2217600 |
BEARING
|
||||
| # 15 |
5MV-22184-00 5MV2218400 5MV2218400 |
BUSH
|
||||
| # 16 |
5MV-22253-00 5MV2225300 5MV2225300 |
COLLAR, DISTANCE
|
||||
| # 17 |
5NY-22475-00 5NY2247500 5NY2247500 |
SEAL, DUST
|
||||
| # 18 |
5XE-22242-00 5XE2224201005XE2224200 |
BOLT 2
|
||||
| # 19 |
95602-10200 9560210200 9560210200 |
NUT, S/L FLANGE
|
||||
| # 20 |
92902-10200 9299010200009290210200 |
958-69527-00 WASHER, PLAIN
|
||||
| # 21 |
5NY-22241-00 5NY2224100 5NY2224100 |
BOLT 1
|
||||
| # 22 |
90185-10012 9018510012 9018510012 |
NUT, SELF-LOCKING
|
Yamaha WR450F
Cilinderinhoud: 450 Jaar: 2014 Model code 1DXA Kleur: DEEP PURPLISH BLUE SOLID E
