Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
33D-14611-00 33D1461100 33D1461100 |
PIPE, EXHAUST 1
|
||||
| # 2 |
33D-14613-00 33D1461300 33D1461300 |
GASKET, EXHAUST PIPE
|
||||
| # 3 |
95704-06500 9578006500009570406500 |
NUT, FLANGE(7NB)
|
||||
| # 4 |
33D-14620-00 33D1462000 33D1462000 |
EXHAUST PIPE ASSY 2
|
||||
| # 5 |
5PH-14714-00 5PH1471400 5PH1471400 |
GASKET, MUFFLER
|
||||
| # 6 |
2D1-14737-00 2D11473701002D11473700 |
DAMPER, MUFFLER
|
||||
| # 7 |
33D-14788-00 33D1478800 33D1478800 |
BAND, SILENCER
|
||||
| # 8 |
95024-08035 9502408035 9502408035 |
BOLT, FLANGE(3EF)
|
||||
| # 9 |
90105-08137 9010508137 9010508137 |
BOLT, FLANGE
|
||||
| # 10 |
90201-08061 9020108061 9020108061 |
WASHER, PLATE
|
||||
| # 11 |
5VY-14747-00 5VY1474700 5VY1474700 |
DAMPER, MUFFLER
|
||||
| # 12 |
90387-08081 9038708081 9038708081 |
COLLAR
|
||||
| # 13 |
33D-14750-20 33D1475020 33D1475020 |
SILENCER ASSY
|
Contact | |||
| # 14 |
33D-1476F-10 33D1476F10 33D1476F10 |
REINF. , 3
|
||||
| # 15 |
90267-48084 9026748084 9026748084 |
RIVET (S/M)
|
||||
| # 16 |
33D-1466G-10 33D1466G10 33D1466G10 |
BODY, SILENCER
|
||||
| # 17 |
2S2-1469A-10 2S21469A10 2S21469A10 |
FIBER
|
||||
| # 18 |
2S2-1469E-00 2S21469E00 2S21469E00 |
FIBER
|
||||
| # 19 |
2S2-1469F-00 2S21469F00 2S21469F00 |
FIBER
|
||||
| # 20 |
8GL-14714-00 8GL1471400 8GL1471400 |
GASKET, MUFFLER
|
||||
| # 21 |
90119-08133 9011908133 9011908133 |
BOLT, WITH WASHER
|
||||
| # 22 |
8GL-14789-00 8GL1478900 8GL1478900 |
BAND, SILENCER
|
||||
| # 23 |
95024-08025 9502408025 9502408025 |
BOLT, FLANGE(4GY)
|

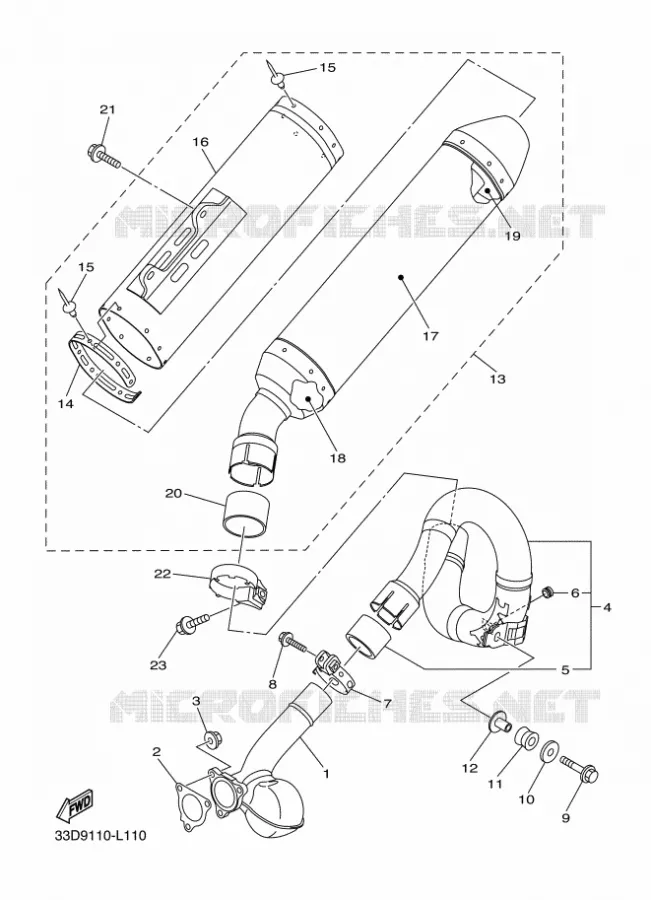

Yamaha YZ450F
Cilinderinhoud: 450 Jaar: 2012 Model code 33DA Kleur: DEEP PURPLISH BLUE SOLID E
