| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5TJ-15411-30 5TJ1541130 5TJ1541130 |
COVER, CRANKCASE 1
|
||||
| # 2 |
90340-27003 9034027003 9034027003 |
PLUG, STRAIGHT SCREW
|
||||
| # 3 |
93210-27370 9321027778009321027370 |
O-RING(1KT)
|
||||
| # 4 |
90340-14003 9034014003 9034014003 |
PLUG, STRAIGHT SCREW
|
||||
| # 5 |
93210-14369 9321014369 9321014369 |
O-RING (2H9)
|
||||
| # 6 |
3Y1-15363-10 3Y11536310 3Y11536310 |
PLUG, OIL
|
||||
| # 7 |
932101912300 932101912300932101912300 |
O-RING (646)
|
||||
| # 8 |
2S2-15451-00 2S21545100 2S21545100 |
GASKET, CRANKCASE COVER 1
|
||||
| # 9 |
99530-08016 9180816023009953008016 |
PIN, DOWEL(3XW)
|
||||
| # 10 |
93210-08003 9321008003 9321008003 |
O-RING
|
||||
| # 11 |
95022-06040 9502206040 9502206040 |
BOLT, FLANGE
|
||||
| # 12 |
95022-06030 9502206030 9502206030 |
BOLT, FLANGE
|
||||
| # 13 |
95022-06020 9502206020 9502206020 |
BOLT, FLANGE
|
||||
| # 14 |
5TJ-1549B-20 5TJ1549B20 5TJ1549B20 |
COVER ASSY 2
|
||||
| # 15 |
93210-58346 9321058346 9321058346 |
O-RING (1J7)
|
||||
| # 16 |
95022-06016 9502206016 9502206016 |
BOLT, FLANGE
|
||||
| # 17 |
2S2-15431-00 2S21543100 2S21543100 |
COVER, CRANKCASE 3
|
Contact | |||
| # 18 |
93101-14164 9310114164 9310114164 |
OIL SEAL(4GY)
|
||||
| # 19 |
90201-15701 9020115701 9020115701 |
WASHER (566)
|
||||
| # 20 |
99009-22500 9900922500 9900922500 |
CIRCLIP
|
||||
| # 21 |
5XC-15373-00 5XC1537300 5XC1537300 |
PIPE, BREATHER
|
||||
| # 22 |
2S2-15462-10 2S21546210 2S21546210 |
GASKET, CRANKCASE COVER 3
|
||||
| # 23 |
91812-16001 9181216001 9181216001 |
PIN, DOWEL(J38)
|
||||
| # 24 |
95022-06040 9502206040 9502206040 |
BOLT, FLANGE
|
||||
| # 25 |
95022-06030 9502206030 9502206030 |
BOLT, FLANGE
|
||||
| # 26 |
5TA-15415-20 5TA1541520 5TA1541520 |
COVER, GENERATOR
|
||||
| # 27 |
5TA-15453-00 5TA1545300 5TA1545300 |
GASKET
|
||||
| # 28 |
99530-08016 9180816023009953008016 |
PIN, DOWEL(3XW)
|
||||
| # 29 |
95022-06030 9502206030 9502206030 |
BOLT, FLANGE
|
||||
| # 30 |
95022-06040 9502206040 9502206040 |
BOLT, FLANGE
|
||||
| # 31 |
95022-06080 9502206080 9502206080 |
BOLT, FLANGE
|
||||
| # 32 |
583-13113-00 5831311300 5831311300 |
SEAT, CHECK BALL
|
||||
| # 33 |
93503-08007 9350308007 9350308007 |
BALL
|
||||
| # 34 |
90501-043E0 90501043E0 90501043E0 |
SPRING, COMPRESSION(1VJ)
|

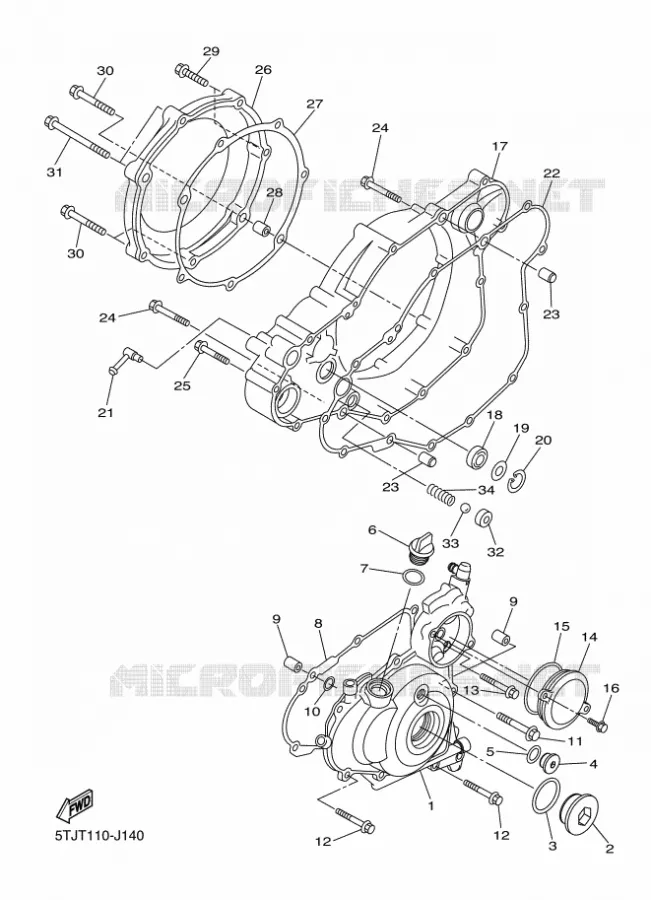

Yamaha WR450F
Cilinderinhoud: 450 Jaar: 2011 Model code 1HB3 Kleur: DEEP PURPLISH BLUE SOLID E
