Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5TJ-14101-L0 5TJ14101L0 5TJ14101L0 |
CARBURETOR ASSY 1
|
||||
| # 2 |
5JG-14959-00 5JG1495900 5JG1495900 |
GASKET
|
||||
| # 3 |
91316-04012 9131704012009131604012 |
BOLT, SOCKET
|
||||
| # 4 |
688-14592-00 9858004008006881459200 |
SCREW, PAN HEAD (713)
|
||||
| # 5 |
90202-08045 9020208045 9020208045 |
WASHER, PLATE
|
||||
| # 6 |
5JG-14951-00 5JG1495100 5JG1495100 |
WASHER
|
||||
| # 7 |
5JG-14522-00 5JG1452209005JG1452200 |
SCREW, ADJUST
|
||||
| # 8 |
2S2-14388-00 2S21438800 2S21438800 |
VALVE, VACUUM CONTROL
|
||||
| # 9 |
3TJ-14267-40 3TJ1426740 3TJ1426740 |
ROLLER
|
||||
| # 10 |
5JG-14546-01 5JG1454601 5JG1454601 |
VALVE, NEEDLE
|
||||
| # 11 |
4FN-14997-00 4FN1499700 4FN1499700 |
SEAL
|
||||
| # 12 |
5TJ-14916-91 5TJ1491691 5TJ1491691 |
NEEDLE (#DUQ-K)
|
||||
| # 12 |
5TJ-14916-9M 5TJ149169M 5TJ149169M |
NEEDLE
|
||||
| # 12 |
5TJ-14916-9N 5TJ149169N 5TJ149169N |
NEEDLE
|
||||
| # 12 |
5TJ-14916-9P 5TJ149169P 5TJ149169P |
NEEDLE (#DUP-K)
|
||||
| # 12 |
5TJ-14916-9R 5TJ149169R 5TJ149169R |
NEEDLE (#DUR-K)
|
||||
| # 12 |
5TJ-14916-9S 5TJ149169S 5TJ149169S |
NEEDLE (#DUS-K)
|
||||
| # 12 |
5TJ-14916-9T 5TJ149169T 5TJ149169T |
NEEDLE (#DUT-K)
|
||||
| # 12 |
5TJ-14916-LU 5TJ14916LU 5TJ14916LU |
NEEDLE
|
||||
| # 13 |
3TJ-14159-40 3TJ1415940 3TJ1415940 |
CLIP
|
||||
| # 14 |
5JG-14521-00 5JG1452100 5JG1452100 |
SCREW, ADJUST
|
||||
| # 15 |
5JG-14275-00 5JG1427500 5JG1427500 |
SPRING
|
||||
| # 16 |
5JG-14264-00 5JG1426400 5JG1426400 |
COLLAR
|
||||
| # 17 |
5TJ-14947-00 5TJ1494700 5TJ1494700 |
JET, NEEDLE
|
||||
| # 18 |
4MX-14943-39 4MX1494339 4MX1494339 |
JET, MAIN (#160)
|
||||
| # 18 |
4MX-14943-40 4MX1494340 4MX1494340 |
JET, MAIN (#165)
|
||||
| # 18 |
4MX-14943-41 4MX1494341 4MX1494341 |
JET, MAIN (#170)
|
||||
| # 18 |
4MX-14943-42 4MX1494342 4MX1494342 |
JET, MAIN (#175)
|
||||
| # 18 |
4MX-14943-43 4MX1494343 4MX1494343 |
JET, MAIN (#180)
|
||||
| # 18 |
4MX-14943-44 4MX1494344 4MX1494344 |
JET, MAIN (#185)
|
||||
| # 18 |
4MX-14943-90 4MX1494390 4MX1494390 |
JET, MAIN (#162)
|
||||
| # 18 |
4MX-14943-91 4MX1494391 4MX1494391 |
JET, MAIN (#168)
|
||||
| # 18 |
4MX-14943-92 4MX1494392 4MX1494392 |
JET, MAIN (#172)
|
||||
| # 18 |
4MX-14943-93 4MX1494393 4MX1494393 |
JET, MAIN (#178)
|
||||
| # 18 |
4MX-14943-94 4MX1494394 4MX1494394 |
JET, MAIN (#182)
|
||||
| # 19 |
4MX-14948-05 4MX1494805 4MX1494805 |
JET, PILOT (#45)
|
||||
| # 19 |
4MX-14948-06 4MX1494806 4MX1494806 |
JET, PILOT (#48)
|
||||
| # 19 |
4MX-14948-07 4MX1494807 4MX1494807 |
JET, PILOT (#50)
|
||||
| # 19 |
4MX-14948-08 4MX1494808 4MX1494808 |
JET, PILOT (#52)
|
||||
| # 19 |
4MX-14948-09 4MX1494809 4MX1494809 |
JET, PILOT (#55)
|
||||
| # 20 |
3TJ-1494F-11 3TJ1494F11 3TJ1494F11 |
JET 1 (#60)
|
||||
| # 20 |
3TJ-1494F-12 3TJ1494F12 3TJ1494F12 |
JET
|
||||
| # 20 |
3TJ-1494F-13 3TJ1494F13 3TJ1494F13 |
JET
|
||||
| # 20 |
3TJ-1494F-14 3TJ1494F14 3TJ1494F14 |
JET
|
||||
| # 20 |
3TJ-1494F-15 3TJ1494F15 3TJ1494F15 |
JET
|
||||
| # 21 |
5TA-14943-15 5TA1494315 5TA1494315 |
JET, MAIN (#70)
|
||||
| # 22 |
4JT-1494F-01 4JT1494F01 4JT1494F01 |
JET (#35)
|
||||
| # 22 |
4JT-1494F-03 4JT1494F03 4JT1494F03 |
JET (#40)
|
||||
| # 22 |
4JT-1494F-05 4JT1494F05 4JT1494F05 |
JET
|
||||
| # 22 |
4JT-1494F-07 4JT1494F07 4JT1494F07 |
JET (#50)
|
||||
| # 22 |
4JT-1494F-09 4JT1494F09 4JT1494F09 |
JET (#55)
|
||||
| # 22 |
4JT-1494F-11 4JT1494F11 4JT1494F11 |
JET (#60)
|
||||
| # 22 |
4JT-1494F-13 4JT1494F13 4JT1494F13 |
JET (#65)
|
||||
| # 23 |
5NL-14105-00 5NL1410500 5NL1410500 |
PILOT SCREW SET
|
||||
| # 24 |
4SR-14985-00 4SR1498500 4SR1498500 |
FLOAT
|
||||
| # 25 |
676-14548-00 6631454800006761454800 |
PIN, ARM
|
||||
| # 26 |
4MX-14392-00 4MX1439200 4MX1439200 |
VALVE, NEEDLE
|
||||
| # 27 |
633-14159-00 6331415900 6331415900 |
CLIP
|
||||
| # 28 |
5JG-14984-00 5JG1498400 5JG1498400 |
GASKET, FLOAT CHAMBER
|
||||
| # 29 |
3TJ-14191-40 3TJ1419140 3TJ1419140 |
PLUG, DRAIN
|
||||
| # 30 |
3TJ-14293-40 3TJ1429340 3TJ1429340 |
COVER 1
|
||||
| # 31 |
5JG-14940-17 5JG1494017 5JG1494017 |
DIAPHRAGM ASSY
|
||||
| # 31 |
5JG-14940-18 5JG1494018 5JG1494018 |
DIAPHRAGM ASSY
|
||||
| # 31 |
5JG-14940-19 5JG1494019 5JG1494019 |
DIAPHRAGM ASSY
|
||||
| # 32 |
3TJ-14536-40 3TJ1453640 3TJ1453640 |
GASKET
|
||||
| # 33 |
5GS-14933-40 5GS1493340 5GS1493340 |
SPRING, DIAPHRAGM
|
||||
| # 34 |
6H4-14561-00 6H41456100 6H41456100 |
O-RING
|
||||
| # 35 |
5XC-14171-00 5XC1417100 5XC1417100 |
PLUNGER, STARTER
|
||||
| # 36 |
5TA-14371-00 5TA1437100 5TA1437100 |
PLUNGER, STARTER
|
||||
| # 37 |
5TA-14335-00 5TA1433500 5TA1433500 |
SPRING, PLUNGER
|
||||
| # 38 |
5TA-14991-00 5TA1499100 5TA1499100 |
SCREW
|
||||
| # 39 |
2S2-14208-00 2S21420800 2S21420800 |
LEVER COMP. 1
|
||||
| # 40 |
5TA-14155-00 5TA1415500 5TA1415500 |
GUIDE, CABLE
|
||||
| # 41 |
5TA-14997-00 5TA1499700 5TA1499700 |
SEAL
|
||||
| # 42 |
5JG-14379-00 5JG1437900 5JG1437900 |
ROD, STARTER
|
||||
| # 43 |
5XC-14922-00 5XC1492200 5XC1492200 |
SCREW, THROTTLE
|
||||
| # 44 |
90201-08410 9020108410 9020108410 |
WASHER, PLATE(3TJ)
|
||||
| # 45 |
5TA-14934-00 5TA1493400 5TA1493400 |
SPRING, THROTTLE STOP
|
||||
| # 46 |
5XC-85885-00 5XC8588500 5XC8588500 |
THROTTLE SENSOR ASSY
|
||||
| # 47 |
5NX-14562-00 33D1456200005NX1456200 |
O-RING
|
||||
| # 48 |
5NX-14216-00 1DX1421600005NX1421600 |
SCREW
|
||||
| # 49 |
4MX-14561-00 4MX1456100 4MX1456100 |
O-RING
|
||||
| # 50 |
4MX-14115-00 4MX1411500 4MX1411500 |
PLUG, SCREW
|
||||
| # 51 |
3TJ-14137-40 3TJ1413740 3TJ1413740 |
CLIP
|
||||
| # 52 |
5BE-14146-00 5BE1414600 5BE1414600 |
PLATE
|
||||
| # 53 |
5TA-14261-00 5TA1426100 5TA1426100 |
HOLDER
|
||||
| # 54 |
5UL-14196-00 5UL1419600 5UL1419600 |
PIPE
|
||||
| # 55 |
5TA-14197-00 5TA1419700 5TA1419700 |
PIPE
|
||||
| # 56 |
5TJ-14987-00 5TJ1498700 5TJ1498700 |
HOSE
|
||||
| # 57 |
5JG-14346-00 5JG1434600 5JG1434600 |
PLATE
|
||||
| # 58 |
5JG-14565-00 5JG1456500 5JG1456500 |
SCREW
|
||||
| # 59 |
5JG-14531-00 5JG1453100 5JG1453100 |
SPRING, ADJUST SCREW
|
||||
| # 60 |
5TJ-14591-20 5TJ1459129005TJ1459120 |
SCREW
|
||||
| # 61 |
5PA-14146-00 5PA1414600 5PA1414600 |
PLATE
|
||||
| # 62 |
5GS-14940-00 5GS1494000 5GS1494000 |
DIAPHRAGM ASSY
|
||||
| # 63 |
5GS-14958-00 5GS1495800 5GS1495800 |
COVER, DIAPHRAGM
|
||||
| # 64 |
5GS-14933-00 5GS1493300 5GS1493300 |
SPRING, DIAPHRAGM
|
||||
| # 65 |
97602-04110 9760204110 9760204110 |
SCREW, PAN HEAD WITH WASHER
|
||||
| # 66 |
3TJ-14564-40 3TJ1456440 3TJ1456440 |
O-RING
|
||||
| # 67 |
5UM-14197-00 5UM1419700 5UM1419700 |
PIPE
|

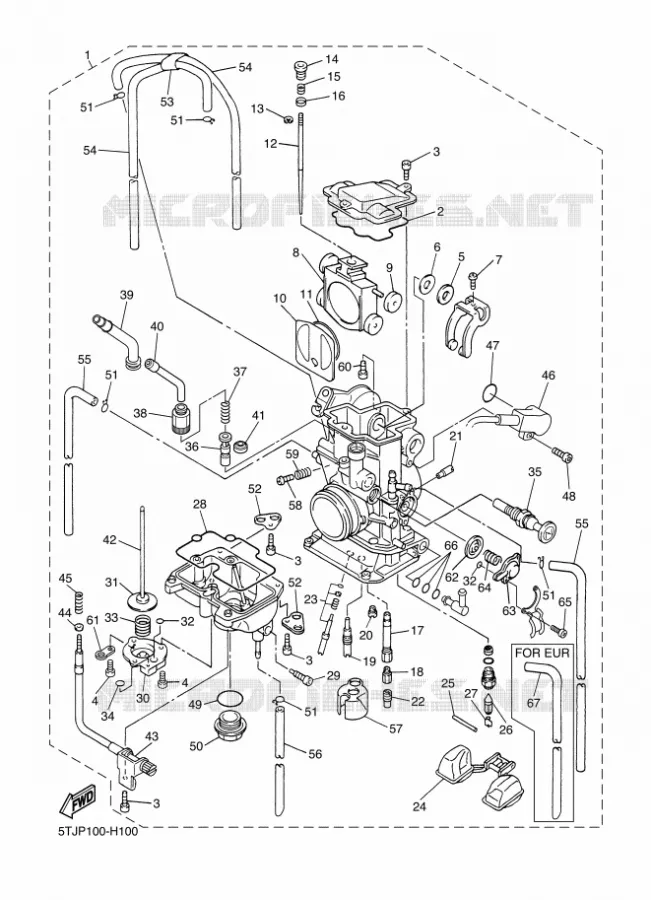

Yamaha WR450F
Cilinderinhoud: 450 Jaar: 2010 Model code 5TJV Kleur: DEEP PURPLISH BLUE SOLID E
