| # 1 |
BL1-F1511-00 BL1F151100 BL1F151100 |
FENDER, FRONT
|
||||
| # 2 |
90167-05X07 9016705X07 9016705X07 |
SCREW, TAPPING
|
||||
| # 3 |
BL1-F1513-00-P0 BL1F151300P0 BL1F151300P0 |
STAY FENDER 1 MDNM1
|
||||
| # 4 |
90183-05042 9018305042 9018305042 |
NUT, SPRING(1YT)
|
||||
| # 5 |
BL1-F1514-00-P0 BL1F151400P0 BL1F151400P0 |
STAY FENDER 2 MDNM1
|
||||
| # 6 |
90183-05042 9018305042 9018305042 |
NUT, SPRING(1YT)
|
||||
| # 7 |
90179-06055 9017906055 9017906055 |
NUT
|
||||
| # 8 |
90109-068A4 90109068A4 90109068A4 |
BOLT
|
||||
| # 9 |
95027-06035 9502706035 9502706035 |
BOLT, SMALL FLANGE
|
||||
| # 10 |
BL1-F113J-00 BL1F113J00 BL1F113J00 |
BRKT REFLECTOR
|
||||
| # 11 |
BL1-F113K-00 BL1F113K00 BL1F113K00 |
BRKT REFLECTOR
|
||||
| # 12 |
2FC-H5111-00 2FCH511100 2FCH511100 |
REFLECTOR, FRONT 1
|
||||
| # 13 |
95707-05500 9570705500 9570705500 |
NUT, FLANGE(3GM)
|
||||
| # 14 |
B74-F1651-00 B74F165100 B74F165100 |
COVER, REAR FENDER
|
||||
| # 15 |
90183-05042 9018305042 9018305042 |
NUT, SPRING(1YT)
|
||||
| # 16 |
90269-06001 9026906001 9026906001 |
RIVET
|
||||
| # 17 |
B74-F172A-00 B74F172A00 B74F172A00 |
PANEL 1
|
||||
| # 18 |
90167-05X06 9016705X06 9016705X06 |
SCREW, TAPPING
|
||||
| # 19 |
90183-05042 9018305042 9018305042 |
NUT, SPRING(1YT)
|
||||
| # 20 |
90109-06X18 9010906X18 9010906X18 |
BOLT
|
||||
| # 21 |
B74-F172F-00 B74F172F00 B74F172F00 |
PANEL 2
|
||||
| # 22 |
90167-05X06 9016705X06 9016705X06 |
SCREW, TAPPING
|
||||
| # 23 |
90183-05042 9018305042 9018305042 |
NUT, SPRING(1YT)
|
||||
| # 24 |
90109-06X18 9010906X18 9010906X18 |
BOLT
|
||||
| # 25 |
B74-F1611-00 B74F161100 B74F161100 |
FENDER, REAR
|
||||
| # 26 |
90109-06X18 9010906X18 9010906X18 |
BOLT
|
||||
| # 27 |
BG6-H4550-00 BG6H455000 BG6H455000 |
LICENCE BRACKET AS
|
||||
| # 28 |
90201-06088 9020106088 9020106088 |
WASHER, PLATE
|
||||
| # 29 |
95602-06100 9561706100009560206100 |
NUT, SELF-LOCKING
|
||||
| # 30 |
4G0-21639-00 9033807018004G02163900 |
PLOT
|

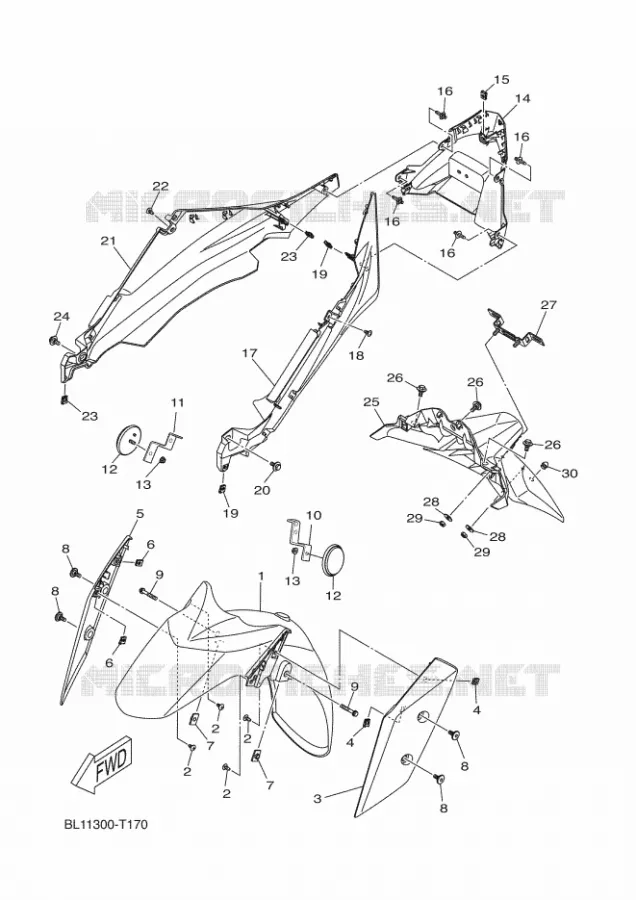

Yamaha YP400RA
Cilinderinhoud: 400 Jaar: 2018 Model code BL11 Kleur: MAT DARK GRAY METALLIC 1 (MDNM1)
