| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
1SD-F4730-20 1SDF473021001SDF473020 |
DOUBLE SEAT ASSY
|
||||
| # 2 |
1SD-F4718-10 1SDF471810 1SDF471810 |
BRKT
|
||||
| # 3 |
1SD-F4739-00 1SDF473900 1SDF473900 |
BOLT SEAT FITTING
|
||||
| # 4 |
1SD-F4723-00 1SDF472300 1SDF472300 |
DAMPER, SEAT
|
||||
| # 5 |
1SD-F4731-00 1SDF473100 1SDF473100 |
COVER, SEAT
|
||||
| # 6 |
1SD-F4790-00 1SDF479000 1SDF479000 |
SEAT BACK ASSY
|
||||
| # 7 |
95807-06025 9581706025009580706025 |
BOLT, FLANGE
|
||||
| # 8 |
1SD-F4737-00 1SDF473700 1SDF473700 |
DAMPER, SEAT
|
||||
| # 9 |
1SD-F4769-00 1SDF476900 1SDF476900 |
HINGE, SEAT
|
||||
| # 10 |
90109-06214 9010906214 9010906214 |
BOLT
|
||||
| # 11 |
90202-10X02 9020210X02 9020210X02 |
WASHER, PLATE
|
||||
| # 12 |
95812-06014 9581206014 9581206014 |
BOLT, FLANGE
|
||||
| # 13 |
1SD-F478G-00 1SDF478G00 1SDF478G00 |
STOPPER
|
||||
| # 14 |
1SD-F474E-00 1SDF474E00 1SDF474E00 |
ARM
|
||||
| # 15 |
5RU-24768-00 5RU2476800 5RU2476800 |
STOPPER
|
||||
| # 16 |
5HT-F4780-10 5HTF478010 5HTF478010 |
SEAT LOCK ASSY
|
||||
| # 17 |
90464-12X01 9046412X01 9046412X01 |
CLAMP
|
||||
| # 18 |
95822-06012 9581206012009582206012 |
BOLT, FLANGE
|
||||
| # 19 |
1SD-F478E-10 1SDF478E10 1SDF478E10 |
CABLE SEAT LOCK
|
||||
| # 20 |
1SD-F471A-00 1SDF471A00 1SDF471A00 |
STAY SEAT
|
||||
| # 21 |
97507-05510 9750705510 9750705510 |
BOLT, W/ PLAIN
|
||||
| # 22 |
1SD-F473R-00 1SDF473R01001SDF473R00 |
BOX 1
|
||||
| # 23 |
1SD-F476V-00 1SDF476V00 1SDF476V00 |
PROTECTOR, 2
|
||||
| # 24 |
1SD-2173M-00 1SD2173M00 1SD2173M00 |
SEAL 3
|
||||
| # 25 |
1SD-F2898-01 1SDF289810001SDF289801 |
INSULATOR HEAT
|
||||
| # 26 |
37P-H4352-00 37PH435200 37PH435200 |
GROMMET
|
||||
| # 27 |
90520-06X00 9052006X00 9052006X00 |
DAMPER, PLATE
|
||||
| # 28 |
90109-06X05 9010906X05 9010906X05 |
BOLT
|
||||
| # 29 |
1SD-F4747-00 1SDF474700 1SDF474700 |
DAMPER
|
||||
| # 30 |
1SD-F474A-00-P6 1SDF474A00P6 1SDF474A00P6 |
ASSIST, GRIP MBL2
|
Contact | |||
| # 31 |
90183-05042 9018305042 9018305042 |
NUT, SPRING(1YT)
|
||||
| # 32 |
1SD-F474W-00-P6 1SDF474W00P6 1SDF474W00P6 |
ASSIST, GRIP 2 MBL2
|
||||
| # 33 |
90183-05042 9018305042 9018305042 |
NUT, SPRING(1YT)
|
||||
| # 34 |
95817-08025 9581708025 9581708025 |
BOLT, FLANGE(4LN)
|
||||
| # 35 |
92907-08200 9290708200 9290708200 |
WASHER(6TC)
|
||||
| # 36 |
90387-09X04 9038709X04 9038709X04 |
COLLAR
|
Contact | |||
| # 37 |
1SD-F3469-00 1SDF346900 1SDF346900 |
CAP, BOLT
|
||||
| # 38 |
1SD-F8100-00 1SDF810000 1SDF810000 |
TOOL KIT
|
||||
| # 39 |
1B9-F8175-00 1B9F817500 1B9F817500 |
HOLDER, TOOL
|
||||
| # 40 |
1SD-F8199-H1 1SDF8199H1 1SDF8199H1 |
O/M YP400R/RA '14
|
||||
| # 40 |
1SD-F8199-S1 1SDF8199S1 1SDF8199S1 |
O/M YP400R/RA '14
|
||||
| # 41 |
5DN-F415A-10 5DNF415A10 5DNF415A10 |
LABEL CAUTION
|

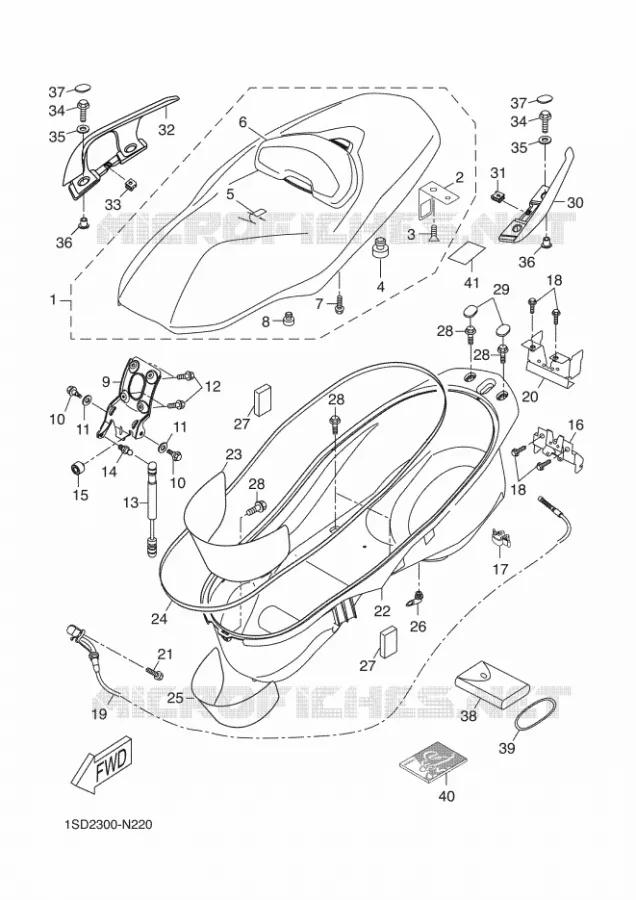

Yamaha YP400R
Cilinderinhoud: 400 Jaar: 2014 Model code 1SD4 Kleur: MAT GRAY METALLIC 3
