Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
1UY-13300-00 1UY1330000 1UY1330000 |
OIL PUMP ASSY
|
||||
| # 2 |
1UY-13326-00 1UY1332600 1UY1332600 |
GEAR, PUMP DRIVEN 2
|
||||
| # 3 |
93603-12030 9360312030 9360312030 |
PIN, DOWEL (137)
|
||||
| # 4 |
93603-07073 9360307073 9360307073 |
PIN, DOWEL
|
||||
| # 5 |
90151-06010 9015106005009015106010 |
SCREW, CROSSRECESS (8G6)
|
||||
| # 6 |
3GD-13329-00 3GD1332900 3GD1332900 |
GASKET, PUMP COVER
|
||||
| # 7 |
98707-06030 9870706030 9870706030 |
SCREW, FLAT
|
||||
| # 8 |
90151-06058 9870706030009015106058 |
SCREW, FLAT
|
||||
| # 9 |
2XK-13416-00 2XK1341600 2XK1341600 |
PIPE, OIL 1
|
||||
| # 10 |
51Y-13411-00 5YPE3411000051Y1341100 |
STRAINER, OIL
|
||||
| # 11 |
90501-18576 9050118576 9050118576 |
SPRING, COMPRESSION (3Y1)
|
||||
| # 12 |
30X-15351-00 4HC15351000030X1535100 |
PLUG, DRAIN
|
||||
| # 13 |
93210-35520 9321035512009321035520 |
O-RING (5X4)
|
||||
| # 14 |
1UY-13440-02 1UY1344002 1UY1344002 |
ELEMENT ASSY, OIL CLEANER
|
||||
| # 15 |
4KB-13447-00 4KB1344700 4KB1344700 |
COVER, OIL ELEMENT
|
||||
| # 16 |
1YW-13497-00 1YW1349700 1YW1349700 |
PLUG
|
||||
| # 17 |
90501-082E3 90501082E3 90501082E3 |
SPRING, COMPRESSION(1YW)
|
||||
| # 18 |
92907-06600 9290706600 9290706600 |
WASHER(6TA)
|
||||
| # 19 |
93420-13073 9342013073 9342013073 |
CIRCLIP(1YW)
|
||||
| # 20 |
51Y-13132-50 1S313132000051Y1313250 |
JOINT
|
||||
| # 21 |
90430-14043 9043014043 9043014043 |
GASKET 256131670000
|
||||
| # 22 |
93210-54452 9321054452 9321054452 |
O-RING (4X7)
|
||||
| # 23 |
90110-06224 9011006138009011006224 |
BOLT, HEXAGON SOCKET HEAD(1VJ)
|
||||
| # 24 |
4KB-13171-00 4KB1317100 4KB1317100 |
PIPE, DELIVERY 2
|
||||
| # 25 |
90430-08119 9020108087009043008119 |
WASHER, PLATE 3411117500
|
||||
| # 26 |
90401-08038 9040108006009040108038 |
BOLT, UNION
|
||||
| # 27 |
4KB-13324-00 4KB1332400 4KB1332400 |
GEAR, PUMP DRIVE
|
||||
| # 28 |
4KB-13470-00 4KB1347000 4KB1347000 |
OIL COOLER ASSY
|
||||
| # 29 |
4KB-13464-00 4KB1346400 4KB1346400 |
HOSE, OIL 1
|
||||
| # 30 |
4KB-13465-00 4KB1346500 4KB1346500 |
HOSE, OIL 2
|
Contact | |||
| # 31 |
90480-15235 9048015235 9048015235 |
GROMMET
|
||||
| # 32 |
90387-060A7 90387061130090387060A7 |
COLLAR
|
||||
| # 33 |
90209-06174 9020906012009020906174 |
WASHER
|
||||
| # 34 |
95807-06020 9581706020009580706020 |
BOLT, FLANGE
|
||||
| # 35 |
93210-12152 9321012152 9321012152 |
O-RING (256)
|
||||
| # 36 |
93612-16254 9361216254 9361216254 |
PIN, DOWEL(4XL)
|
||||
| # 37 |
4KB-13161-01 4KB1316101 4KB1316101 |
PIPE, DELIVERY 1
|
||||
| # 38 |
90430-08119 9020108087009043008119 |
WASHER, PLATE 3411117500
|
||||
| # 39 |
90401-08117 9040108004009040108117 |
BOLT, UNION
|
||||
| # 40 |
4KB-13181-00 4KB1318100 4KB1318100 |
DURITE, REFOULEMENT 3
|
Contact | |||
| # 41 |
95027-06012 9502706012 9502706012 |
BOLT, FLANGE(4MY)
|
||||
| # 42 |
93210-06632 9321006632 9321006632 |
O-RING (26H)
|

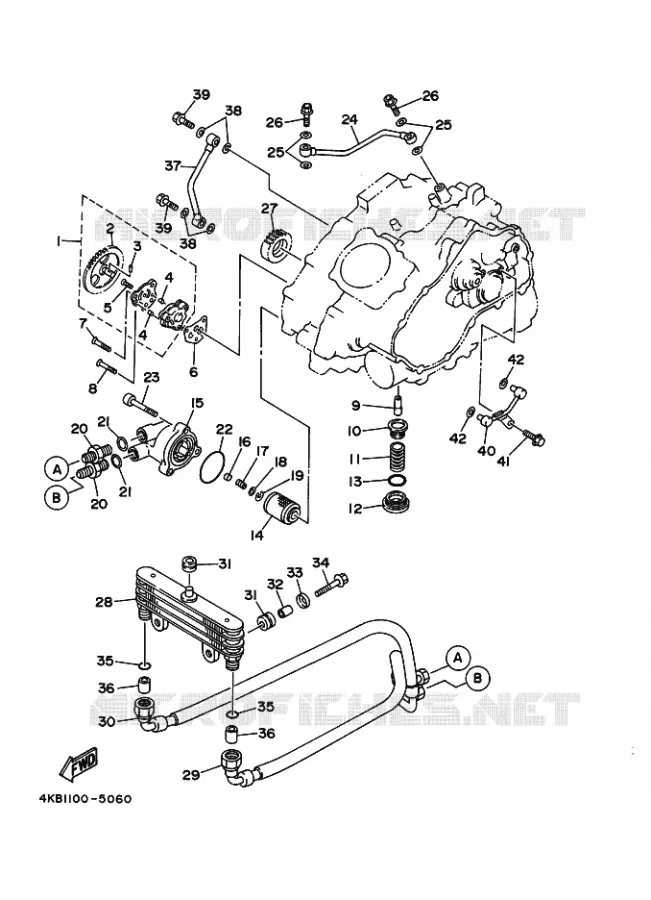

Yamaha YFM350FW-X YFM35FXK
Cilinderinhoud: 350 Jaar: 1998 Model code 4KB9 Kleur: PASTEL DEEP GREEN
