| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
BX9-F3100-00 BX9F310000 BX9F310000 |
FRONT FORK ASSY
|
||||
| # 2 |
BX9-F3126-00 BX9F312600 BX9F312600 |
TUBE, OUTER (L.H)
|
||||
| # 3 |
BX9-F3110-00 BX9F311000 BX9F311000 |
INNER TUBE COMP.1
|
||||
| # 4 |
BX9-F3170-00 BX9F317000 BX9F317000 |
CYLINDER COMP., FR
|
||||
| # 5 |
2CM-F3166-00 2CMF316600 2CMF316600 |
SPACER, OIL LOCK
|
||||
| # 6 |
BX9-F3136-00 BX9F313600 BX9F313600 |
TUBE, OUTER 2
|
||||
| # 7 |
BX9-F332L-00 BX9F332L00 BX9F332L00 |
TUBE, INNER
|
||||
| # 8 |
1B7-23171-00 1B72317100 1B72317100 |
PISTON, FRONT FORK
|
||||
| # 9 |
4HC-23125-20 4HC2312520 4HC2312520 |
METAL, SLIDE 1
|
||||
| # 10 |
22W-23146-L0 22W23146L0 22W23146L0 |
WASHER, OIL SEAL
|
||||
| # 11 |
4YL-F3145-00 4YLF314500 4YLF314500 |
OIL SEAL
|
||||
| # 12 |
22W-23153-L0 22W23153L0 22W23153L0 |
RING, SNAP
|
||||
| # 13 |
4YL-F3144-00 4YLF314400 4YLF314400 |
SEAL, DUST
|
||||
| # 14 |
509-F3158-L0 509F3158L0 509F3158L0 |
GASKET
|
||||
| # 15 |
31B-F3181-00 31BF318100 31BF318100 |
BOLT, HEXAGON SOCK
|
||||
| # 16 |
BX9-F3141-00 BX9F314100 BX9F314100 |
SPRING, FRONT FORK
|
||||
| # 17 |
2CM-F3111-00 2CMF311100 2CMF311100 |
BOLT, CAP
|
||||
| # 18 |
2CM-F3147-00 2CMF314700 2CMF314700 |
O-RING
|
||||
| # 19 |
BX9-F3340-00 BX9F334000 BX9F334000 |
UNDER BRACKET COMP
|
||||
| # 20 |
90201-48801 9020148801 9020148801 |
WASHER, PLATE
|
||||
| # 21 |
BX9-F3462-00 BX9F346200 BX9F346200 |
SEAL, DUST
|
||||
| # 22 |
93332-00086 9333200086 9333200086 |
BEARING
|
||||
| # 23 |
91812-16807 9361216254009181216807 |
PIN, DOWEL(4XL)
|
||||
| # 24 |
4D0-F3346-00 4D0F334600 4D0F334600 |
BOLT 1
|
||||
| # 25 |
BX9-F3101-00 BX9F310100 BX9F310100 |
FRONT FORK ASSY
|
||||
| # 26 |
BX9-F3177-00 BX9F317700 BX9F317700 |
TUBE, OUTER 3
|
||||
| # 27 |
BX9-F3110-00 BX9F311000 BX9F311000 |
INNER TUBE COMP.1
|
||||
| # 28 |
BX9-F3170-00 BX9F317000 BX9F317000 |
CYLINDER COMP., FR
|
||||
| # 29 |
2CM-F3166-00 2CMF316600 2CMF316600 |
SPACER, OIL LOCK
|
||||
| # 30 |
BX9-F317B-00 BX9F317B00 BX9F317B00 |
TUBE, OUTER 4
|
||||
| # 31 |
BX9-F332L-00 BX9F332L00 BX9F332L00 |
TUBE, INNER
|
||||
| # 32 |
1B7-23171-00 1B72317100 1B72317100 |
PISTON, FRONT FORK
|
||||
| # 33 |
4HC-23125-20 4HC2312520 4HC2312520 |
METAL, SLIDE 1
|
||||
| # 34 |
22W-23146-L0 22W23146L0 22W23146L0 |
WASHER, OIL SEAL
|
||||
| # 35 |
4YL-F3145-00 4YLF314500 4YLF314500 |
OIL SEAL
|
||||
| # 36 |
22W-23153-L0 22W23153L0 22W23153L0 |
RING, SNAP
|
||||
| # 37 |
4YL-F3144-00 4YLF314400 4YLF314400 |
SEAL, DUST
|
||||
| # 38 |
509-F3158-L0 509F3158L0 509F3158L0 |
GASKET
|
||||
| # 39 |
31B-F3181-00 31BF318100 31BF318100 |
BOLT, HEXAGON SOCK
|
||||
| # 40 |
BX9-F3141-00 BX9F314100 BX9F314100 |
SPRING, FRONT FORK
|
||||
| # 41 |
2CM-F3111-00 2CMF311100 2CMF311100 |
BOLT, CAP
|
||||
| # 42 |
2CM-F3147-00 2CMF314700 2CMF314700 |
O-RING
|
||||
| # 43 |
BX9-F3380-00 BX9F338000 BX9F338000 |
UNDER BRACKET COMP
|
||||
| # 44 |
90201-48801 9020148801 9020148801 |
WASHER, PLATE
|
||||
| # 45 |
BX9-F3462-00 BX9F346200 BX9F346200 |
SEAL, DUST
|
||||
| # 46 |
93332-00086 9333200086 9333200086 |
BEARING
|
||||
| # 47 |
91812-16807 9361216254009181216807 |
PIN, DOWEL(4XL)
|
||||
| # 48 |
4D0-F3346-00 4D0F334600 4D0F334600 |
BOLT 1
|

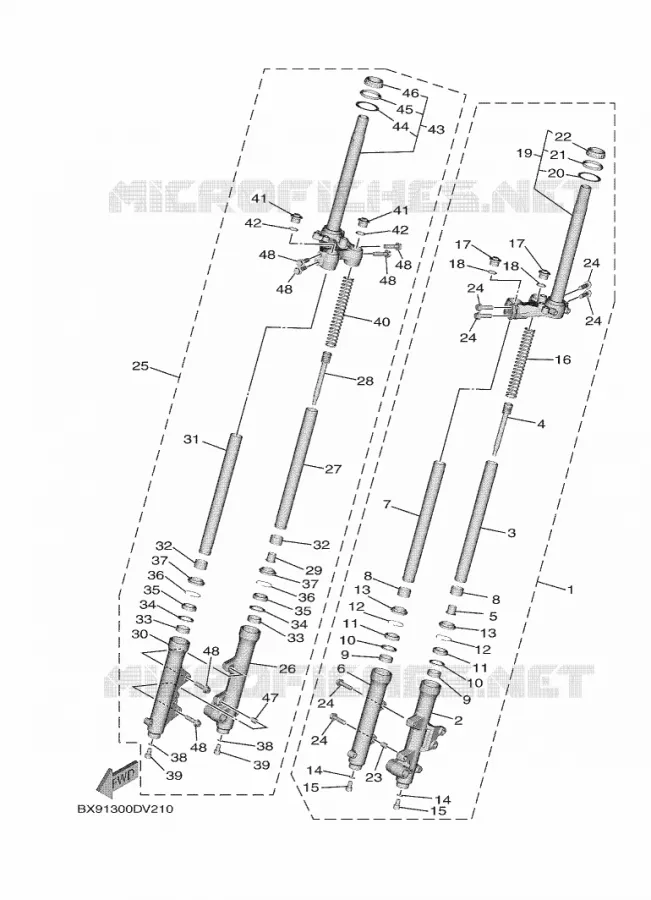

Yamaha MWD300
Cilinderinhoud: 300 Jaar: 2021 Model code BED2 Kleur: MAT DARK GRAY METALLIC A
