| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
B74-H4710-00 B74H471000 B74H471000 |
TAILLIGHT UNIT ASS
|
||||
| # 2 |
97702-40612 9778040112009770240612 |
SCREW, PAN HEAD TAPPING
|
||||
| # 3 |
1YT-83311-00 2DPH471400001YT8331100 |
BULB (12V-10W)
|
||||
| # 4 |
90183-05807 9018305042009018305807 |
NUT, SPRING(1YT)
|
||||
| # 5 |
90109-06887 9010906887 9010906887 |
BOLT
|
||||
| # 6 |
97702-50012 9770750012009770250012 |
SCREW, TRUSS TAP.
|
||||
| # 7 |
B74-H4730-00 B74H473000 B74H473000 |
TAILLIGHT UNIT ASS
|
||||
| # 8 |
97702-40612 9778040112009770240612 |
SCREW, PAN HEAD TAPPING
|
||||
| # 9 |
1YT-83311-00 2DPH471400001YT8331100 |
BULB (12V-10W)
|
||||
| # 10 |
90183-05807 9018305042009018305807 |
NUT, SPRING(1YT)
|
||||
| # 11 |
90109-06887 9010906887 9010906887 |
BOLT
|
||||
| # 12 |
97702-50016 9016705077009770250016 |
SCREW, TAPPING(4TV)
|
||||
| # 13 |
97702-50012 9770750012009770250012 |
SCREW, TRUSS TAP.
|
||||
| # 14 |
90464-16006 9046416006 9046416006 |
CLAMP
|
||||
| # 15 |
3C1-H5130-00 3C1H513000 3C1H513000 |
REAR REFLECTOR ASS
|
||||
| # 16 |
95702-05500 9570205500 9570205500 |
NUT, FLANGE
|
||||
| # 17 |
B74-H4740-00 B74H474000 B74H474000 |
LICENCE LIGHT ASSY
|
||||
| # 18 |
1WD-H4744-00 1WDH474400 |
BULB (12V-5W) T10
|
Contact | |||
| # 19 |
B74-H4547-00 B74H454700 B74H454700 |
CORD, LICENCE LIGH
|
||||
| # 20 |
B74-H454J-00 B74H454J00 B74H454J00 |
CLAMP, CORD
|
||||
| # 21 |
1WD-H4726-00 1WDH472600 1WDH472600 |
SCREW
|
||||
| # 22 |
92017-05012 9201705012 9201705012 |
BOLT, BUTTON
|
||||
| # 23 |
B74-H4748-00 B74H474800 B74H474800 |
NUT, SPECIAL
|

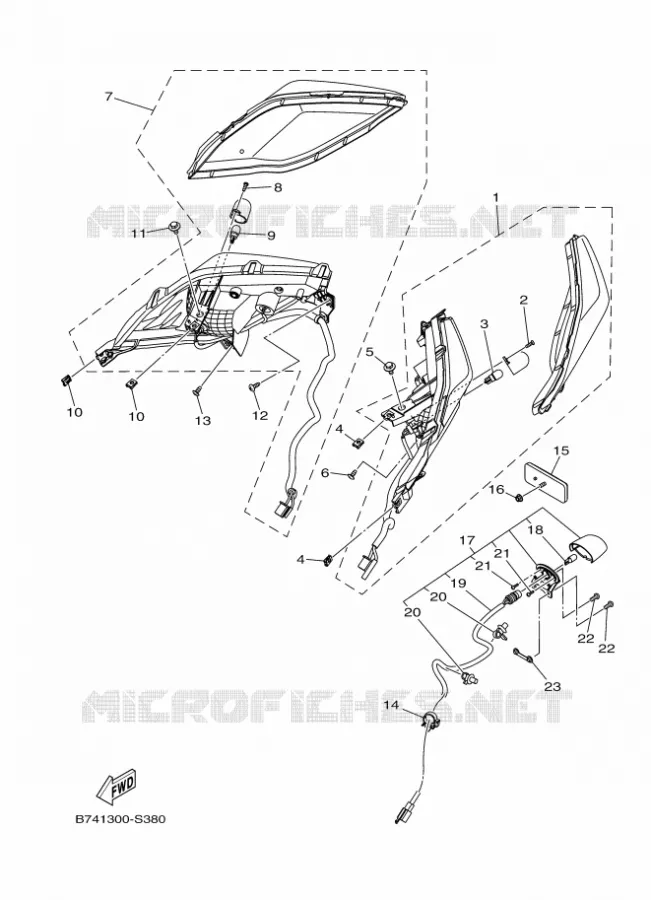

Yamaha CZD300-A
Cilinderinhoud: 300 Jaar: 2017 Model code B741 Kleur: WHITE METALLIC 6
