| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
B74-F4730-10 B74F473010 B74F473010 |
DOUBLE SEAT ASSY
|
||||
| # 2 |
B74-F4741-00 B74F474100 B74F474100 |
PAD, SEAT
|
||||
| # 3 |
B74-F470F-10 B74F470F10 B74F470F10 |
SEAT COVER COMP.
|
Contact | |||
| # 4 |
B74-F4786-10 B74F478610 B74F478610 |
EMBLEM
|
||||
| # 5 |
97702-40012 9770740012009770240012 |
SCREW, TRUSS TAP.
|
||||
| # 6 |
B74-F473R-00 B74F473R00 B74F473R00 |
BOX 1
|
||||
| # 7 |
B74-F475M-00 B74F475M00 B74F475M00 |
SEAL
|
||||
| # 8 |
B74-2476U-00 B742476U00 B742476U00 |
PROTECTOR 1
|
||||
| # 9 |
B74-2476V-00 B742476V00 B742476V00 |
PROTECTOR, 2
|
||||
| # 10 |
B74-F4723-00 B74F472300 B74F472300 |
DAMPER, SEAT
|
||||
| # 11 |
B74-H4770-00 B74H477000 B74H477000 |
LIGHT, ACCESSORY
|
||||
| # 12 |
90520-10834 9052010834 9052010834 |
DAMPER, PLATE
|
||||
| # 13 |
90338-06809 9033806809 9033806809 |
PLUG
|
||||
| # 14 |
90109-06220 9010906220 9010906220 |
BOLT
|
||||
| # 15 |
B74-F1621-00 B74F162100 B74F162100 |
FLAP
|
||||
| # 16 |
90269-06816 9026906816 9026906816 |
RIVET
|
||||
| # 17 |
B74-F4769-00 B74F476900 B74F476900 |
HINGE, SEAT
|
||||
| # 18 |
95702-06500 9578006500009570206500 |
NUT, FLANGE(7NB)
|
||||
| # 19 |
B74-F4785-00 B74F478500 B74F478500 |
MOLD, SEAT
|
||||
| # 20 |
B74-F4727-00 B74F472700 B74F472700 |
PIN, SEAT FITTING
|
||||
| # 21 |
90468-18121 9046818121 9046818121 |
CLIP (7U6)
|
||||
| # 22 |
B74-F4639-00 B74F463900 B74F463900 |
STOPPER, PLATE
|
||||
| # 23 |
B74-F478G-00 B74F478G00 B74F478G00 |
STOPPER
|
||||
| # 24 |
B74-F474E-00 B74F474E0100B74F474E00 |
BRAS
|
||||
| # 25 |
B74-F1121-00 B74F112100 B74F112100 |
BRACKET, DAMPER
|
||||
| # 26 |
95022-08012 9502208012 9502208012 |
BOLT, FLANGE
|
||||
| # 27 |
B74-F478E-00 B74F478E00 B74F478E00 |
CABLE, SEAT LOCK
|
||||
| # 28 |
B65-F4780-00 B65F478000 B65F478000 |
SEAT LOCK ASSY
|
||||
| # 29 |
95022-06012 9502206012 9502206012 |
BOLT, FLANGE
|
||||
| # 30 |
B74-F472T-00 B74F472T0100B74F472T00 |
COVER, SEAT LOCK
|
||||
| # 31 |
90269-06816 9026906816 9026906816 |
RIVET
|
||||
| # 32 |
B74-F465E-10 B74F465E10 B74F465E10 |
ROTOR COMP.
|
||||
| # 33 |
B74-F465B-00 B74F465B00 B74F465B00 |
CAP, ROTOR
|
||||
| # 34 |
90464-36800 9046436800 9046436800 |
CLAMP
|
||||
| # 35 |
92012-06020 9201206020 9201206020 |
BOLT, BUTTON HEAD
|
||||
| # 36 |
B74-F471D-00 B74F471D00 B74F471D00 |
PLATE, LOCK 1
|
||||
| # 37 |
91312-05010 9131205010 9131205010 |
BOLT
|
||||
| # 38 |
B74-F479D-00 B74F479D00 B74F479D00 |
WIRE, SEAT LOCK 2
|
||||
| # 39 |
1S7-F4768-00 1S7F476800 1S7F476800 |
STOPPER
|
||||
| # 40 |
90464-16006 9046416006 9046416006 |
CLAMP
|
||||
| # 41 |
B74-F8100-00 B74F810000 B74F810000 |
TOOL KIT
|
||||
| # 42 |
B74-F8175-00 B74F817500 B74F817500 |
HOLDER, TOOL
|
||||
| # 43 |
B74-F819U-F0 B74F819UF0 B74F819UF0 |
MANUEL D'UTILISATION 2
|
Contact | |||
| # 44 |
1WD-F1668-01 1WDF166801 1WDF166801 |
ETIQUETTE, PNEU
|
Contact |

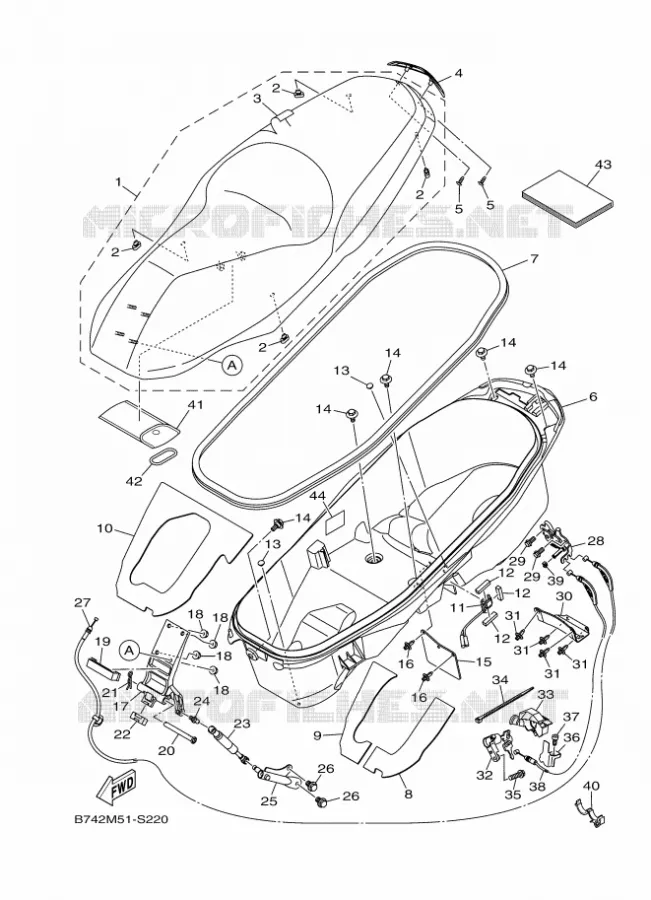

Yamaha CZD300-A
Cilinderinhoud: 300 Jaar: 2017 Model code B742 Kleur: MAT GRAY METALLIC 3
