Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

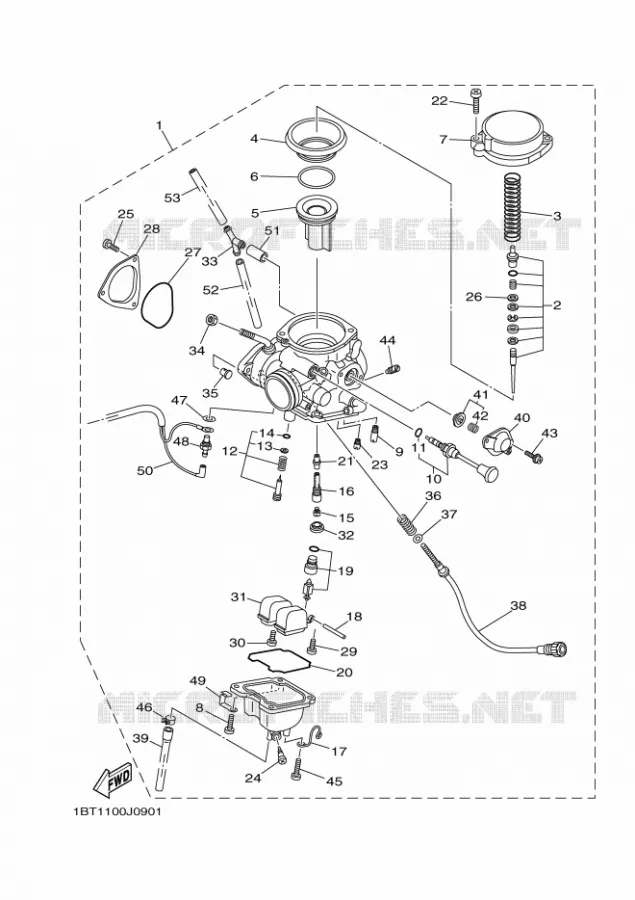

| # 1 |
4D3-14901-10 4D31490110 4D31490110 |
CARBURETOR ASSY 1
|
||||
| # 2 |
4D3-1490J-10 4D31490J10 4D31490J10 |
NEEDLE SET
|
||||
| # 3 |
4D3-14933-00 4D31493300 4D31493300 |
SPRING, DIAPHRAGM
|
||||
| # 4 |
4D3-14841-00 4D31484100 4D31484100 |
DIAPHRAGM
|
||||
| # 5 |
4D3-14112-00 4D31411200 4D31411200 |
VALVE, THROTTLE 1
|
||||
| # 6 |
5GH-14918-10 5GH1491810 5GH1491810 |
RING
|
||||
| # 7 |
4D3-14958-00 4D31495800 4D31495800 |
COVER, DIAPHRAGM
|
||||
| # 8 |
98507-04010 9850704010 9850704010 |
SCREW, PAN HEAD(6G8)
|
||||
| # 9 |
4KM-14142-25 4KM1414225 4KM1414225 |
JET, PILOT (# 25)
|
||||
| # 10 |
4D3-1490A-00 4D31490A00 4D31490A00 |
DIAPHRAGM SET 1
|
||||
| # 11 |
1AE-14147-00 1AE1414700 1AE1414700 |
O-RING
|
||||
| # 12 |
4D3-14105-00 4D31410500 4D31410500 |
PILOT SCREW SET
|
||||
| # 13 |
3H1-14962-00 3H11496200 3H11496200 |
WASHER, PILOT SCREW
|
||||
| # 14 |
3H1-14147-00 3H11414700 3H11414700 |
O-RING, PILOT SCREW
|
||||
| # 15 |
620-1423E-53 6201423E53 6201423E53 |
JET, MAIN (#133.8)
|
||||
| # 16 |
4D3-14261-00 4D31426100 4D31426100 |
HOLDER
|
||||
| # 17 |
4D3-14937-00 4D31493700 4D31493700 |
CLIP
|
||||
| # 18 |
127-14186-00 1271418600 1271418600 |
PIN, FLOAT
|
||||
| # 19 |
5YT-14107-20 5YT1410720 5YT1410720 |
NEEDLE VALVE SET
|
||||
| # 20 |
5DM-14561-00 5DM1456100 5DM1456100 |
O-RING
|
||||
| # 21 |
5DM-1414M-40 5DM1414M40 5DM1414M40 |
NOZZLE, MAIN
|
||||
| # 22 |
4KM-14216-00 4KM1421600 4KM1421600 |
SCREW
|
||||
| # 23 |
3G2-14231-11 3G21423111 3G21423111 |
JET, MAIN (# 55)
|
||||
| # 24 |
12R-14191-00 12R1419100 12R1419100 |
PLUG, DRAIN
|
||||
| # 25 |
98507-04006 9851704006009850704006 |
SCREW, PAN HEAD(3XP)
|
||||
| # 26 |
5DM-14952-00 5DM1495200 5DM1495200 |
WASHER
|
||||
| # 27 |
5LP-14147-00 5LP1414700 5LP1414700 |
O-RING
|
||||
| # 28 |
4WV-14293-00 4WV1429300 4WV1429300 |
COVER 1
|
||||
| # 29 |
98507-04008 9850704008 9850704008 |
SCREW, PAN HEAD(JG1)
|
||||
| # 30 |
1FN-14565-00 1FN1456500 1FN1456500 |
SCREW
|
||||
| # 31 |
5DM-14985-00 5DM1498500 5DM1498500 |
FLOAT
|
||||
| # 32 |
5V7-14153-00 5V71415300 5V71415300 |
WASHER, MAIN JET
|
||||
| # 33 |
4D3-14988-00 4D31498800 4D31498800 |
PIPE, STARTER CONNECTING
|
||||
| # 34 |
1S3-14161-00 1S31416100 1S31416100 |
NUT, CABLE ADJUSTING
|
||||
| # 35 |
3GD-14155-00 3GD1415500 3GD1415500 |
GUIDE, CABLE
|
||||
| # 36 |
137141330000 137141330000137141330000 |
SPRING, THROTTLE STOP
|
||||
| # 37 |
5FU-14962-00 5FU1496200 5FU1496200 |
WASHER
|
||||
| # 38 |
4D3-14123-00 4D31412300 4D31412300 |
SCREW, AIR ADJUSTING
|
||||
| # 39 |
4D3-14193-00 4D31419300 4D31419300 |
PIPE
|
||||
| # 40 |
5AP-14280-00 5AP1428000 5AP1428000 |
COVER, CARBURETOR
|
||||
| # 41 |
4D3-1490H-00 4D31490H00 4D31490H00 |
DIAPHRAGM SET 5
|
||||
| # 42 |
3HT-14934-00 3HT1493400 3HT1493400 |
SPRING, THROTTLE STOP
|
||||
| # 43 |
97607-04114 9760704114 9760704114 |
SCREW, W/WASHER
|
||||
| # 44 |
1HX-14231-34 1HX1423134 1HX1423134 |
JET, MAIN (#170)
|
||||
| # 45 |
98507-05010 9851705010009850705010 |
SCREW, PAN HEAD(3LA)
|
||||
| # 46 |
90467-09026 9046709026 9046709026 |
CLIP (8A1)
|
||||
| # 47 |
5CY-14951-00 5CY1495100 5CY1495100 |
WASHER
|
||||
| # 48 |
5FU-83790-00 5FU8379000 5FU8379000 |
HEATER ASSY
|
||||
| # 49 |
90461-06087 9046106087 9046106087 |
CLAMP
|
Contact | |||
| # 50 |
4D3-82509-00 4D38250900 4D38250900 |
WIRE, SUB LEAD
|
||||
| # 51 |
4D3-14196-00 4D31419600 4D31419600 |
PIPE
|
||||
| # 52 |
1UM-14197-00 9044511083001UM1419700 |
HOSE (L800)
|
||||
| # 53 |
5JJ-14987-00 5JJ1498700 5JJ1498700 |
HOSE
|
Yamaha YFM250R
Cilinderinhoud: 250 Jaar: 2010 Model code 1BT3 Kleur: DEEP PURPLISH BLUE SOLID E
