| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
BEX-21101-01 BEX2110101 BEX2110101 |
FRONT FRAME COMP.
|
Contact | |||
| # 2 |
B3J-21447-00 B3J2144700 B3J2144700 |
BRACKET, FOOTREST
|
||||
| # 3 |
17D-21448-00 17D2144800 17D2144800 |
BRACKET, FOOTREST
|
||||
| # 4 |
90149-10031 9014910033009014910031 |
SCREW
|
||||
| # 5 |
BR9-21190-10 BR92119010 BR92119010 |
REAR FRAME COMP.
|
||||
| # 6 |
90105-08230 9010508230 9010508230 |
BOLT, FLANGE
|
||||
| # 7 |
30X-22178-00 30X2217800 30X2217800 |
TENSIONER
|
||||
| # 8 |
4V4-22184-00 4V42218400 4V42218400 |
BUSH
|
||||
| # 9 |
90201-08045 9020108045 9020108045 |
WASHER, PLATE
|
||||
| # 10 |
90387-08041 9038708041 9038708041 |
COLLAR
|
||||
| # 11 |
95E32-08040 95E3208040 95E3208040 |
BOLT, FLANGE DEEP RECESS
|
||||
| # 12 |
BR9-22178-00 BR92217800 BR92217800 |
TENSIONER
|
||||
| # 13 |
93300-60839 9330060839 9330060839 |
BEARING
|
||||
| # 14 |
90387-086N4 90387086N4 90387086N4 |
COLLAR(1NL)
|
||||
| # 15 |
90105-08232 9010508232 9010508232 |
BOLT, FLANGE
|
||||
| # 16 |
90185-08009 9561708100009018508009 |
NUT, U
|
||||
| # 17 |
90201-08043 9020108043 9020108043 |
WASHER, PLATE
|
||||
| # 18 |
B3J-21149-00 B3J2114900 B3J2114900 |
BRACKET, BATTERY BOX
|
||||
| # 19 |
90267-32146 9026732146 9026732146 |
RIVET, BLIND (2YK)
|
||||
| # 20 |
90105-10230 9010510230 9010510230 |
BOLT, FLANGE
|
||||
| # 21 |
90179-10658 9570410500009017910658 |
NUT, FLANGE(3BM)
|
||||
| # 22 |
90201-10045 9020110045 9020110045 |
WASHER, PLATE
|
||||
| # 23 |
BAK-21417-00 BAK2141700 BAK2141700 |
BRACKET, FRONT LOWER 1
|
||||
| # 24 |
BAJ-21418-00 BAJ2141800 BAJ2141800 |
BRACKET, FRONT LOWER 2
|
||||
| # 25 |
90105-08143 9010508143 9010508143 |
BOLT, FLANGE
|
||||
| # 26 |
90105-10176 9010510176 9010510176 |
BOLT, FLANGE
|
||||
| # 27 |
90179-10658 9570410500009017910658 |
NUT, FLANGE(3BM)
|
||||
| # 28 |
90201-10045 9020110045 9020110045 |
WASHER, PLATE
|
||||
| # 29 |
90105-10189 9010510189 9010510189 |
BOLT, FLANGE
|
||||
| # 30 |
B7B-21425-00 B7B2142500 B7B2142500 |
BRACKET, REAR UPPER 1
|
||||
| # 31 |
B7B-21426-00 B7B2142600 B7B2142600 |
BRACKET, REAR UPPER 2
|
||||
| # 32 |
90105-08143 9010508143 9010508143 |
BOLT, FLANGE
|
||||
| # 33 |
B3J-2147A-00 B3J2147A00 B3J2147A00 |
GUARD, ENGINE 1
|
||||
| # 34 |
90119-06166 9011906166 9011906166 |
BOLT, WITH WASHER
|
||||
| # 35 |
1SL-21163-01 1SL2116301 1SL2116301 |
HOLDER, CLUTCH CABLE
|
||||
| # 36 |
92012-06010 9201206010 9201206010 |
BOLT, BUTTON HEAD
|
||||
| # 37 |
BDB-21163-00 BDB2116300 BDB2116300 |
HOLDER, WIRE
|
||||
| # 38 |
92012-06010 9201206010 9201206010 |
BOLT, BUTTON HEAD
|
||||
| # 39 |
90464-31002 9046431002 9046431002 |
CLAMP
|
||||
| # 40 |
BR9-2171X-02 BR92171X02 BR92171X02 |
COVER, SIDE 6
|
||||
| # 41 |
90269-06081 9026906081 9026906081 |
RIVET
|
||||
| # 42 |
BR9-24181-00 BR92418100 BR92418100 |
DAMPER, LOCATING 1
|
||||
| # 43 |
BR9-24182-00 BR92418200 BR92418200 |
DAMPER, LOCATING 2
|
||||
| # 44 |
BR9-24183-10 BR92418310 BR92418310 |
DAMPER, LOCATING 3
|
||||
| # 45 |
5ET-28166-10 5ET2816610 5ET2816610 |
WRENCH, HEXAGON
|
||||
| # 46 |
BAK-28199-52 BAK2819952 BAK2819952 |
MANUAL, OWNER'S
|
||||
| # 47 |
18P-2467E-00 18P2467E00 18P2467E00 |
CAP
|
||||
| # 48 |
18P-2464V-01 18P2464V01 18P2464V01 |
CASE, CAP
|

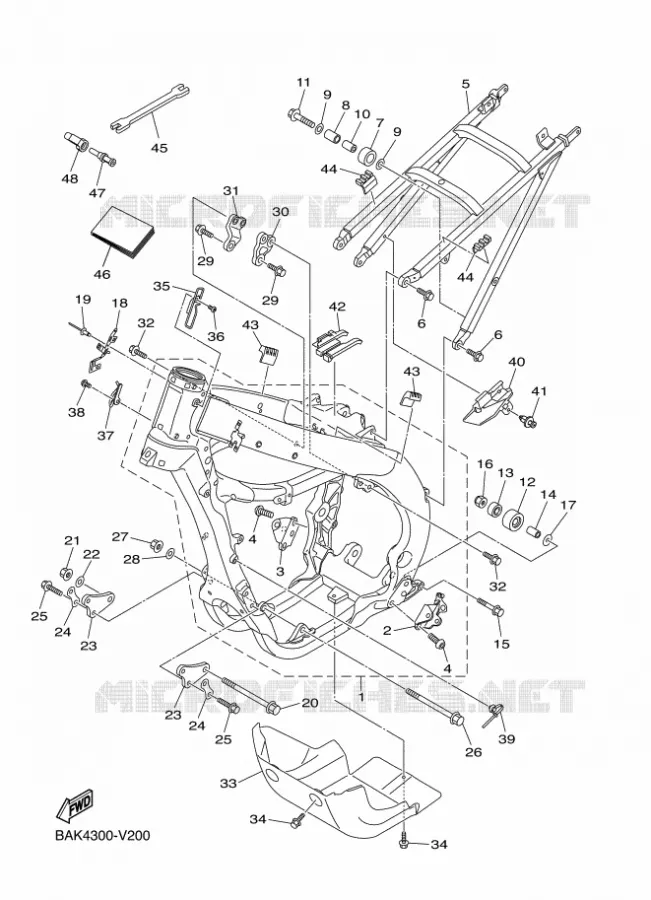

Yamaha WR250F
Cilinderinhoud: 250 Jaar: 2023 Model code BAKJ Kleur: DEEP PURPLISH BLUE SOLID E
