| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5ET-25311-00 5ET2531100 5ET2531100 |
HUB, REAR
|
||||
| # 2 |
5ET-25317-00 5ET2531700 5ET2531700 |
SPACER, BEARING
|
||||
| # 3 |
93306-27212 9330627212 9330627212 |
BEARING
|
||||
| # 4 |
93306-07202 9330607202 9330607202 |
BEARING(85G)
|
||||
| # 5 |
93106-30001 9310630001 9310630001 |
OIL SEAL
|
||||
| # 6 |
93106-30045 9310630045 9310630045 |
OIL SEAL
|
||||
| # 7 |
99009-45500 9900945500 9900945500 |
CIRCLIP
|
||||
| # 8 |
94421-19035 9442119035 9442119035 |
RIM (2.15-19)
|
||||
| # 9 |
5HD-25304-00 5HD2530400 5HD2530400 |
SPOKE SET, REAR
|
||||
| # 10 |
94111-19027 9411119027 9411119027 |
TIRE (110/90-19 62M MX52)
|
||||
| # 11 |
94211-19273 9421119273 9421119273 |
TUBE(3JE)
|
||||
| # 12 |
94311-19155 9431119155 9431119155 |
BAND, RIM(25-19)
|
||||
| # 13 |
3JE-25394-00 3JE2539400 3JE2539400 |
SPACER, BEAD
|
||||
| # 14 |
4XM-25364-00 4XM2536400 4XM2536400 |
DAMPER
|
||||
| # 15 |
17D-25447-50 17D2544750 17D2544750 |
SPROCKET, DRIVEN (47T)
|
||||
| # 15 |
17D-25448-50 17D2544850 17D2544850 |
SPROCKET, DRIVEN (48T)
|
||||
| # 15 |
17D-25449-50 17D2544950 17D2544950 |
SPROCKET, DRIVEN (49T)
|
||||
| # 15 |
17D-25450-50 17D2545050 17D2545050 |
SPROCKET, DRIVEN (50T)
|
||||
| # 15 |
17D-25451-50 17D2545150 17D2545150 |
SPROCKET, DRIVEN (51T)
|
||||
| # 15 |
17D-25452-50 17D2545250 17D2545250 |
SPROCKET, DRIVEN (52T)
|
||||
| # 16 |
90109-081G1 90109081G1 90109081G1 |
BOLT(3RB)
|
||||
| # 17 |
90185-08008 9018508008 9018508008 |
NUT, SELF-LOCKING
|
||||
| # 18 |
90201-08043 9020108043 9020108043 |
WASHER, PLATE
|
||||
| # 19 |
90480-08608 9048010068009048008608 |
GROMMET (397)
|
||||
| # 20 |
5TJ-2530S-80 5TJ2530S81005TJ2530S80 |
COLLAR ASSY
|
||||
| # 21 |
1C3-25388-H0 1C325388H0 1C325388H0 |
PULLER, CHAIN 1
|
||||
| # 22 |
1C3-25389-H0 1C325389H0 1C325389H0 |
PULLER, CHAIN 2
|
||||
| # 23 |
90101-08006 9010108006 9010108006 |
BOLT
|
||||
| # 24 |
90179-08019 9017908019 9017908019 |
NUT
|
||||
| # 25 |
1C3-25381-90 1C32538190 1C32538190 |
AXLE, WHEEL
|
||||
| # 26 |
90185-20002 9018520002 9018520002 |
NUT, SELF-LOCKING
|
||||
| # 27 |
90201-20020 9020120020 9020120020 |
WASHER, PLATE
|
||||
| # 28 |
9Y582-36113 9Y58236113 9Y58236113 |
CHAIN
|
||||
| # 29 |
94682-28001 9468228001 9468228001 |
JOINT, CHAIN
|

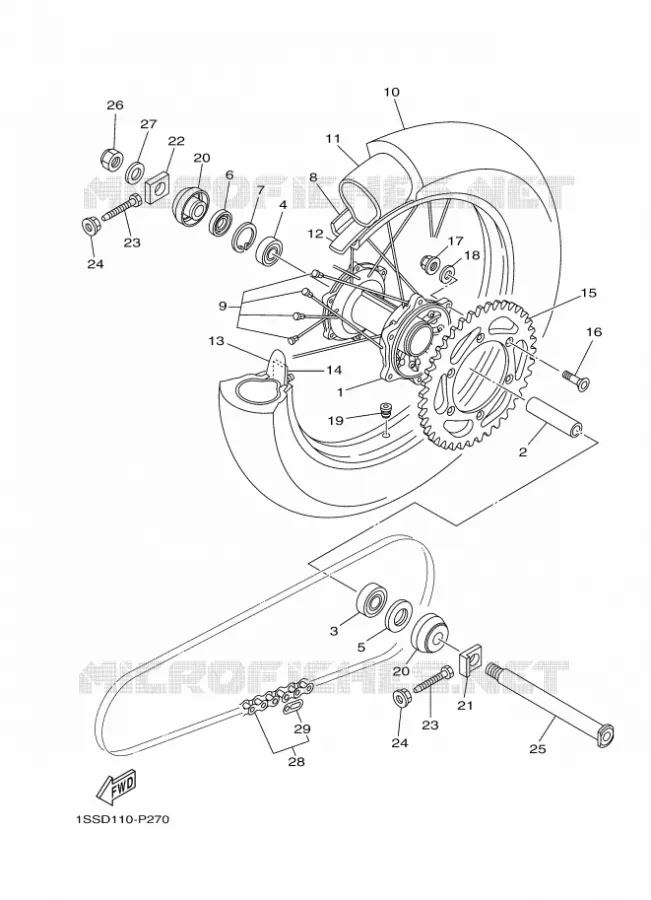

Yamaha YZ250
Cilinderinhoud: 250 Jaar: 2020 Model code B9U6 Kleur: DEEP PURPLISH BLUE SOLID E (DPBSE)
