| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
BF1-11111-00 BF11111100 BF11111100 |
HEAD, CYLINDER 1
|
||||
| # 2 |
94702-00326 9470200326 9470200326 |
PLUG, SPARK (BR8EG)
|
||||
| # 3 |
90116-08027 9011608027 9011608027 |
BOLT, STUD
|
||||
| # 4 |
93604-08071 9360408071 9360408071 |
PIN, DOWEL (278)
|
||||
| # 5 |
90176-08005 9017608005 9017608005 |
NUT, CROWN
|
||||
| # 6 |
90201-080L8 90201080L8 90201080L8 |
WASHER, PLATE
|
||||
| # 7 |
BF1-11311-00 BF11131100 BF11131100 |
CYLINDER 1
|
||||
| # 8 |
BF1-1131D-00 BF11131D00 BF11131D00 |
VALVE ASSY
|
||||
| # 9 |
5CU-1131U-10 5CU1131U10 5CU1131U10 |
HOLDER 3
|
||||
| # 10 |
90109-05001 9010905002009010905001 |
BOLT
|
||||
| # 11 |
5CU-1132A-00 5CU1132A00 5CU1132A00 |
VALVE 2
|
||||
| # 12 |
5UP-11351-00 5UP1135100 5UP1135100 |
GASKET, CYLINDER
|
||||
| # 13 |
90116-10034 9011610034 9011610034 |
BOLT, STUD
|
||||
| # 14 |
95612-10660 9561210660 9561210660 |
BOLT, STUD
|
||||
| # 15 |
90116-10034 9011610034 9011610034 |
BOLT, STUD
|
||||
| # 16 |
95612-10660 9561210660 9561210660 |
BOLT, STUD
|
||||
| # 17 |
99590-14016 9959014016 9959014016 |
PIN, DOWEL(4JT)
|
||||
| # 18 |
90179-10M35 9017910M35 9017910M35 |
NUT
|
||||
| # 19 |
93210-74316 9321074316 9321074316 |
O-RING (1J7)
|
||||
| # 20 |
93211-02703 9321102703 9321102703 |
O-RING(55X)
|
||||
| # 21 |
5CU-1131E-01 5CU1131E01 5CU1131E01 |
HOLDER 1
|
||||
| # 22 |
5CU-1131P-00 5CU1131P00 5CU1131P00 |
HOLDER 4
|
||||
| # 23 |
93210-15639 9321015639 9321015639 |
O-RING (32N)
|
||||
| # 24 |
98502-05012 9858005012009850205012 |
SCREW, PAN HEAD (646)
|
||||
| # 25 |
90201-05021 9020105021 9020105021 |
WASHER, PLATE
|
||||
| # 26 |
5CU-11830-00 5CU1183000 5CU1183000 |
LINK ASSY
|
||||
| # 27 |
98902-05012 9890705012009890205012 |
SCREW, BINDING
|
||||
| # 28 |
93104-08040 9310408040 9310408040 |
OIL SEAL (8X12X3-371)
|
||||
| # 29 |
5NX-11395-00 5NX1139500 5NX1139500 |
HOLDER
|
||||
| # 30 |
4SS-11832-00 4SS1183200 4SS1183200 |
LEVER, LINK
|
||||
| # 31 |
90508-155B8 90508155B8 90508155B8 |
SPRING, TORSION
|
||||
| # 32 |
5MW-1132E-00 5MW1132E00 5MW1132E00 |
PULLEY 1
|
||||
| # 33 |
5MW-1132F-00 5MW1132F00 5MW1132F00 |
PULLEY 2
|
||||
| # 34 |
90201-081G0 90201081G0 90201081G0 |
WASHER, PLATE (24X)
|
||||
| # 35 |
90501-046L6 90501046L6 90501046L6 |
SPRING, COMPRESSION
|
||||
| # 36 |
5CU-1131V-00 5CU1131V00 5CU1131V00 |
SHAFT 1
|
||||
| # 37 |
91312-04008 9131204008 9131204008 |
BOLT
|
||||
| # 38 |
5CU-11991-01 5CU1199101 5CU1199101 |
HOUSING 1
|
||||
| # 39 |
5CU-11993-00 5CU1199300 5CU1199300 |
GASKET
|
||||
| # 40 |
97002-05020 9010105396009700205020 |
BOLT (2E9)
|
||||
| # 41 |
92902-05600 9299005600009290205600 |
WASHER, PLAIN (646)
|
||||
| # 42 |
5CU-11995-00 5CU1199500 5CU1199500 |
SEAL, HOUSING
|
||||
| # 43 |
5CU-1131M-11 5CU1131M11 5CU1131M11 |
COVER
|
||||
| # 44 |
353-13115-01 3531311501 3531311501 |
CONNECTOR, SUCTION PIPE
|
||||
| # 45 |
5CU-11354-00 5CU1135400 5CU1135400 |
GASKET
|
||||
| # 46 |
98902-05016 9890205016 9890205016 |
SCREW, BIND (8K2)
|
||||
| # 47 |
90445-09777 90445090F6009044509777 |
HOSE (L1500)
|

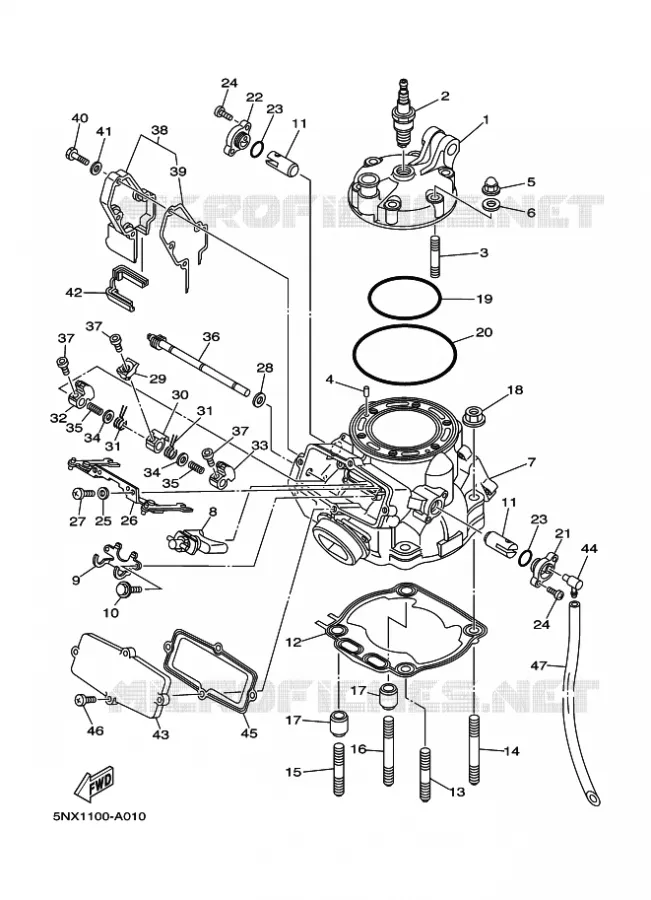

Yamaha YZ250X
Cilinderinhoud: 250 Jaar: 2018 Model code BF1A Kleur: DEEP PURPLISH BLUE SOLID E (DPBSE)
