| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
3C5-23102-20 3C52310220 3C52310220 |
FOURCHE AVANT COMPLETE (G)
|
Contact | |||
| # 2 |
3C5-23126-10 3C52312610 3C52312610 |
. BAS DE FOURCHE(GAUCHE)
|
Contact | |||
| # 3 |
3C5-23110-00 3C52311000 3C52311000 |
. TUBE DE FOURCHE NU
|
Contact | |||
| # 4 |
5JX-23171-00 5JX2317100 5JX2317100 |
PISTON, FRONT FORK
|
||||
| # 5 |
3C5-23170-00 3C52317000 3C52317000 |
. CYLINDRE DE FOURCHE AV
|
Contact | |||
| # 6 |
5JX-23125-00 5JX2312500 5JX2312500 |
METAL, SLIDE 1
|
||||
| # 7 |
5K5-23149-00 5K52314900 5K52314900 |
WASHER, SPRING UPPER
|
||||
| # 8 |
5JX-23145-00 5JX2314500 5JX2314500 |
OIL SEAL
|
||||
| # 9 |
4A1-23156-00 4A12315600 4A12315600 |
RING, SNAP
|
||||
| # 10 |
5JX-23144-00 5JX2314400 5JX2314400 |
SEAL, DUST
|
||||
| # 11 |
5XT-23173-00 5XT2317300 5XT2317300 |
SPINDLE, TAPER
|
||||
| # 12 |
5XT-23363-00 5XT2336300 5XT2336300 |
COLLAR 1
|
||||
| # 13 |
5XT-23151-00 5XT2315100 5XT2315100 |
SPRING, REBOUND
|
||||
| # 15 |
91311-08025 9131408025009131108025 |
BOLT, SOCKET
|
||||
| # 16 |
3C5-23141-00 3C52314100 3C52314100 |
. RESSORT, FOURCHE AVANT
|
Contact | |||
| # 17 |
4FY-23149-00 4FY2314900 4FY2314900 |
WASHER, SPRING UPPER
|
||||
| # 18 |
3C5-23118-00 3C52311800 3C52311800 |
. ENTRETOISE
|
Contact | |||
| # 19 |
5JX-23111-00 5JX2311100 5JX2311100 |
BOLT, CAP
|
||||
| # 20 |
240-23114-00 2402311400 2402311400 |
GASKET
|
||||
| # 21 |
3C5-23103-20 3C52310320 3C52310320 |
FOURCHE AVANT COMPLETE (D)
|
Contact | |||
| # 22 |
3C5-23136-10 3C52313610 3C52313610 |
. BAS DE FOURCHE 2
|
Contact | |||
| # 23 |
3C5-23110-00 3C52311000 3C52311000 |
. TUBE DE FOURCHE NU
|
Contact | |||
| # 24 |
5JX-23171-00 5JX2317100 5JX2317100 |
PISTON, FRONT FORK
|
||||
| # 25 |
3C5-23170-00 3C52317000 3C52317000 |
. CYLINDRE DE FOURCHE AV
|
Contact | |||
| # 26 |
5JX-23125-00 5JX2312500 5JX2312500 |
METAL, SLIDE 1
|
||||
| # 27 |
5K5-23149-00 5K52314900 5K52314900 |
WASHER, SPRING UPPER
|
||||
| # 28 |
5JX-23145-00 5JX2314500 5JX2314500 |
OIL SEAL
|
||||
| # 29 |
4A1-23156-00 4A12315600 4A12315600 |
RING, SNAP
|
||||
| # 30 |
5JX-23144-00 5JX2314400 5JX2314400 |
SEAL, DUST
|
||||
| # 31 |
5XT-23173-00 5XT2317300 5XT2317300 |
SPINDLE, TAPER
|
||||
| # 32 |
5XT-23363-00 5XT2336300 5XT2336300 |
COLLAR 1
|
||||
| # 33 |
5XT-23151-00 5XT2315100 5XT2315100 |
SPRING, REBOUND
|
||||
| # 35 |
91311-08025 9131408025009131108025 |
BOLT, SOCKET
|
||||
| # 36 |
3C5-23141-00 3C52314100 3C52314100 |
. RESSORT, FOURCHE AVANT
|
Contact | |||
| # 37 |
4FY-23149-00 4FY2314900 4FY2314900 |
WASHER, SPRING UPPER
|
||||
| # 38 |
3C5-23118-00 3C52311800 3C52311800 |
. ENTRETOISE
|
Contact | |||
| # 39 |
5JX-23111-00 5JX2311100 5JX2311100 |
BOLT, CAP
|
||||
| # 40 |
240-23114-00 2402311400 2402311400 |
GASKET
|
||||
| # 41 |
3C5-23191-10 3C52319110 3C52319110 |
SOUFFLET
|
Contact | |||
| # 42 |
3C5-23192-00 3C52319200 3C52319200 |
COLLIER
|
Contact | |||
| # 43 |
98506-04016 9850704018009850604016 |
SCREW, PAN HEAD
|
||||
| # 44 |
3C5-23340-10 3C52334010 3C52334010 |
TE DE FOURCHE INFERIEUR
|
Contact | |||
| # 45 |
5RS-23346-00 5RS2334600 5RS2334600 |
BOLT 1
|

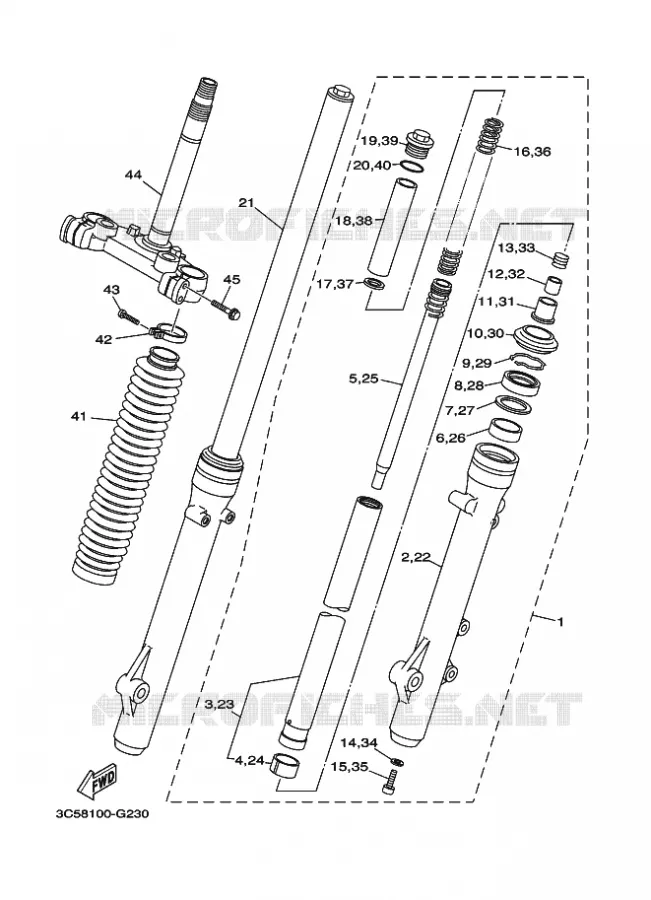

Yamaha XT250
Cilinderinhoud: 250 Jaar: 2016 Model code 1YBK Kleur: PASTEL MINERAL BLUE
