| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5UM-23102-F2 5UM23102F2 5UM23102F2 |
FRONT FORK ASSY (L.H)
|
||||
| # 2 |
5TJ-23136-C0 5TJ23136C0 5TJ23136C0 |
TUBE, OUTER (RIGHT)
|
||||
| # 3 |
5TJ-23120-C1 5TJ23120C1 5TJ23120C1 |
INNER TUBE COMP.2
|
||||
| # 4 |
5XE-23171-L0 5XE23171L0 5XE23171L0 |
PISTON, FRONT FORK
|
||||
| # 5 |
5XE-23125-L0 5XE23125L0 5XE23125L0 |
METAL, SLIDE 1
|
||||
| # 6 |
5XE-23146-L0 5XE23146L0 5XE23146L0 |
WASHER, OIL SEAL
|
||||
| # 7 |
1C3-23145-L0 1C323145L0 1C323145L0 |
OIL SEAL
|
||||
| # 8 |
5XE-23153-L0 5XE23153L0 5XE23153L0 |
RING, SNAP
|
||||
| # 9 |
5XE-23144-L0 5XE23144L0 5XE23144L0 |
SEAL, DUST
|
||||
| # 10 |
5UM-23170-E0 5UM23170E0 5UM23170E0 |
CYLINDER COMP., FRONT FORK
|
||||
| # 11 |
5XE-23142-L0 5XE23142L0 5XE23142L0 |
SEAT, SPRING UPPER
|
||||
| # 12 |
5XE-23393-L0 5XE23393L0 5XE23393L0 |
NUT, SPECIAL
|
||||
| # 13 |
5UM-2316A-F0 5UM2316AF0 5UM2316AF0 |
VALVE COMP.
|
||||
| # 14 |
5NY-23188-L0 5NY23188L0 5NY23188L0 |
O-RING
|
||||
| # 15 |
5NY-23147-L0 5NY23147L0 5NY23147L0 |
O-RING
|
||||
| # 16 |
4SS-23158-L0 4SS23158L0 4SS23158L0 |
GASKET
|
||||
| # 17 |
5TJ-23141-A0 5TJ2314140005TJ23141A0 |
SPRING, FRONT FORK
|
||||
| # 18 |
5XE-23111-L0 5XE23111L0 5XE23111L0 |
BOLT, CAP
|
||||
| # 19 |
5XE-23117-L0 5XE23117L0 5XE23117L0 |
GUIDE, SPRING
|
||||
| # 20 |
1C3-2314F-M0 1C32314FM0 1C32314FM0 |
PROTECTER GUIDE COMP., 1
|
||||
| # 21 |
3JD-2312G-L0 3JD2312GL0 3JD2312GL0 |
PLUG
|
||||
| # 22 |
5UM-23103-F2 5UM23103F2 5UM23103F2 |
FRONT FORK ASSY (R.H)
|
||||
| # 23 |
5TJ-23136-C0 5TJ23136C0 5TJ23136C0 |
TUBE, OUTER (RIGHT)
|
||||
| # 24 |
5TJ-23110-C1 5TJ23110C1 5TJ23110C1 |
INNER TUBE COMP.1
|
||||
| # 25 |
5XE-23171-L0 5XE23171L0 5XE23171L0 |
PISTON, FRONT FORK
|
||||
| # 26 |
5XE-23125-L0 5XE23125L0 5XE23125L0 |
METAL, SLIDE 1
|
||||
| # 27 |
5XE-23146-L0 5XE23146L0 5XE23146L0 |
WASHER, OIL SEAL
|
||||
| # 28 |
1C3-23145-L0 1C323145L0 1C323145L0 |
OIL SEAL
|
||||
| # 29 |
5XE-23153-L0 5XE23153L0 5XE23153L0 |
RING, SNAP
|
||||
| # 30 |
5XE-23144-L0 5XE23144L0 5XE23144L0 |
SEAL, DUST
|
||||
| # 31 |
5UM-23170-E0 5UM23170E0 5UM23170E0 |
CYLINDER COMP., FRONT FORK
|
||||
| # 32 |
5XE-23142-L0 5XE23142L0 5XE23142L0 |
SEAT, SPRING UPPER
|
||||
| # 33 |
5XE-23393-L0 5XE23393L0 5XE23393L0 |
NUT, SPECIAL
|
||||
| # 34 |
5UM-2316A-F0 5UM2316AF0 5UM2316AF0 |
VALVE COMP.
|
||||
| # 35 |
5NY-23188-L0 5NY23188L0 5NY23188L0 |
O-RING
|
||||
| # 36 |
5NY-23147-L0 5NY23147L0 5NY23147L0 |
O-RING
|
||||
| # 37 |
4SS-23158-L0 4SS23158L0 4SS23158L0 |
GASKET
|
||||
| # 38 |
5TJ-23141-A0 5TJ2314140005TJ23141A0 |
SPRING, FRONT FORK
|
||||
| # 39 |
5XE-23111-L0 5XE23111L0 5XE23111L0 |
BOLT, CAP
|
||||
| # 40 |
5XE-23117-L0 5XE23117L0 5XE23117L0 |
GUIDE, SPRING
|
||||
| # 41 |
1C3-2314F-M0 1C32314FM0 1C32314FM0 |
PROTECTER GUIDE COMP., 1
|
||||
| # 42 |
3JD-2312G-L0 3JD2312GL0 3JD2312GL0 |
PLUG
|
||||
| # 43 |
5UM-23340-L1 5UM23340L1 5UM23340L1 |
UNDER BRACKET COMP.
|
||||
| # 44 |
90105-08134 9010508134 9010508134 |
BOLT, FLANGE
|
||||
| # 45 |
5TJ-23525-C0 5TJ23525C0 5TJ23525C0 |
GUIDE
|
||||
| # 46 |
5TJ-2315J-C0 5TJ2315JC0 5TJ2315JC0 |
PROTECTOR 2
|
||||
| # 47 |
4XL-2153A-10 4XL2153A11004XL2153A10 |
EMBLEME, YAMAHA
|
||||
| # 48 |
1C3-2315H-10 1C32315H10 1C32315H10 |
PROTECTOR 1
|
||||
| # 49 |
4XL-2153A-10 4XL2153A11004XL2153A10 |
EMBLEME, YAMAHA
|
||||
| # 50 |
3SP-23356-L0 3SP23356L0 3SP23356L0 |
BOLT 2
|
||||
| # 51 |
5XC-23466-L0 5XC23466L0 5XC23466L0 |
CLAMP
|
||||
| # 52 |
5XC-23467-L0 5XC23467L0 5XC23467L0 |
CLAMP
|
||||
| # 53 |
95702-06500 9578006500009570206500 |
NUT, FLANGE(7NB)
|

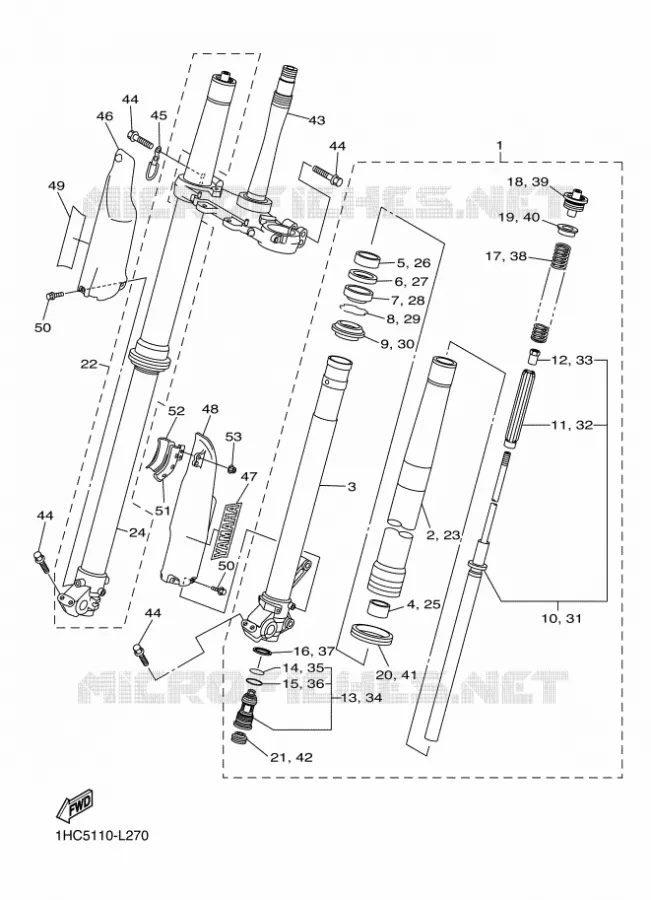

Yamaha WR250F
Cilinderinhoud: 250 Jaar: 2012 Model code 1HC7 Kleur: DEEP PURPLISH BLUE SOLID E
