| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5UM-11101-10 5UM1110110 |
CYLINDER HEAD ASSY
|
Contact | |||
| # 2 |
5NL-11133-10 5NL1113310 5NL1113310 |
GUIDE, INTAKE VALVE
|
||||
| # 3 |
5NL-11134-10 5NL1113410 5NL1113410 |
GUIDE, EXHAUST VALVE
|
||||
| # 4 |
91808-16023 9180816023 9180816023 |
PIN, DOWEL(3XW)
|
||||
| # 5 |
91808-16023 9180816023 9180816023 |
PIN, DOWEL(3XW)
|
||||
| # 6 |
90105-06027 9010506027 9010506027 |
BOLT, WASHER BASED
|
||||
| # 7 |
90340-12007 9034012007 9034012007 |
PLUG, STRAIGHT SCREW
|
||||
| # 8 |
95022-06010 9502206010 9502206010 |
BOLT, FLANGE
|
||||
| # 9 |
90430-06014 9043006014 9043006014 |
GASKET 256113960000
|
Contact | |||
| # 10 |
90116-06038 9011606038 9011606038 |
BOLT, STUD
|
||||
| # 11 |
95612-08620 9561208620 9561208620 |
BOLT, STUD
|
||||
| # 12 |
94701-00410 9470100410 9470100410 |
PLUG, SPARK (CR9E)
|
||||
| # 12 |
94701-00411 9470100411 9470100411 |
PLUG, SPARK (CR8E)
|
Contact | |||
| # 13 |
90340-12007 9034012007 9034012007 |
PLUG, STRAIGHT SCREW
|
||||
| # 14 |
90201-12790 9020112790 9020112790 |
WASHER, PLATE
|
||||
| # 15 |
5NL-11181-00 5NL1118100 5NL1118100 |
GASKET, CYLINDER HEAD 1
|
||||
| # 16 |
90105-09004 9010509004 9010509004 |
BOLT, FLANGE
|
||||
| # 17 |
90105-09002 9010509002 9010509002 |
BOLT, WASHER BASED
|
||||
| # 18 |
90201-096J9 90201096J9 90201096J9 |
WASHER, PLATE(1AA)
|
||||
| # 19 |
5NL-11191-40 5NL1119140 5NL1119140 |
COVER, CYLINDER HEAD 1
|
||||
| # 20 |
371-11167-01 3711116701 3711116701 |
PIPE, BREATHER 2
|
||||
| # 21 |
5UM-11166-00 5UM1116600 5UM1116600 |
PIPE, BREATHER 1
|
||||
| # 22 |
90467-140A4 90467140A4 90467140A4 |
CLIP
|
||||
| # 23 |
90467-17089 9046717128009046717089 |
CLIP(3TB)
|
||||
| # 24 |
5UM-1119E-00 5UM1119E00 5UM1119E00 |
BOLT, COVER HEAD
|
||||
| # 25 |
5NL-11193-00 5NL1119300 5NL1119300 |
GASKET, HEAD COVER 1
|
||||
| # 26 |
5XC-11311-10 5XC1131120005XC1131110 |
CYLINDER 1
|
||||
| # 27 |
5NL-11351-00 5NL1135100 5NL1135100 |
GASKET, CYLINDER
|
||||
| # 28 |
95702-06500 9578006500009570206500 |
NUT, FLANGE(7NB)
|
||||
| # 29 |
93612-16254 9361216254 9361216254 |
PIN, DOWEL(4XL)
|
||||
| # 30 |
95022-06035 9502206035 9502206035 |
BOLT, FLANGE
|
||||
| # 31 |
5UM-11387-00 5UM1138700 5UM1138700 |
CLAMP, HOSE 1
|

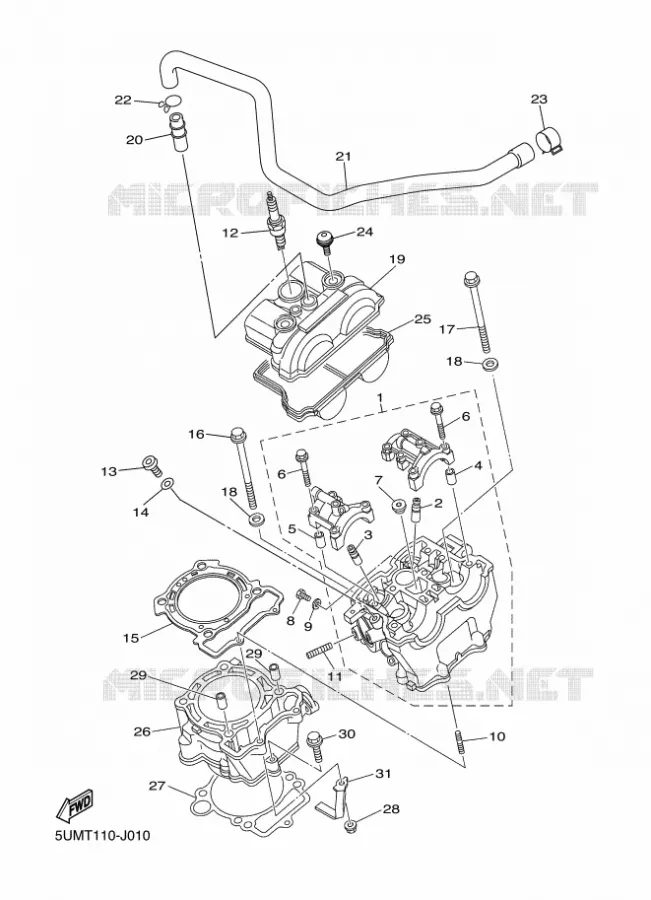

Yamaha WR250F
Cilinderinhoud: 250 Jaar: 2011 Model code 1HC3 Kleur: DEEP PURPLISH BLUE SOLID E
