| # 1 |
32D-23102-40 32D2310240 32D2310240 |
FRONT FORK ASSY (L.H)
|
||||
| # 1 |
32D-23102-50 32D2310250 32D2310250 |
FRONT FORK ASSY (L.H)
|
||||
| # 2 |
3D7-23106-40 3D72310640 3D72310640 |
OUTER TUBE COMP. (L.H)
|
||||
| # 2 |
3D7-23106-50 3D72310650 3D72310650 |
OUTER TUBE COMP. (L.H)
|
||||
| # 3 |
3D7-23110-00 3D72311000 3D72311000 |
INNER TUBE COMP.1
|
||||
| # 4 |
5ET-23171-L0 5ET23171L0 5ET23171L0 |
PISTON, FRONT FORK
|
||||
| # 5 |
5ET-23125-L0 5ET23125L0 5ET23125L0 |
METAL, SLIDE 1
|
||||
| # 6 |
5UN-23146-L0 5UN23146L0 5UN23146L0 |
WASHER, OIL SEAL
|
||||
| # 7 |
5UN-23145-L0 5UN23145L0 5UN23145L0 |
OIL SEAL
|
||||
| # 8 |
4SS-23153-L0 4SS23153L0 4SS23153L0 |
RING, SNAP
|
||||
| # 9 |
5HD-23144-L0 5HD23144L0 5HD23144L0 |
SEAL, DUST
|
||||
| # 10 |
32D-23170-00 32D2317000 32D2317000 |
CYLINDER COMP., FRONT FORK
|
||||
| # 11 |
32D-2316A-00 32D2316A00 32D2316A00 |
VALVE COMP.
|
||||
| # 12 |
4DA-23147-L0 4DA23147L0 4DA23147L0 |
O-RING
|
||||
| # 13 |
276-23114-00 2762311401002762311400 |
JOINT
|
||||
| # 14 |
2HH-23158-L0 2HH23158L0 2HH23158L0 |
GASKET
|
||||
| # 15 |
3D7-23117-00 3D72311700 3D72311700 |
GUIDE, SPRING
|
||||
| # 16 |
3XJ-23357-L0 3XJ23357L0 3XJ23357L0 |
NUT
|
||||
| # 17 |
32D-23141-00 32D2314100 32D2314100 |
SPRING, FRONT FORK
|
||||
| # 18 |
4SS-23143-L0 4SS23143L0 4SS23143L0 |
SEAT, SPRING LOWER
|
||||
| # 19 |
3D7-23111-00 3D72311100 3D72311100 |
BOLT, CAP
|
||||
| # 20 |
3D7-23147-00 3D72314700 3D72314700 |
O-RING
|
||||
| # 21 |
3JD-2312G-L0 3JD2312GL0 3JD2312GL0 |
PLUG
|
||||
| # 22 |
95022-08040 9502208040 9502208040 |
BOLT, FLANGE
|
||||
| # 23 |
5XC-2314F-00 5XC2314F00 5XC2314F00 |
PROTECTER GUIDE COMP., 1
|
||||
| # 24 |
32D-23103-40 32D2310340 32D2310340 |
FRONT FORK ASSY (R.H)
|
||||
| # 24 |
32D-23103-50 32D2310350 32D2310350 |
FRONT FORK ASSY (R.H)
|
||||
| # 25 |
3D7-23106-40 3D72310640 3D72310640 |
OUTER TUBE COMP. (L.H)
|
||||
| # 25 |
3D7-23106-50 3D72310650 3D72310650 |
OUTER TUBE COMP. (L.H)
|
||||
| # 26 |
3D7-23120-00 3D72312000 3D72312000 |
INNER TUBE COMP.2
|
||||
| # 27 |
5ET-23171-L0 5ET23171L0 5ET23171L0 |
PISTON, FRONT FORK
|
||||
| # 28 |
5ET-23125-L0 5ET23125L0 5ET23125L0 |
METAL, SLIDE 1
|
||||
| # 29 |
5UN-23146-L0 5UN23146L0 5UN23146L0 |
WASHER, OIL SEAL
|
||||
| # 30 |
5UN-23145-L0 5UN23145L0 5UN23145L0 |
OIL SEAL
|
||||
| # 31 |
4SS-23153-L0 4SS23153L0 4SS23153L0 |
RING, SNAP
|
||||
| # 32 |
5HD-23144-L0 5HD23144L0 5HD23144L0 |
SEAL, DUST
|
||||
| # 33 |
32D-23170-00 32D2317000 32D2317000 |
CYLINDER COMP., FRONT FORK
|
||||
| # 34 |
32D-2316A-00 32D2316A00 32D2316A00 |
VALVE COMP.
|
||||
| # 35 |
4DA-23147-L0 4DA23147L0 4DA23147L0 |
O-RING
|
||||
| # 36 |
276-23114-00 2762311401002762311400 |
JOINT
|
||||
| # 37 |
2HH-23158-L0 2HH23158L0 2HH23158L0 |
GASKET
|
||||
| # 38 |
3D7-23117-00 3D72311700 3D72311700 |
GUIDE, SPRING
|
||||
| # 39 |
3XJ-23357-L0 3XJ23357L0 3XJ23357L0 |
NUT
|
||||
| # 40 |
32D-23141-00 32D2314100 32D2314100 |
SPRING, FRONT FORK
|
||||
| # 41 |
4SS-23143-L0 4SS23143L0 4SS23143L0 |
SEAT, SPRING LOWER
|
||||
| # 42 |
3D7-23111-00 3D72311100 3D72311100 |
BOLT, CAP
|
||||
| # 43 |
3D7-23147-00 3D72314700 3D72314700 |
O-RING
|
||||
| # 44 |
3JD-2312G-L0 3JD2312GL0 3JD2312GL0 |
PLUG
|
||||
| # 45 |
95022-08040 9502208040 9502208040 |
BOLT, FLANGE
|
||||
| # 46 |
5XC-2314F-00 5XC2314F00 5XC2314F00 |
PROTECTER GUIDE COMP., 1
|
||||
| # 47 |
3D7-23340-00 3D72334000 3D72334000 |
UNDER BRACKET COMP.
|
||||
| # 48 |
95022-08040 9502208040 9502208040 |
BOLT, FLANGE
|
||||
| # 49 |
3D7-2331E-00 3D72331E00 3D72331E00 |
GUIDE, CABLE
|
||||
| # 50 |
5VK-23389-00 5VK2338900 5VK2338900 |
GUIDE, CABLE
|
||||
| # 51 |
90105-05016 9010505016 9010505016 |
BOLT, FLANGE
|
||||
| # 52 |
1C3-2315H-10 1C32315H10 1C32315H10 |
PROTECTOR 1
|
||||
| # 53 |
4XL-2153A-10 4XL2153A11004XL2153A10 |
EMBLEME, YAMAHA
|
||||
| # 54 |
1C3-2315J-10 1C32315J10 1C32315J10 |
PROTECTOR 2
|
||||
| # 55 |
4XL-2153A-10 4XL2153A11004XL2153A10 |
EMBLEME, YAMAHA
|
||||
| # 56 |
3SP-23356-L0 3SP23356L0 3SP23356L0 |
BOLT 2
|
||||
| # 57 |
3D7-23466-00 3D72346600 3D72346600 |
CLAMP
|
||||
| # 58 |
3D7-23467-00 3D72346700 3D72346700 |
CLAMP
|
||||
| # 59 |
90176-06014 9017606014 9017606014 |
NUT, CROWN
|

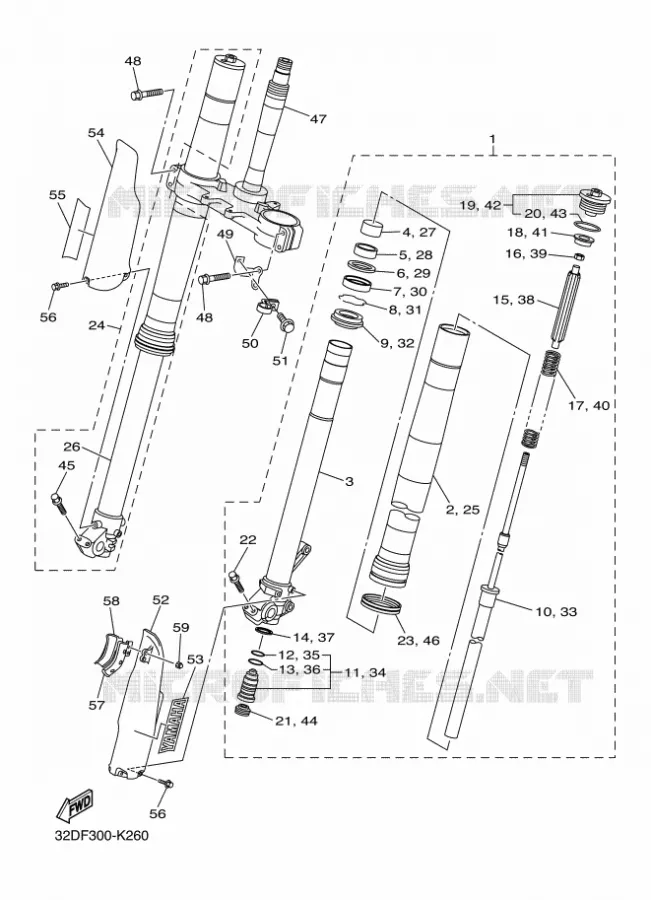

Yamaha WR250R
Cilinderinhoud: 250 Jaar: 2011 Model code 32DF Kleur: DEEP PURPLISH BLUE SOLID E
