DEKSEL - MOTOR 1 VOOR YAMAHA WR250F 2004

DEKSEL - MOTOR 1 Yamaha MOTO 250 2004 WRF  WR250FS
1
COVER, CRANKCASE 1

5UM154111000   5UM154111000

5UM154111000

Stukprijs Incl. BTW


2
PLUG, STRAIGHT SCREW

903402700200   903402700200

903402700200
Niet beschikbaar

3
O-RING(1KT)

932102737000  

932102777800
932102737000

Stukprijs Incl. BTW


4
PLUG, STRAIGHT SCREW(3RW)

903401412800   903401412800

903401412800

Stukprijs Incl. BTW


5
O-RING (2H9)

932101436900   932101436900

932101436900

Stukprijs Incl. BTW


6
PLUG, OIL

3Y1153630000  

3Y1153631000
3Y1153630000

Stukprijs Incl. BTW


7
O-RING (646)

932101912300   932101912300

932101912300

Stukprijs Incl. BTW


8
GASKET, CRANKCASE COVER 1

5UM154510000   5UM154510000

5UM154510000

Stukprijs Incl. BTW


9
PIN, DOWEL(3XW)

995300801600  

918081602300
995300801600

Stukprijs Incl. BTW


10
BOLT, SMALL FLANGE

950270604000   950270604000

950270604000

Stukprijs Incl. BTW


11
BOLT, SMALL FLANGE

950270603000   950270603000

950270603000

Stukprijs Incl. BTW


12
BOLT, SOCKET

913170611000   913170611000

913170611000

Stukprijs Incl. BTW


13
COVER ASSY 2

5UM1549B0000   5UM1549B0000

5UM1549B0000
Niet beschikbaar

14
O-RING (4H7)

932106042600   932106042600

932106042600

Stukprijs Incl. BTW


15
BOLT, WASHER BASED(JA9)

950270601600  

901050669600
950270601600

Stukprijs Incl. BTW


16
COVER, CRANKCASE 3

5NL154311000  

5NL154311000
Niet beschikbaar

17
OIL SEAL(4GY)

931011416400   931011416400

931011416400

Stukprijs Incl. BTW


18
WASHER (566)

902011570100   902011570100

902011570100

Stukprijs Incl. BTW


19
CIRCLIP

990092250000   990092250000

990092250000

Stukprijs Incl. BTW


20
GASKET, CRANKCASE COVER 3

5NL154620000   5NL154620000

5NL154620000

Stukprijs Incl. BTW


21
PIN, DOWEL(J38)

918121600100   918121600100

918121600100

Stukprijs Incl. BTW


22
BOLT, SMALL FLANGE

950270603500   950270603500

950270603500

Stukprijs Incl. BTW


23
PIPE, WATER

5NL125640000   5NL125640000

5NL125640000

Stukprijs Incl. BTW


24
O-RING (M124)

932101671600  

932101677200
932101671600

Stukprijs Incl. BTW


25
COVER, GENERATOR

5NL154150000   5NL154150000

5NL154150000
Niet beschikbaar

26
BOLT, WASHER BASED(4KG)

950270602500  

90105060A000
950270602500

Stukprijs Incl. BTW


27
BOLT, SMALL FLANGE

950270603500   950270603500

950270603500

Stukprijs Incl. BTW


28
BOLT, WASHER BASED

90105065A100   90105065A100

90105065A100

Stukprijs Incl. BTW


29
PIN, DOWEL(3XW)

995300801600  

918081602300
995300801600

Stukprijs Incl. BTW


30
GASKET

5NL154530000  

5NL154531000
5NL154530000

Stukprijs Incl. BTW


31
CLAMP 1

5UM815280000   5UM815280000

5UM815280000

Stukprijs Incl. BTW


32
BOLT, SOCKET

913170501200   913170501200

913170501200

Stukprijs Incl. BTW


Houd er rekening mee dat de te koop aangeboden onderdelen onderdelen zijn uit de catalogus van de fabrikant, we moeten ze soms speciaal voor u bestellen bij Yamaha. Raadpleeg het gedeelte Verzending en Levering voor meer informatie over levertijden.
De schema's zijn niet contractueel, als u vragen heeft, staan onze professionals voor u klaar om u zo goed mogelijk te helpen en te adviseren.

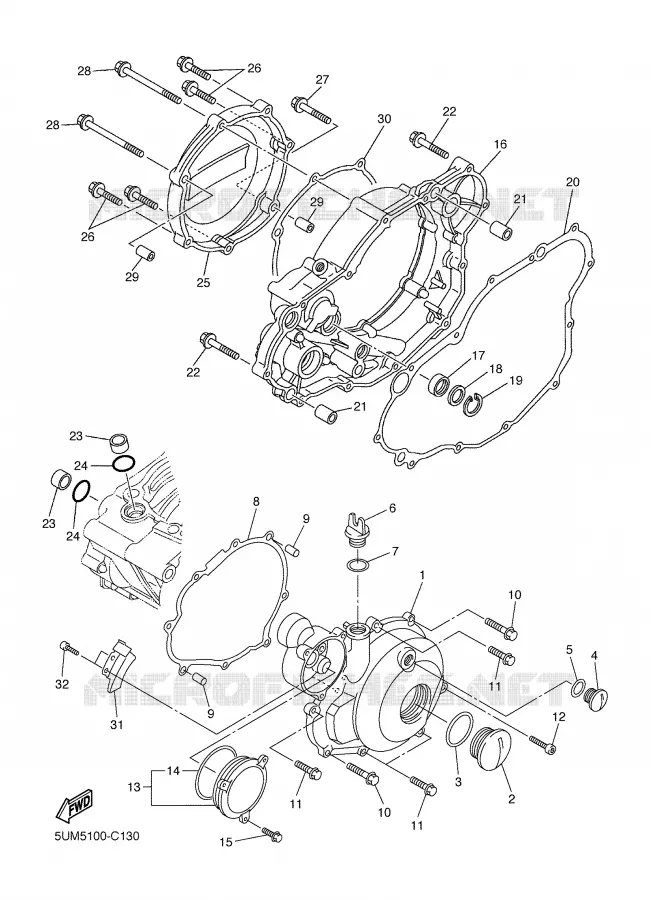

Selecteer het gewenste onderdeelnummer in het diagram of raadpleeg de lijst hierboven om de informatie en prijzen met betrekking tot de verschillende onderdelen te vinden.
Zorg ervoor dat u de vereiste hoeveelheid bestelt wanneer u een onderdeel aan uw winkelwagentje toevoegt. Houd er rekening mee dat de aangegeven eenheidsprijs de prijs is voor elk onderdeelnummer in hoeveelheid 1.
Vind op deze pagina alle originele onderdelen met betrekking tot de DEKSEL - MOTOR 1 van uw Yamaha WR250F van 2004. Laat het ons weten als u vragen heeft.

Originele onderdelen voor Yamaha WR250F 2004

Motoren Yamaha 250 WRF 2004

Selecteer uw Yamaha WRF model vanaf 2004

250 2004 WRF WR250FS

WR250F

Yamaha WR250FS

Cilinderinhoud: 250
Jaar: 2004
Model code 5UM7
Kleur: DEEP PURPLISH BLUE SOLID E
