| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

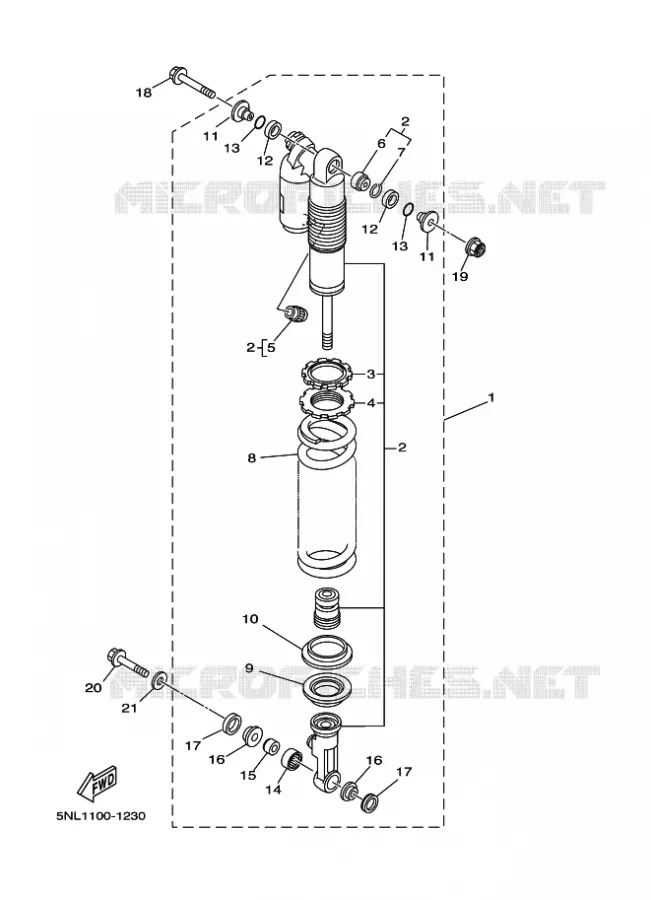

| # 1 |
5PH-22210-10 5PH2221010 5PH2221010 |
AMORTISSEUR, ARRIERE
|
Contact | |||
| # 2 |
5PH-22201-10 5PH2220110 5PH2220110 |
AMORTISSEUR, ARRIERE
|
Contact | |||
| # 3 |
3SP-22234-00 3SP2223400 3SP2223400 |
GUIDE, SPRING 3
|
||||
| # 4 |
3SP-22213-00 3SP2221300 3SP2221300 |
SEAT, SPRING UPPER
|
||||
| # 5 |
509-23184-L0 50923184L0 50923184L0 |
CAP, AIR VALVE
|
||||
| # 6 |
4JX-22226-00 4JX2222600 4JX2222600 |
BUSH, SHOCK ABSORBER LOWER
|
||||
| # 7 |
5DH-23183-00 5DH2318300 5DH2318300 |
CIRCLIP
|
||||
| # 8 |
5DH-22212-20 5DH2221220 5DH2221220 |
RESSORT (K=4.8)
|
Contact | |||
| # 9 |
5DH-22214-00 5DH2221400 5DH2221400 |
GUIDE, SPRING 1
|
Contact | |||
| # 10 |
5MV-22224-00 5MV2222400 5MV2222400 |
GUIDE, SPRING 2
|
||||
| # 11 |
5DH-22253-00 5DH2225300 5DH2225300 |
COLLAR, DISTANCE
|
Contact | |||
| # 12 |
3JE-22475-00 3JE2247500 3JE2247500 |
SEAL, DUST
|
||||
| # 13 |
4EW-22474-00 4EW2247400 4EW2247400 |
SEAL, RING
|
||||
| # 14 |
5MV-22176-00 5MV2217600 5MV2217600 |
BEARING
|
||||
| # 15 |
5MV-22184-00 5MV2218400 5MV2218400 |
BUSH
|
||||
| # 16 |
5MV-22253-00 5MV2225300 5MV2225300 |
COLLAR, DISTANCE
|
||||
| # 17 |
5MV-22475-00 5MV2247500 5MV2247500 |
SEAL, DUST
|
Contact | |||
| # 18 |
90105-10323 9010510323 9010510323 |
B0LT, FLANGE (1KT)
|
||||
| # 19 |
95607-10200 9560710200 9560710200 |
NUT, SELF-LOCKING(JN5)
|
||||
| # 20 |
90105-105A2 90105106140090105105A2 |
BOLT, WASHER BASED(3XJ)
|
||||
| # 21 |
90201-112U6 90201112U6 90201112U6 |
WASHER, PLATE
|
Yamaha WR250F
Cilinderinhoud: 250 Jaar: 2001 Model code 5PH2 Kleur: DEEP PURPLISH BLUE SOLID E
