| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
2XJ-25111-00 2XJ2511100 2XJ2511100 |
HUB, FRONT
|
Contact | |||
| # 2 |
93306-20209 9330620458009330620209 |
BEARING(1GJ)
|
||||
| # 3 |
93102-22216 9310222216 9310222216 |
OIL SEAL (7H5)
|
||||
| # 4 |
1UY-25117-00 1UY2511700 1UY2511700 |
SPACER, BEARING
|
||||
| # 5 |
93306-90403 9330690403 9330690403 |
BEARING(2JN)
|
||||
| # 6 |
2XJ-25180-00-P1 2XJ2518000P1 2XJ2518000P1 |
ROUE AVANT COMPLET
|
Contact | |||
| # 7 |
94107-100X3 5VM2510K090094107100X3 |
TIRE
|
||||
| # 7 |
94107-106W0 94107106W0 94107106W0 |
PNEU
|
Contact | |||
| # 8 |
93900-00030 9390000030 9390000030 |
VALVE, RIM(2GH)
|
||||
| # 9 |
95707-10500 9017910394009570710500 |
NUT (22F)
|
||||
| # 10 |
90387-150R1 90387150R1 90387150R1 |
COLLAR(1UY)
|
||||
| # 11 |
90201-14586 9020114220009020114586 |
WASHER PLATE 248181370000
|
||||
| # 12 |
90171-14020 9017114056009017114020 |
NUT, CASTLE(2UJ)
|
||||
| # 13 |
91401-30030 9149030030009140130030 |
PIN, COTTER
|
||||
| # 14 |
2XJ-25121-00 2XJ2512100 2XJ2512100 |
FLASQUE DE FREIN
|
Contact | |||
| # 15 |
4BE-W2536-00 4BEW253E00004BEW253600 |
BRAKE SHOE KIT
|
||||
| # 16 |
90506-15260 9050615260 9050615260 |
SPRING, TENSION
|
||||
| # 17 |
5G3-25351-02 5G32535102 5G32535102 |
CAMSHAFT
|
||||
| # 18 |
52H-25155-00 52H2515500 52H2515500 |
LEVER, CAMSHAFT 1
|
Contact | |||
| # 19 |
901010627800 901010627800901010627800 |
BOLT, HEXAGON (538)
|
||||
| # 20 |
95307-06600 9531706600009530706600 |
NUT(6TA)
|
||||
| # 21 |
52H-2513A-00 52H2513A00 52H2513A00 |
PLATE, INDICATOR
|
||||
| # 22 |
93210-12327 9321012790009321012327 |
O-RING(3LD)
|
||||
| # 23 |
93105-49023 9310549023 9310549023 |
OIL SEAL(52H)
|
Contact | |||
| # 24 |
2XJ-25169-00 2XJ2516900 2XJ2516900 |
FLASQUE DE FREIN
|
Contact | |||
| # 25 |
4BE-W2536-00 4BEW253E00004BEW253600 |
BRAKE SHOE KIT
|
||||
| # 26 |
90506-15260 9050615260 9050615260 |
SPRING, TENSION
|
||||
| # 27 |
5G3-25351-02 5G32535102 5G32535102 |
CAMSHAFT
|
||||
| # 28 |
52H-25156-00 52H2515600 52H2515600 |
LEVIER 2, AXE A CAME
|
Contact | |||
| # 29 |
901010627800 901010627800901010627800 |
BOLT, HEXAGON (538)
|
||||
| # 30 |
95307-06600 9531706600009530706600 |
NUT(6TA)
|
||||
| # 31 |
52H-2513A-00 52H2513A00 52H2513A00 |
PLATE, INDICATOR
|
||||
| # 32 |
93210-12327 9321012790009321012327 |
O-RING(3LD)
|
||||
| # 33 |
93105-49023 9310549023 9310549023 |
OIL SEAL(52H)
|
Contact | |||
| # 34 |
3JM-23511-00 3JM2351101003JM2351100 |
KNUCKLE, STEERING 1
|
||||
| # 35 |
2XJ-23512-00 2XJ2351201002XJ2351200 |
ARM, KNUCKLE 1
|
||||
| # 36 |
90105-10507 9010510507 9010510507 |
BOLT, WASHER BASED(2XJ)
|
Contact | |||
| # 37 |
91401-20020 9149020025009140120020 |
PIN, COTTER
|
||||
| # 38 |
90105-10549 9010510549 9010510549 |
BOLT, FLANGE (2XJ)
|
||||
| # 39 |
95337-10600 9533710600 9533710600 |
NUT(6TD)
|
||||
| # 40 |
90201-100F7 90201100F7 90201100F7 |
WASHER (7A9)
|
||||
| # 41 |
90171-10046 9017110001009017110046 |
NUT, CASTLE
|
||||
| # 42 |
91401-20020 9149020025009140120020 |
PIN, COTTER
|
||||
| # 43 |
3JM-23521-00 3JM2352100 |
KNUCKLE, STEERING 2
|
Contact | |||
| # 44 |
2XJ-23522-00 2XJ2352200 |
ARM, KNUCKLE 2
|
Contact | |||
| # 45 |
90105-10507 9010510507 9010510507 |
BOLT, WASHER BASED(2XJ)
|
Contact | |||
| # 46 |
91401-20020 9149020025009140120020 |
PIN, COTTER
|
||||
| # 47 |
90105-10549 9010510549 9010510549 |
BOLT, FLANGE (2XJ)
|
||||
| # 48 |
95337-10600 9533710600 9533710600 |
NUT(6TD)
|
||||
| # 49 |
90201-100F7 90201100F7 90201100F7 |
WASHER (7A9)
|
||||
| # 50 |
90171-10046 9017110001009017110046 |
NUT, CASTLE
|
||||
| # 51 |
91401-20020 9149020025009140120020 |
PIN, COTTER
|

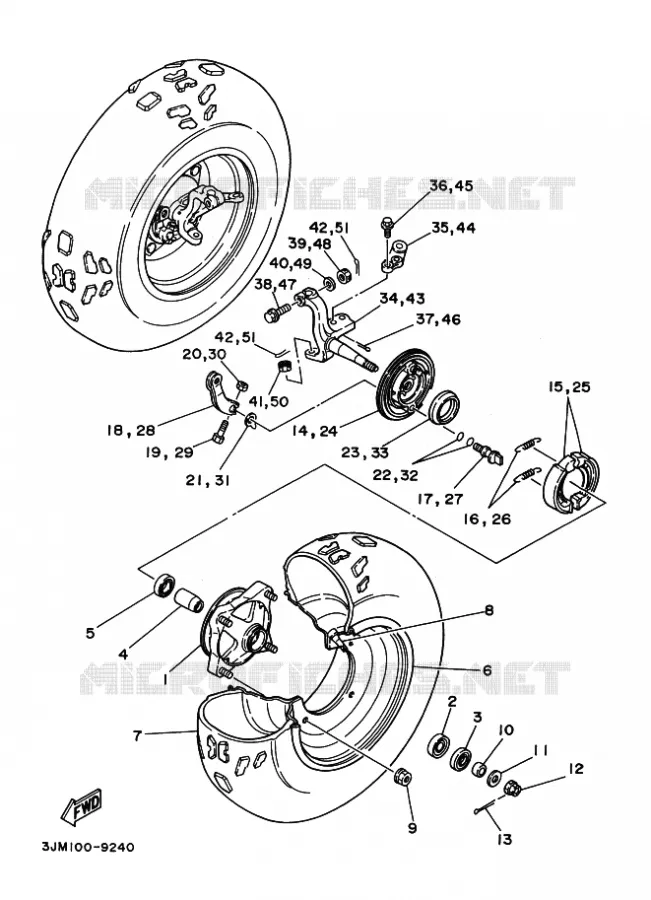

Yamaha YF200S
Cilinderinhoud: 200 Jaar: 1996 Model code 3JMM Kleur: INK BLUE
