| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
3GX-14611-00 3GX1461100 3GX1461100 |
COUDE D'ECHAPPEMENT
|
Contact | |||
| # 2 |
5H0-14612-01 5H01461201 5H01461201 |
NUT, RING
|
||||
| # 3 |
36X-14628-01 36X1462801 36X1462801 |
PROTECTEUR DE COUDE D'ECHAPPT
|
Contact | |||
| # 4 |
4BD-14766-00 4BD1476600 4BD1476600 |
WASHER, PROTECTOR
|
||||
| # 5 |
98907-06010 9890706010 9890706010 |
SCREW, BINDING
|
||||
| # 6 |
90206-06090 9020606090 9020606090 |
WASHER, WAVE(3RW)
|
||||
| # 7 |
36X-14711-01 36X1471101 36X1471101 |
POT D'ECHAPPEMENT 1
|
Contact | |||
| # 8 |
36X-14728-00 36X1472800 36X1472800 |
PROTECTEUR DE POT D'ECHAPPT
|
Contact | |||
| # 9 |
4BD-14766-00 4BD1476600 4BD1476600 |
WASHER, PROTECTOR
|
||||
| # 10 |
98907-06010 9890706010 9890706010 |
SCREW, BINDING
|
||||
| # 11 |
90206-06090 9020606090 9020606090 |
WASHER, WAVE(3RW)
|
||||
| # 12 |
36X-14752-02 36X1475202 36X1475202 |
PMBOUT DE SILENCIEUX
|
Contact | |||
| # 13 |
98507-06010 9850706010 9850706010 |
SCREW, PAN
|
||||
| # 14 |
92907-06600 9290706600 9290706600 |
WASHER(6TA)
|
||||
| # 15 |
3YF-14714-00 3YF1471400 3YF1471400 |
GASKET, MUFFLER
|
||||
| # 16 |
91317-08025 9131708025 9131708025 |
BOLT, SOCKET
|
||||
| # 17 |
92907-08600 9290708600 9290708600 |
WASHER(6TA)
|
||||
| # 18 |
90387-080K1 90387080K1 90387080K1 |
COLLERETTE
|
Contact | |||
| # 19 |
4BE-14613-00 4BE1461300 4BE1461300 |
GASKET, EXHAUST PIPE
|
||||
| # 20 |
91312-06020 9131206020 9131206020 |
BOLT
|
||||
| # 21 |
90105-08141 9581708020009010508141 |
BOLT, FLANGE(8AB)
|
||||
| # 22 |
90201-08326 9020108877009020108326 |
WASHER (853)
|

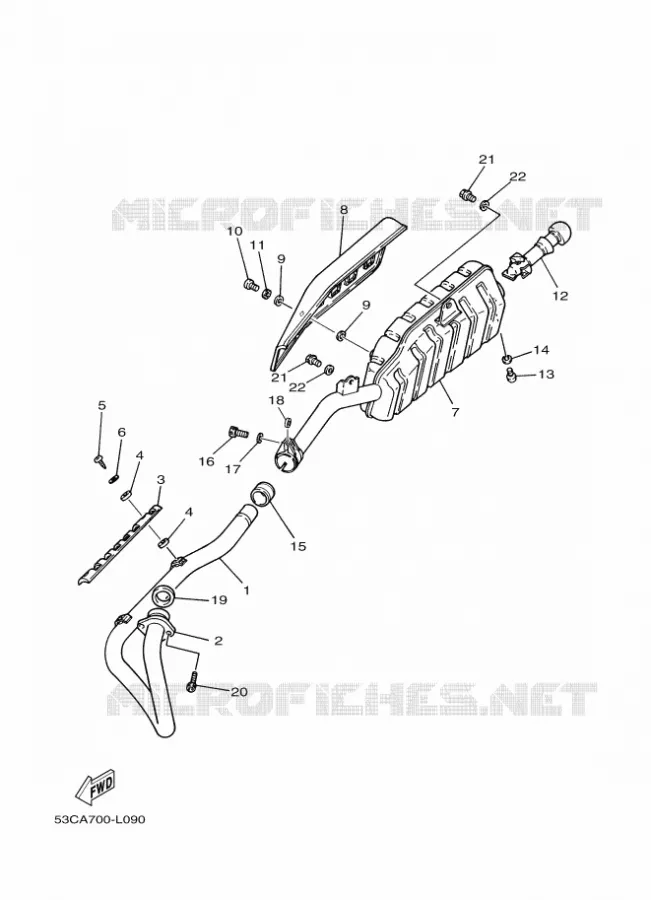

Yamaha AG200F
Cilinderinhoud: 200 Jaar: 2012 Model code 53C9 Kleur: YELLOWISH GRAY SOLID 3
