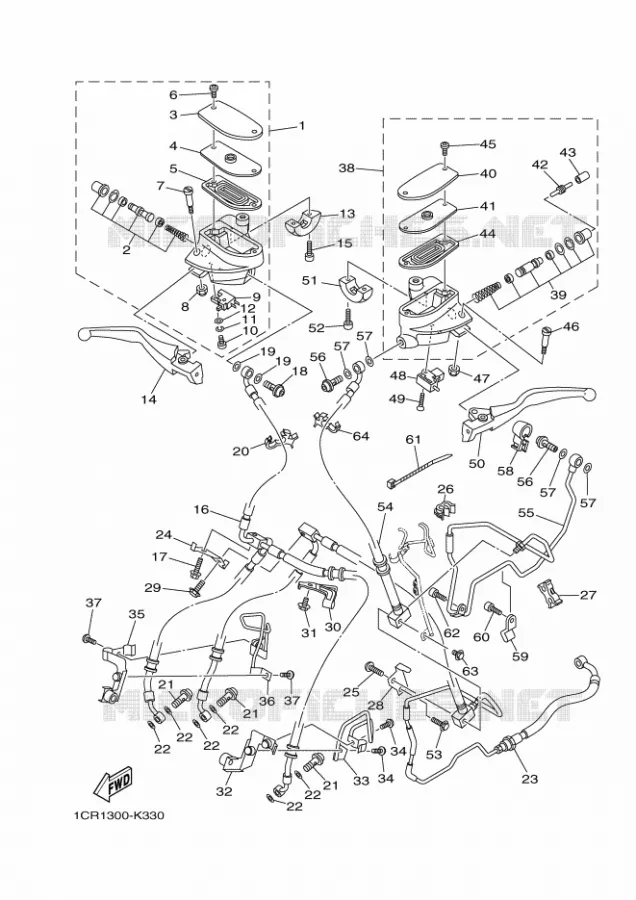

| # 1 |
1CR-W2587-00 1CRW258700 1CRW258700 |
MASTER CYLINDER SUB ASSY
|
||||
| # 2 |
1CR-W0041-00 1CRW004100 1CRW004100 |
CYLINDER KIT, MASTER
|
||||
| # 3 |
1D7-25852-20 1D72585220 1D72585220 |
CAP, RESERVOIR
|
||||
| # 4 |
1D7-2585B-00 1D72585B00 1D72585B00 |
PLATE, DIAPHRAGM
|
||||
| # 5 |
1D7-25854-01 1D72585401 1D72585401 |
DIAPHRAGM, RESERVOIR
|
||||
| # 6 |
1D7-2589H-00 1D72589H00 1D72589H00 |
SCREW
|
||||
| # 7 |
1D7-2589F-00 1D72589F00 1D72589F00 |
BOLT, LEVER
|
||||
| # 8 |
95604-06100 9560406100 9560406100 |
NUT, U(4NK)
|
||||
| # 9 |
4HM-83980-00 4HM8398000 4HM8398000 |
FRONT STOP SWITCH ASSY
|
||||
| # 10 |
98502-04012 9851704012009850204012 |
SCREW, PAN HEAD
|
||||
| # 11 |
92907-04100 9290704100 9290704100 |
WASHER(6TA)
|
||||
| # 12 |
92907-04600 9290704600 9290704600 |
WASHER(JF2)
|
||||
| # 13 |
1D7-26467-20 1D72646720 1D72646720 |
HOLDER
|
||||
| # 14 |
1CR-83922-00 1CR8392200 1CR8392200 |
LEVER 2
|
||||
| # 15 |
91314-06025 9131406025 9131406025 |
BOLT, SOCKET HEAD
|
||||
| # 16 |
1CR-25872-00 1CR2587200 1CR2587200 |
HOSE, BRAKE 1
|
||||
| # 17 |
90105-06096 9502706030009010506096 |
BOLT, SMALL FLANGE
|
||||
| # 18 |
90401-10172 9040110172 9040110172 |
BOLT, UNION
|
||||
| # 19 |
90430-10005 9043010005 9043010005 |
GASKET
|
||||
| # 20 |
90464-15192 9046415192 9046415192 |
CLAMP(4HM)
|
||||
| # 21 |
90401-10172 9040110172 9040110172 |
BOLT, UNION
|
||||
| # 22 |
90430-10005 9043010005 9043010005 |
GASKET
|
||||
| # 23 |
1CR-2584A-00 1CR2584A00 1CR2584A00 |
BRAKE HOSE ASSY
|
||||
| # 24 |
1CR-25887-00 1CR2588700 1CR2588700 |
HOLDER, BRAKE HOSE
|
||||
| # 25 |
92017-06025 9201706025 9201706025 |
BOLT, BUTTON HEAD
|
||||
| # 26 |
90464-04001 9046404001 9046404001 |
CLAMP
|
||||
| # 27 |
90464-04003 9046404003 9046404003 |
CLAMP
|
||||
| # 28 |
1CR-2588G-00 1CR2588G00 1CR2588G00 |
HOLDER, BRAKE HOSE 6
|
||||
| # 29 |
95827-06014 9581706014009582706014 |
BOLT, FLANGE
|
||||
| # 30 |
1CR-25876-00 1CR2587600 1CR2587600 |
HOLDER, BRAKE HOSE 2
|
||||
| # 31 |
90105-06020 9502706020009010506020 |
BOLT, FLANGE(6U1)
|
||||
| # 32 |
1D7-25875-00 1D72587500 1D72587500 |
HOLDER, BRAKE HOSE 1
|
||||
| # 33 |
1CR-25192-00 1CR2519200 1CR2519200 |
STAY
|
||||
| # 34 |
90111-06016 9011106031009011106016 |
BOLT
|
||||
| # 35 |
1CR-25886-00 1CR2588600 1CR2588600 |
HOLDER, BRAKE HOSE
|
||||
| # 36 |
1CR-2519F-00 1CR2519F00 1CR2519F00 |
STAY 2
|
||||
| # 37 |
90111-06016 9011106031009011106016 |
BOLT
|
||||
| # 38 |
1D7-W2645-20 1D7W264520 1D7W264520 |
MASTER CYLINDER SUB ASSY
|
||||
| # 39 |
1D7-W0099-00 5JWW009900001D7W009900 |
CYLINDER KIT, MASTER (CLUTCH)
|
||||
| # 40 |
1D7-25852-70 1D72585270 1D72585270 |
CAP, RESERVOIR
|
||||
| # 41 |
1D7-2585B-10 1D72585B10 1D72585B10 |
PLATE, DIAPHRAGM
|
||||
| # 42 |
1D7-26464-00 1D72646400 1D72646400 |
ROD, PUSH
|
||||
| # 43 |
3GM-26455-00 3GM2645500 3GM2645500 |
BUSH
|
||||
| # 44 |
1D7-25854-11 1D72585411 1D72585411 |
DIAPHRAGM, RESERVOIR
|
||||
| # 45 |
1D7-2589H-00 1D72589H00 1D72589H00 |
SCREW
|
||||
| # 46 |
1D7-2589F-00 1D72589F00 1D72589F00 |
BOLT, LEVER
|
||||
| # 47 |
95604-06100 9560406100 9560406100 |
NUT, U(4NK)
|
||||
| # 48 |
3YX-82917-01 3YX8291701 3YX8291701 |
SWITCH
|
||||
| # 49 |
90151-03002 9015103003009015103002 |
SCREW, COUNTERSUNK
|
||||
| # 50 |
1CR-83912-00 1CR8391200 1CR8391200 |
LEVER 1
|
||||
| # 51 |
1D7-26467-70 1D72646770 1D72646770 |
HOLDER
|
||||
| # 52 |
91314-06025 9131406025 9131406025 |
BOLT, SOCKET HEAD
|
||||
| # 53 |
95827-06016 9581706016009582706016 |
BOLT, FLANGE
|
||||
| # 54 |
1CR-26472-00 1CR2647200 1CR2647200 |
HOSE, CLUTCH 1
|
||||
| # 55 |
1CR-26473-00 1CR2647300 1CR2647300 |
HOSE, CLUTCH 2
|
||||
| # 56 |
90401-10172 9040110172 9040110172 |
BOLT, UNION
|
||||
| # 57 |
90430-10005 9043010005 9043010005 |
GASKET
|
||||
| # 58 |
1D7-26477-00 1D72647700 1D72647700 |
COVER
|
||||
| # 59 |
1CR-26475-00 1CR2647500 1CR2647500 |
HOLDER
|
||||
| # 60 |
91314-06014 9131406014 9131406014 |
BOLT, SOCKET HEAD
|
||||
| # 61 |
1UA-82591-00 1UA8259100 1UA8259100 |
BAND
|
||||
| # 62 |
90111-06010 9201706014009011106010 |
BOLT, BUTTON HEAD
|
||||
| # 63 |
95827-06008 9010506069009582706008 |
BOLT, WASHER BASED HEXAGON 1L9
|
||||
| # 64 |
90464-15192 9046415192 9046415192 |
CLAMP(4HM)
|
Yamaha XV1900A
Cilinderinhoud: 1900 Jaar: 2011 Model code 1CR1 Kleur: BLACK METALLIC X
