| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

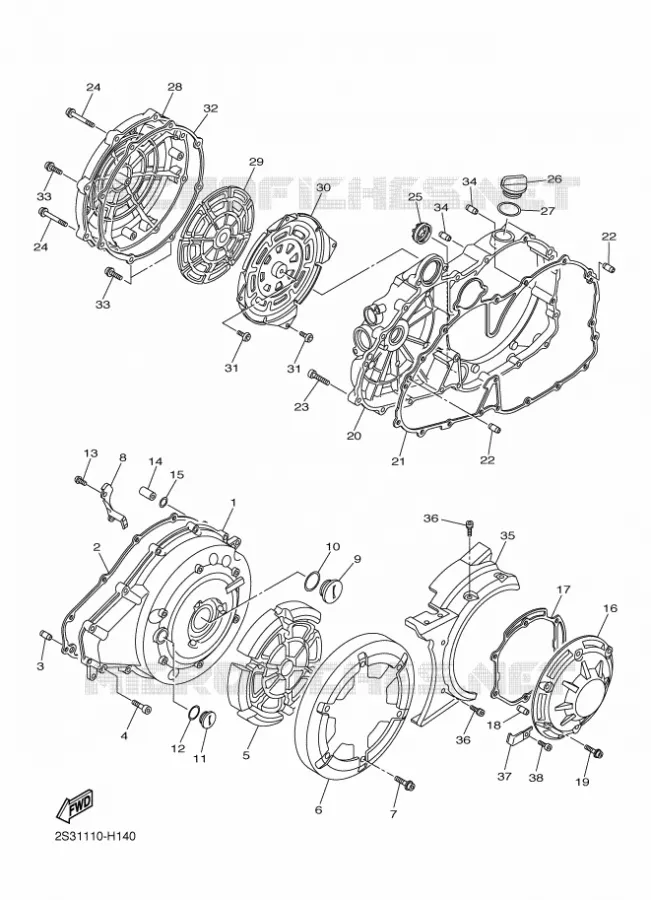

| # 1 |
2S3-15411-00 2S31541100 2S31541100 |
COVER, CRANKCASE 1
|
||||
| # 2 |
2S3-15451-00 2S31545100 2S31545100 |
GASKET, CRANKCASE COVER 1
|
||||
| # 3 |
99530-10114 9953010114 9953010114 |
PIN, DOWEL(3VD)
|
||||
| # 4 |
90110-06295 9131406025009011006295 |
BOLT, SOCKET HEAD
|
||||
| # 5 |
2S3-15326-00 2S31532600 2S31532600 |
DAMPER 2
|
||||
| # 6 |
2S3-15427-00 2S31542700 2S31542700 |
COVER, CAP 2
|
||||
| # 7 |
90110-06326 9011006387009011006326 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 8 |
2S3-15484-00 2S31548400 2S31548400 |
CLAMP 2
|
||||
| # 9 |
90340-32080 9034032080 9034032080 |
PLUG, STRAIGHT SCREW (15A)
|
||||
| # 10 |
93210-32172 9321032172 9321032172 |
O-RING (341)
|
||||
| # 11 |
90340-14117 9034014117 9034014117 |
PLUG, STRAIGHT SCREW(2HT)
|
||||
| # 12 |
93210-14369 9321014369 9321014369 |
O-RING (2H9)
|
||||
| # 13 |
90149-06082 9014906081009014906082 |
SCREW
|
||||
| # 14 |
2S3-15138-00 2S31513800 2S31513800 |
NOZZLE 1
|
||||
| # 15 |
93210-100A9 93210101970093210100A9 |
O-RING (371)
|
||||
| # 16 |
2S3-15421-00 2S31542100 2S31542100 |
COVER, CRANKCASE 2
|
||||
| # 17 |
2S3-15461-00 2S31546100 2S31546100 |
GASKET, CRANKCASE COVER 2
|
||||
| # 18 |
99530-08012 9953008012 9953008012 |
PIN, DOWEL(6G8)
|
||||
| # 19 |
90110-06323 9011006388009011006323 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 20 |
2S3-15431-00 2S31543100 2S31543100 |
COVER, CRANKCASE 3
|
||||
| # 21 |
2S3-15462-00 2S31546200 2S31546200 |
GASKET, CRANKCASE COVER 3
|
||||
| # 22 |
99530-10114 9953010114 9953010114 |
PIN, DOWEL(3VD)
|
||||
| # 23 |
90110-06322 9131406030009011006322 |
BOLT, SOCKET
|
||||
| # 24 |
90110-06262 9011006262 9011006262 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 25 |
2H7-15361-00 2H71536100 2H71536100 |
GAUGE, LEVEL
|
||||
| # 26 |
2S3-15363-00 2S31536300 2S31536300 |
PLUG, OIL
|
||||
| # 27 |
93210-27370 9321027778009321027370 |
O-RING(1KT)
|
||||
| # 28 |
2S3-15414-00 2S31541400 2S31541400 |
COVER, 1
|
||||
| # 29 |
2S3-15316-00 2S31531600 2S31531600 |
DAMPER 1
|
||||
| # 30 |
2S3-15492-00 2S31549200 2S31549200 |
COVER
|
||||
| # 31 |
90149-06069 9014906068009014906069 |
SCREW
|
||||
| # 32 |
2S3-15453-00 2S31545300 2S31545300 |
GASKET
|
||||
| # 33 |
90110-06326 9011006387009011006326 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 34 |
99530-08012 9953008012 9953008012 |
PIN, DOWEL(6G8)
|
||||
| # 35 |
2S3-15415-00 2S31541500 2S31541500 |
COVER, GENERATOR
|
||||
| # 36 |
90110-06247 9131406016009011006247 |
BOLT, SOCKET
|
||||
| # 37 |
90462-10047 9046210047 9046210047 |
CLAMP
|
||||
| # 38 |
90110-06193 9011006193 |
BOLT, SOCKET
|
Contact |
Yamaha VMX17
Cilinderinhoud: 1700 Jaar: 2012 Model code 2S3R Kleur: MAT BLACK 2
