| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
3D8-2177G-02 3D82177G02 3D82177G02 |
BOX, BATTERY
|
||||
| # 2 |
90387-06267 9038706267 9038706267 |
COLLAR
|
||||
| # 3 |
95022-06020 9502206020 9502206020 |
BOLT, FLANGE
|
||||
| # 4 |
51Y-82122-00 51Y8212200 51Y8212200 |
SEAT, BATTERY
|
||||
| # 5 |
5PX-21652-00 5PX2165200 5PX2165200 |
PROTECTOR
|
||||
| # 6 |
3D8-2174Y-00 3D82174Y00 3D82174Y00 |
DAMPER
|
||||
| # 7 |
3D8-2174X-00 3D82174X00 3D82174X00 |
DAMPER
|
||||
| # 8 |
3D8-21779-00 3D82177900 3D82177900 |
DAMPER, LOCATING 2
|
||||
| # 9 |
3D8-28173-10 3D82817310 3D82817310 |
BOX, TOOL
|
||||
| # 10 |
2GH-24185-00 2GH2418500 2GH2418500 |
DAMPER
|
||||
| # 11 |
1AE-2834E-00 1AE2834E00 1AE2834E00 |
DAMPER (L.H)
|
||||
| # 12 |
3L8-82131-01 22F8213100003L88213101 |
BAND, BATTERY
|
||||
| # 13 |
3D8-21711-00-PD 3D82171101PD3D82171100PD |
COVER, SIDE 1
|
||||
| # 14 |
90387-06173 9038706173 9038706173 |
COLLAR
|
||||
| # 15 |
90149-06023 9014906023 9014906023 |
SCREW
|
||||
| # 16 |
3D8-2175T-00 3D82175T00 3D82175T00 |
BRACKET 1
|
||||
| # 17 |
97702-50012 9770750012009770250012 |
SCREW, TRUSS TAP.
|
||||
| # 18 |
5PX-W2470-00 5PXW247000 5PXW247000 |
ROTOR SET
|
||||
| # 19 |
90201-06034 9020106034 9020106034 |
WASHER, PLATE
|
||||
| # 20 |
90105-06639 9502406016009010506639 |
BOLT, FLANGE(2UJ)
|
||||
| # 21 |
27D-2172M-00 27D2172M00 27D2172M00 |
BRACKET 3
|
||||
| # 22 |
92012-06012 9201206012 9201206012 |
BOLT, BUTTON HEAD
|
||||
| # 23 |
90480-12550 9048012550 9048012550 |
GROMMET(3VD)
|
||||
| # 24 |
3D8-21721-00-PD 3D82172101PD3D82172100PD |
COVER, SIDE 2
|
||||
| # 25 |
3MA-27491-00 3MA2749100 3MA2749100 |
PROTECTOR
|
||||
| # 26 |
90387-06173 9038706173 9038706173 |
COLLAR
|
||||
| # 27 |
90111-06038 9011106038 9011106038 |
BOLT
|
||||
| # 28 |
27D-2172N-00 27D2172N00 27D2172N00 |
BRACKET 4
|
||||
| # 29 |
92012-06012 9201206012 9201206012 |
BOLT, BUTTON HEAD
|
||||
| # 30 |
90480-12550 9048012550 9048012550 |
GROMMET(3VD)
|
||||
| # 31 |
90480-18418 9048018495009048018418 |
GROMMET(3AK)
|
||||
| # 32 |
3D8-21741-10 3D82174110 3D82174110 |
COVER, SIDE 4
|
||||
| # 33 |
90387-06184 9038706184 9038706184 |
COLLAR
|
||||
| # 34 |
90111-06071 9011106038009011106071 |
BOLT
|
||||
| # 35 |
90464-15195 9046415195 9046415195 |
CLAMP(4FM)
|
||||
| # 36 |
3D8-2176E-10 3D82176E10 3D82176E10 |
PLATE
|
||||
| # 37 |
90269-07077 9026907077 9026907077 |
RIVET(4PH)
|
||||
| # 38 |
3D8-2172K-01 3D82172K01 3D82172K01 |
BRACKET 1
|
||||
| # 39 |
3D8-21778-00 3D82177800 3D82177800 |
DAMPER, LOCATING 1
|
||||
| # 40 |
92012-06012 9201206012 9201206012 |
BOLT, BUTTON HEAD
|
||||
| # 41 |
3D8-2172L-00 3D82172L00 3D82172L00 |
BRACKET 2
|
||||
| # 42 |
92012-06012 9201206012 9201206012 |
BOLT, BUTTON HEAD
|
||||
| # 43 |
90464-17008 9046417008 9046417008 |
CLAMP
|
||||
| # 44 |
3D8-21871-00 3D82187100 3D82187100 |
TANK, RECOVERY
|
||||
| # 45 |
90480-13567 9048013567 9048013567 |
GROMMET(4FU)
|
||||
| # 46 |
90119-06137 9011906137 9011906137 |
BOLT, WITH WASHER
|
||||
| # 47 |
3D8-21875-00 3D82187500 3D82187500 |
CAP
|
||||
| # 48 |
90467-11019 9046711M08009046711019 |
CLIP(72X)
|
||||
| # 49 |
26H-21828-00 26H2182800 26H2182800 |
ELBOW
|
||||
| # 50 |
27D-21826-00 27D2182600 27D2182600 |
PIPE, BREATHER
|
||||
| # 51 |
904670800300 904670800300904670800300 |
CLIP 101235600
|
||||
| # 52 |
90445-09097 90445090F6009044509097 |
HOSE (L1500)
|
||||
| # 53 |
27D-24796-00 27D2479600 27D2479600 |
COVER
|
||||
| # 54 |
27D-28100-00 27D2810000 27D2810000 |
TOOL KIT
|
||||
| # 55 |
3D8-28110-00 3D82811001003D82811000 |
TOOL KIT 2
|
||||
| # 56 |
2SS-28199-F2 2SS28199F2 2SS28199F2 |
MANUEL D'UTILISATION
|
Contact |

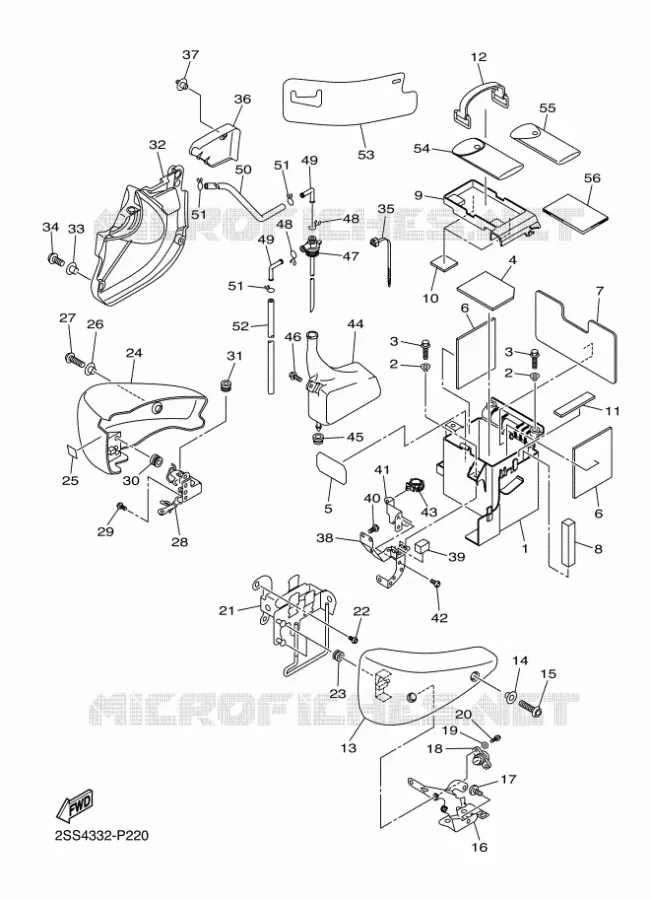

Yamaha XVS1300CU
Cilinderinhoud: 1300 Jaar: 2016 Model code 2SS8 Kleur: MAT GRAY METALLIC 3
