| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

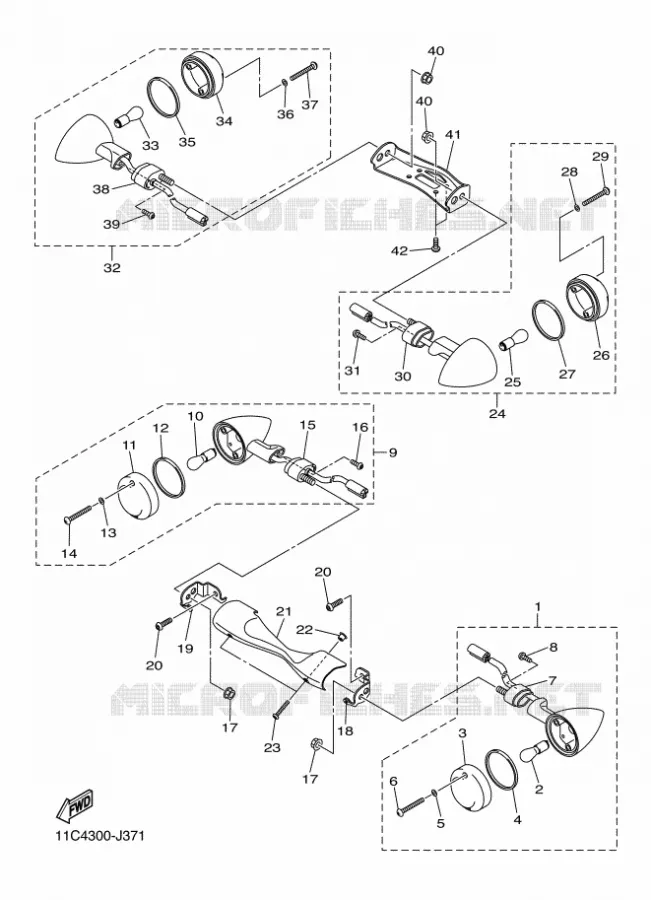

| # 1 |
11C-83310-00 11C8331000 11C8331000 |
FRONT FLASHER LIGHT ASSY 1
|
||||
| # 2 |
3D8-83311-00 59C8331100003D88331100 |
BULB, FLASHER (12V PY21W)
|
||||
| # 3 |
3D8-83312-00 3D88331200 3D88331200 |
LENS, FLASHER
|
||||
| # 4 |
3D8-83313-00 3D88331300 3D88331300 |
GASKET, FLASHER LENS
|
||||
| # 5 |
3D8-83348-00 3D88334800 3D88334800 |
WASHER
|
||||
| # 6 |
97702-40630 9778040130009770240630 |
YBS83-430 SCREW, PANH. TAPPING
|
||||
| # 7 |
3D8-83369-00 3D88336900 3D88336900 |
STAY, FLASHER 2
|
||||
| # 8 |
97702-40514 9770740614009770240514 |
SCREW, PAN TAP.2 SLIT
|
||||
| # 9 |
11C-83320-00 11C8332000 11C8332000 |
FRONT FLASHER LIGHT ASSY 2
|
||||
| # 10 |
3D8-83311-00 59C8331100003D88331100 |
BULB, FLASHER (12V PY21W)
|
||||
| # 11 |
3D8-83312-00 3D88331200 3D88331200 |
LENS, FLASHER
|
||||
| # 12 |
3D8-83313-00 3D88331300 3D88331300 |
GASKET, FLASHER LENS
|
||||
| # 13 |
3D8-83348-00 3D88334800 3D88334800 |
WASHER
|
||||
| # 14 |
97702-40630 9778040130009770240630 |
YBS83-430 SCREW, PANH. TAPPING
|
||||
| # 15 |
3D8-83369-00 3D88336900 3D88336900 |
STAY, FLASHER 2
|
||||
| # 16 |
97702-40514 9770740614009770240514 |
SCREW, PAN TAP.2 SLIT
|
||||
| # 17 |
95702-10500 9570410500009570210500 |
NUT, FLANGE(3BM)
|
||||
| # 18 |
3D8-83318-20 3D88331820 3D88331820 |
STAY, FLASHER 1
|
||||
| # 19 |
3D8-83328-10 3D88332810 3D88332810 |
STAY, FLASHER 2
|
||||
| # 20 |
90111-08048 9201208016009011108048 |
BOLT, BUTTON HEAD
|
||||
| # 21 |
3D8-23122-10 3D82312210 3D82312210 |
COVER, OUTER 1
|
||||
| # 22 |
90387-06255 9038706255 9038706255 |
COLLAR
|
||||
| # 23 |
90111-05024 9011105024 9011105024 |
BOLT, HEX. SOCKET BUTTON
|
||||
| # 24 |
3D8-83330-10 3D88333010 3D88333010 |
REAR FLASHER LIGHT ASSY 1
|
||||
| # 25 |
3D8-83311-00 59C8331100003D88331100 |
BULB, FLASHER (12V PY21W)
|
||||
| # 26 |
3D8-83312-00 3D88331200 3D88331200 |
LENS, FLASHER
|
||||
| # 27 |
3D8-83313-00 3D88331300 3D88331300 |
GASKET, FLASHER LENS
|
||||
| # 28 |
3D8-83348-00 3D88334800 3D88334800 |
WASHER
|
||||
| # 29 |
97702-40630 9778040130009770240630 |
YBS83-430 SCREW, PANH. TAPPING
|
||||
| # 30 |
3D8-83369-00 3D88336900 3D88336900 |
STAY, FLASHER 2
|
||||
| # 31 |
97702-40514 9770740614009770240514 |
SCREW, PAN TAP.2 SLIT
|
||||
| # 32 |
3D8-83340-10 3D88334010 3D88334010 |
REAR FLASHER LIGHT ASSY 2
|
||||
| # 33 |
3D8-83311-00 59C8331100003D88331100 |
BULB, FLASHER (12V PY21W)
|
||||
| # 34 |
3D8-83312-00 3D88331200 3D88331200 |
LENS, FLASHER
|
||||
| # 35 |
3D8-83313-00 3D88331300 3D88331300 |
GASKET, FLASHER LENS
|
||||
| # 36 |
3D8-83348-00 3D88334800 3D88334800 |
WASHER
|
||||
| # 37 |
97702-40630 9778040130009770240630 |
YBS83-430 SCREW, PANH. TAPPING
|
||||
| # 38 |
3D8-83369-00 3D88336900 3D88336900 |
STAY, FLASHER 2
|
||||
| # 39 |
97702-40514 9770740614009770240514 |
SCREW, PAN TAP.2 SLIT
|
||||
| # 40 |
95702-10500 9570410500009570210500 |
NUT, FLANGE(3BM)
|
||||
| # 41 |
3D8-83368-00 3D88336800 3D88336800 |
STAY, FLASHER 1
|
||||
| # 42 |
90111-06016 9011106031009011106016 |
BOLT
|
Yamaha XVS1300A
Cilinderinhoud: 1300 Jaar: 2010 Model code 11C4 Kleur: VIVID PURPLISH BLUE COCKTAIL 5
