| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5JW-16150-00 5JW1615000 5JW1615000 |
PRIMARY DRIVEN GEAR COMP.
|
||||
| # 2 |
5JW-16154-00 5JW1615400 5JW1615400 |
PLATE, THRUST 1
|
||||
| # 3 |
3P6-16371-10 3P61637110 3P61637110 |
BOSS, CLUTCH
|
||||
| # 4 |
2D2-16384-00 2D21638400 2D21638400 |
PLATE, SEAT
|
||||
| # 4 |
2D2-16384-10 2D21638410 2D21638410 |
PLATE, SEAT
|
||||
| # 4 |
2D2-16384-20 2D21638420 2D21638420 |
PLATE, SEAT
|
||||
| # 5 |
3P6-16383-00 3P61638300 3P61638300 |
SPRING, CLUTCH BOSS
|
||||
| # 6 |
4XV-16331-00 4XV1633100 4XV1633100 |
PLATE, FRICTION 2
|
||||
| # 7 |
2H7-16325-00 2H71632510002H71632500 |
DISQUE 2, EMBRAYAGE
|
||||
| # 8 |
5JW-16321-00 5JW1632110005JW1632100 |
PLATE, FRICTION
|
||||
| # 9 |
2H7-16325-00 2H71632510002H71632500 |
DISQUE 2, EMBRAYAGE
|
||||
| # 10 |
4XV-16351-00 4XV1635100 4XV1635100 |
PLATE, PRESSURE 1
|
||||
| # 11 |
36Y-16335-00 36Y1633500 36Y1633500 |
HOUSING, SPRING
|
||||
| # 12 |
5JW-16334-00 5JW1633400 5JW1633400 |
SPRING, CLUTCH 2
|
||||
| # 13 |
1TX-16352-00 1TX1635200 1TX1635200 |
PLATE, PRESSURE 2
|
||||
| # 14 |
95812-06025 9581706025009581206025 |
BOLT, FLANGE
|
||||
| # 15 |
93306-00304 9330600315009330600304 |
BEARING(2JN)
|
||||
| # 16 |
341-16321-13 3411632113 3411632113 |
PLATE, FRICTION (447)
|
||||
| # 17 |
3P6-16587-00 3P61658700 3P61658700 |
SPRING, SHOCK ABSO
|
||||
| # 18 |
3P6-16183-00 3P61618300 3P61618300 |
SPACER 3
|
||||
| # 19 |
90387-28002 9038728002 9038728002 |
COLLAR
|
||||
| # 20 |
5JW-16181-00 1MC1618100005JW1618100 |
SPACER 1
|
||||
| # 21 |
90215-25218 9021525218 9021525218 |
WASHER, LOCK (26H)
|
||||
| # 22 |
90170-20323 9017020323 9017020323 |
NUT (26H)
|
||||
| # 23 |
93109-08061 9310908061 9310908061 |
OIL SEAL(12E)
|
||||
| # 24 |
3P6-16357-00 3P61635700 3P61635700 |
ROD, PUSH 2
|
||||
| # 25 |
93511-32017 9351132027009351132017 |
BALL (498)
|
||||
| # 26 |
4KG-16356-00 4KG1635600 4KG1635600 |
ROD, PUSH 1
|
||||
| # 27 |
93210-06422 9321006632009321006422 |
O-RING (26H)
|
||||
| # 28 |
2D2-16381-10 2D21638110 2D21638110 |
PUSH LEVER COMP.
|
||||
| # 29 |
99530-08012 9953008012 9953008012 |
PIN, DOWEL(6G8)
|
||||
| # 30 |
90109-06015 9010906015 9010906015 |
BOLT
|

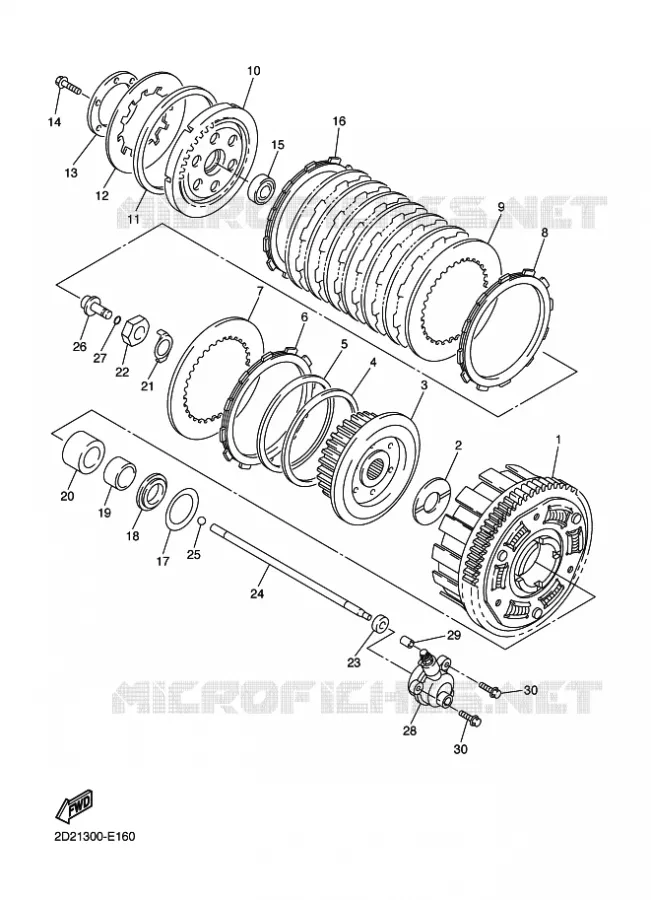

Yamaha FJR1300AS
Cilinderinhoud: 1300 Jaar: 2010 Model code 1DA5 Kleur: BLACK METALLIC X
