| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
3D8-21510-00-P1 3D82151000P1 |
FRONT FENDER COMP.
|
Contact | |||
| # 2 |
95812-08020 9581208020 9581208020 |
BOLT, FLANGE
|
||||
| # 3 |
11C-21587-00 11C2158700 11C2158700 |
STAY 1
|
||||
| # 4 |
11C-21588-00 11C2158800 11C2158800 |
STAY 2
|
||||
| # 5 |
3D8-21597-00 3D82159700 3D82159700 |
HOLDER, WIRE 1
|
||||
| # 6 |
3D8-21598-00 3D82159800 3D82159800 |
HOLDER, WIRE 2
|
||||
| # 7 |
90111-06016 9011106031009011106016 |
BOLT
|
||||
| # 8 |
3D8-21610-00-P1 3D82161000P1 3D82161000P1 |
REAR FENDER COMP.
|
||||
| # 9 |
90464-16021 9046416021 9046416021 |
CLAMP (1J7)
|
||||
| # 10 |
90480-01015 9048001015 9048001015 |
GROMMET
|
||||
| # 11 |
5PX-21669-01 5PX2166901 5PX2166901 |
SEAL
|
||||
| # 12 |
3D8-21747-00 3D82174700 3D82174700 |
DAMPER
|
||||
| # 13 |
3D8-2164F-10 3D82164F10 3D82164F10 |
STAY 1
|
||||
| # 14 |
3D8-2164G-10 3D82164G10 3D82164G10 |
STAY 2
|
||||
| # 15 |
90111-08033 9011108033 9011108033 |
BOLT
|
||||
| # 16 |
3D8-21629-00-P1 3D82162901P13D82162900P1 |
GUARD, MUD
|
||||
| # 17 |
3D8-21621-00 3D82162100 3D82162100 |
FLAP
|
||||
| # 18 |
3D8-21638-00 3D82163800 3D82163800 |
DAMPER 1
|
||||
| # 19 |
3D8-21639-00 3D82163900 3D82163900 |
DAMPER 2
|
||||
| # 20 |
3D8-21649-00 3D82164900 3D82164900 |
DAMPER
|
||||
| # 21 |
3D8-21652-00 3D82165200 3D82165200 |
PROTECTOR
|
||||
| # 22 |
90269-07077 9026907077 9026907077 |
RIVET(4PH)
|
||||
| # 23 |
1D6-2153E-00 1D62153E01001D62153E00 |
EMBLEM, YAMAHA
|
||||
| # 24 |
1D7-21668-00 1D72166800 1D72166800 |
LABEL, TIRE
|

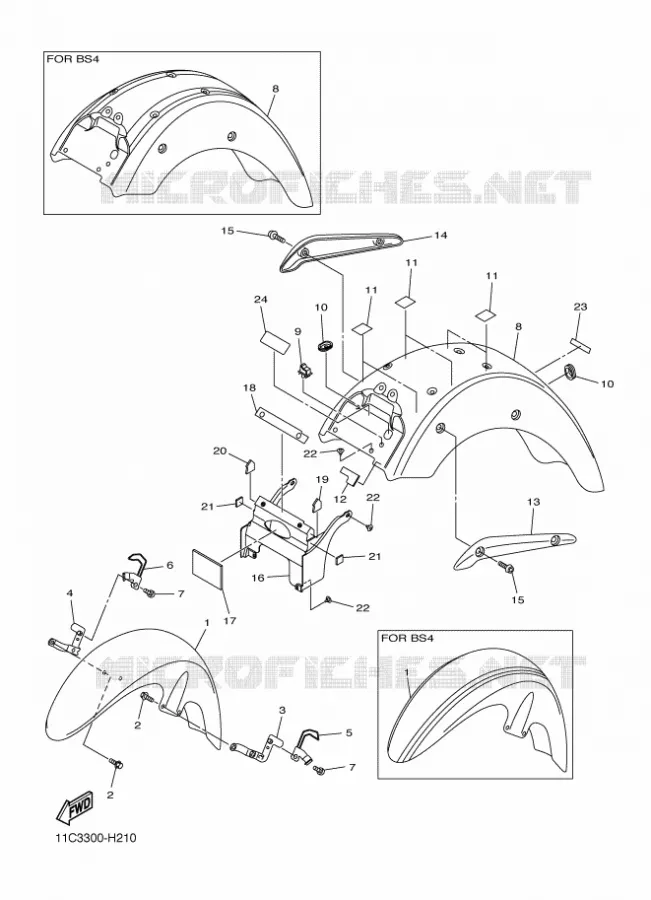

Yamaha XVS1300A MIDNIGHT STAR
Cilinderinhoud: 1300 Jaar: 2009 Model code 11C3 Kleur: DARK PURPLISH BLUE METALLIC L
