| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
2PE-F1110-00-33 2PEF11100033 |
FRAME COMP.
|
Contact | |||
| # 2 |
52S-F2124-00 52SF212400 52SF212400 |
BUSH 2
|
||||
| # 3 |
52S-F1481-00 52SF148100 52SF148100 |
BOLT, ENGINE MOUNT
|
||||
| # 4 |
95602-14200 9560714200009560214200 |
NUT, SELF-LOCKING (8BF)
|
||||
| # 5 |
52S-F1459-00 52SF145900 52SF145900 |
SPACER
|
||||
| # 6 |
90338-33800 9033833800 9033833800 |
PLUG
|
||||
| # 7 |
1DK-F110G-00 1DKF110G01001DKF110G00 |
CONDUIT 2
|
||||
| # 8 |
90387-068M8 90387068M8 90387068M8 |
COLLAR
|
||||
| # 9 |
95702-06500 9578006500009570206500 |
NUT, FLANGE(7NB)
|
||||
| # 10 |
1DK-XF128-20 1DKXF12820 1DKXF12820 |
BRACKET
|
||||
| # 11 |
5ML-F1639-00 5MLF163900 5MLF163900 |
. AMORTISSEUR 2
|
Contact | |||
| # 12 |
90520-02828 9052002828 9052002828 |
DAMPER, PLATE
|
||||
| # 13 |
95827-08014 9581708014009582708014 |
BOLT, FLANGE
|
||||
| # 14 |
1DK-F1415-00 1DKF141500 1DKF141500 |
BRACKET, FRONT UPP
|
||||
| # 15 |
95807-06010 9581706010009580706010 |
BOLT, FLANGE
|
||||
| # 16 |
1DK-F114V-00 1DKF114V00 1DKF114V00 |
BRACKET 11
|
||||
| # 17 |
95807-06010 9581706010009580706010 |
BOLT, FLANGE
|
||||
| # 18 |
1DK-F4115-01 1DKF411501 1DKF411501 |
STAY, FUEL TANK 1
|
||||
| # 19 |
95822-06055 9581706055009582206055 |
BOLT, FLANGE
|
||||
| # 20 |
5ML-F1541-00 5MLF154100 5MLF154100 |
DAMPER 1
|
||||
| # 21 |
28B-F113B-00 28BF113B00 28BF113B00 |
DAMPER
|
||||
| # 22 |
4C7-F1541-00 4C7F154100 4C7F154100 |
DAMPER 1
|
||||
| # 23 |
5ML-F139X-00 5MLF139X00 5MLF139X00 |
DAMPER
|
Contact | |||
| # 24 |
5ML-F8100-00 5MLF810000 5MLF810000 |
TOOL KIT
|

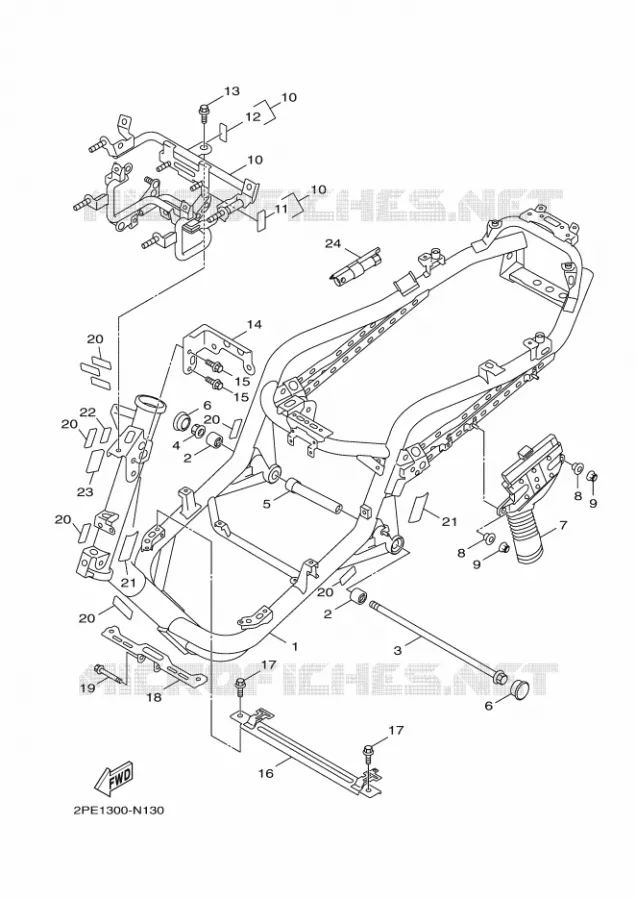

Yamaha XC125R
Cilinderinhoud: 125 Jaar: 2014 Model code 2PE1 Kleur: MAT TITAN 1
