| # 1 |
5B2-F4730-80 5B2F473080 5B2F473080 |
DBL.SEAT ASSY
|
||||
| # 2 |
5B2-F4731-80 5B2F473180 5B2F473180 |
COVER SEAT
|
||||
| # 3 |
5B2-F475M-00 5B2F475M00 5B2F475M00 |
JOINT
|
Contact | |||
| # 4 |
5B2-F4790-80 5B2F479080 5B2F479080 |
SEAT, BACK ASSY
|
||||
| # 5 |
3VL-F4741-00 3VLF474100 3VLF474100 |
PAD, SEAT
|
||||
| # 6 |
1S6-F4741-00 1S6F474100 1S6F474100 |
PAD, SEAT
|
||||
| # 7 |
5B2-F4176-00 5B2F417600 5B2F417600 |
BOLT 1
|
Contact | |||
| # 8 |
90105-06X00 9502206016009010506X00 |
BOLT, FLANGE
|
||||
| # 9 |
5B2-F473R-10 5B2F473R10 5B2F473R10 |
BOX 1
|
||||
| # 10 |
5B2-F473S-00 5B2F473S00 5B2F473S00 |
BOX 2
|
||||
| # 11 |
90167-05X01 9016705X01 9016705X01 |
SCREW, TAPPING
|
||||
| # 12 |
5B2-F8371-00 5B2F837100 5B2F837100 |
DAMPER
|
Contact | |||
| # 13 |
4SB-F174X-70 4SBF174X70 4SBF174X70 |
DAMPER
|
||||
| # 14 |
90105-06X00 9502206016009010506X00 |
BOLT, FLANGE
|
||||
| # 15 |
90105-06X02 9010506X02 9010506X02 |
BOLT, WASHER BASED
|
Contact | |||
| # 16 |
90201-06X26 9020106X26 9020106X26 |
RONDELLE, PLATE
|
Contact | |||
| # 17 |
90183-05X03 9018305X03 9018305X03 |
NUT SPRING
|
||||
| # 18 |
90183-05X03 9018305X03 9018305X03 |
NUT SPRING
|
||||
| # 19 |
90183-06X00 9018306X00 9018306X00 |
NUT, SPRING
|
||||
| # 20 |
5B2-F1623-01 5B2F162301 5B2F162301 |
PLATE FLAP FITTING
|
||||
| # 21 |
90167-05X02 9016705X02 9016705X02 |
SCREW, TAPPING
|
||||
| # 22 |
5B2-F844B-00 5B2F844B00 5B2F844B00 |
LID 1
|
||||
| # 23 |
4SB-F174X-00 4SBF174X00 4SBF174X00 |
DAMPER
|
||||
| # 24 |
90167-05X01 9016705X01 9016705X01 |
SCREW, TAPPING
|
||||
| # 25 |
5HT-F4780-10 5HTF478010 5HTF478010 |
SEAT LOCK ASSY
|
||||
| # 26 |
16P-F478D-00 16PF478D00 16PF478D00 |
SEAT LOCK ASSY
|
||||
| # 27 |
90111-05X05 9011105X05 9011105X05 |
BOLT HEX
|
Contact | |||
| # 28 |
90111-06X05 9011106X05 9011106X05 |
BOLT, HEXAGON SOCKET BUTT
|
Contact | |||
| # 29 |
4KH-H3936-01 4KHH393601 4KHH393601 |
BAND, SWITCH CORD
|
||||
| # 30 |
5B2-F4773-00 5B2F477300 5B2F477300 |
HANDLE SEAT
|
||||
| # 31 |
90111-08X05 9011108X05 9011108X05 |
BOLT
|
||||
| # 32 |
90201-08X23 9020108X23 9020108X23 |
WASHER, PLAIN
|
||||
| # 33 |
5B2-F4375-00 5B2F437500 5B2F437500 |
GROMMET
|
||||
| # 34 |
5B2-F476U-00 5B2F476U00 5B2F476U00 |
PROTECTOR
|
||||
| # 35 |
5B2-F1624-00 5B2F162400 5B2F162400 |
PLATE, FLAP FITTING
|
||||
| # 36 |
5B2-F1238-00 5B2F123800 5B2F123800 |
BRACKET
|
||||
| # 37 |
90157-05X08 9015705X08 9015705X08 |
SCREW, PAN HEAD
|
||||
| # 38 |
90201-05X09 9020105X09 9020105X09 |
WASHER, PLATE
|
||||
| # 39 |
5B2-F476V-00 5B2F476V00 5B2F476V00 |
PROTECTOR 2
|
||||
| # 40 |
16P-F118N-00 16PF118N00 16PF118N00 |
LABEL
|
Contact | |||
| # 41 |
16P-F8199-F2 16PF8199F2 16PF8199F2 |
MANUEL D'UTILISATION
|
Contact | |||
| # 41 |
16P-F8199-G2 16PF8199G2 16PF8199G2 |
MANUEL D'UTILISATION
|
Contact | |||
| # 41 |
16P-F8199-H2 16PF8199H2 16PF8199H2 |
MANUEL D'UTILISATION
|
Contact | |||
| # 41 |
16P-F8199-S2 16PF8199S2 16PF8199S2 |
MANUEL D'UTILISATION
|
Contact |

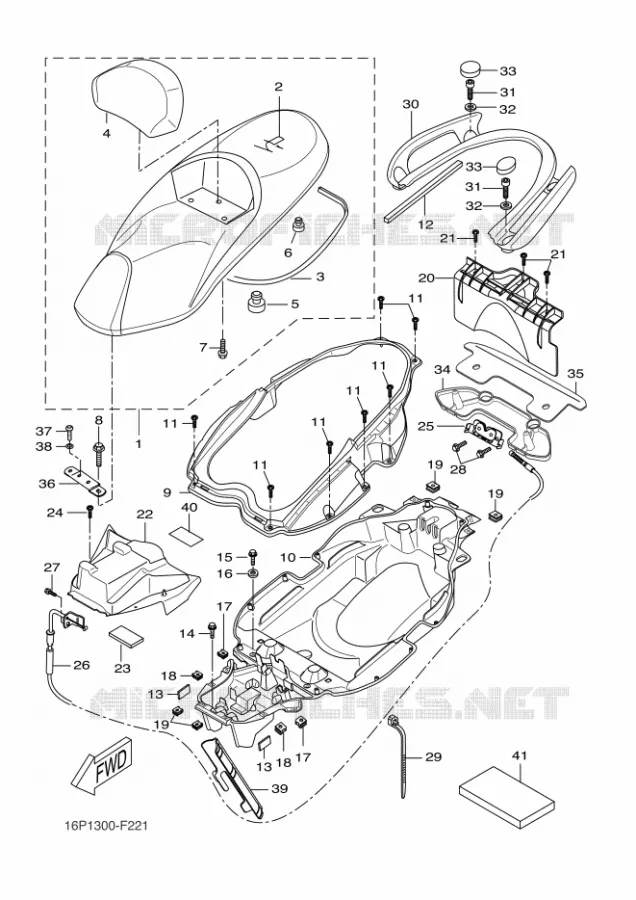

Yamaha VP125 XCITY
Cilinderinhoud: 125 Jaar: 2012 Model code 16PA Kleur: BLUISH WHITE COCKTAIL 1
