| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

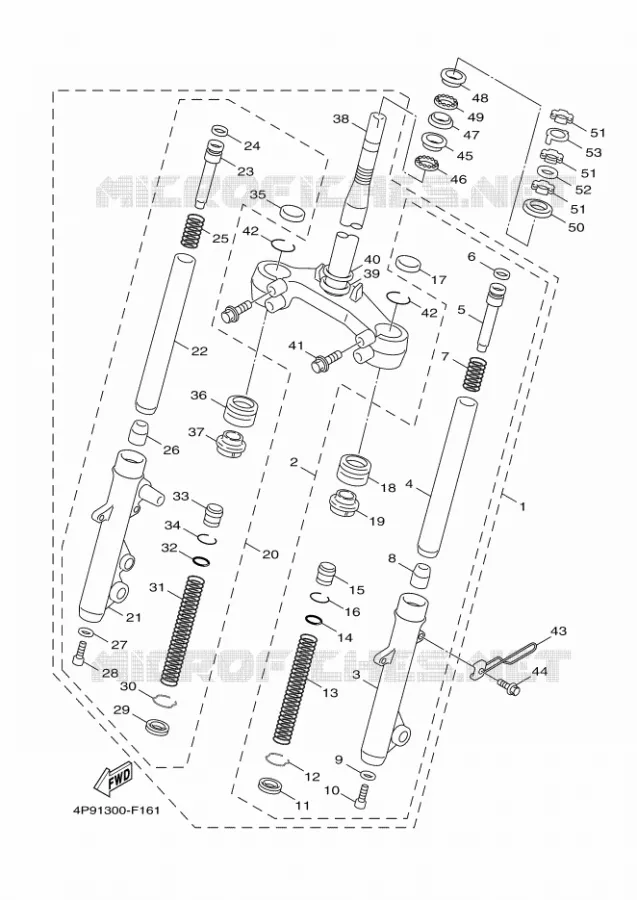

| # 1 |
4P9-F3100-10 4P9F310010 4P9F310010 |
FRONT FORK ASSY
|
||||
| # 2 |
4P9-F3102-10 4P9F310210 4P9F310210 |
FRONT FORK ASSY (L
|
||||
| # 3 |
4P9-F3126-10 4P9F312610 4P9F312610 |
TUBE, OUTER (LEFT)
|
||||
| # 4 |
4P9-F3110-00 4P9F311000 4P9F311000 |
INNER TUBE COMP.1
|
||||
| # 5 |
4P9-F3142-00 4P9F314200 4P9F314200 |
SEAT, SPRING UPPER
|
||||
| # 6 |
4P9-F318X-00 4P9F318X00 4P9F318X00 |
PISTON RING
|
||||
| # 7 |
4P9-F3151-00 4P9F315100 4P9F315100 |
SPRING, REBOUND
|
||||
| # 8 |
4P9-F3171-00 4P9F317100 4P9F317100 |
PISTON, FRONT FORK
|
||||
| # 9 |
4P9-F3158-00 4P9F315800 4P9F315800 |
GASKET
|
||||
| # 10 |
4P9-F3181-00 4P9F318100 4P9F318100 |
BOLT, HEXAGON SOCK
|
||||
| # 11 |
4C6-F3145-00 4C6F314500 4C6F314500 |
OIL SEAL
|
||||
| # 12 |
4P9-F3157-00 4P9F315700 4P9F315700 |
RING, PISTON
|
||||
| # 13 |
4P9-F3141-00 4P9F314100 4P9F314100 |
SPRING, FRONT FORK
|
||||
| # 14 |
4C6-F3147-00 4C6F314700 4C6F314700 |
O-RING
|
||||
| # 15 |
4P9-F3113-00 4P9F311300 4P9F311300 |
COLLAR
|
||||
| # 16 |
4P9-F3155-00 4P9F315500 4P9F315500 |
RING, FELT
|
||||
| # 17 |
4P9-F3154-00 4P9F315400 4P9F315400 |
PLUG, INNER TUBE
|
||||
| # 18 |
4P9-F331G-00 4P9F331G00 4P9F331G00 |
COVER
|
||||
| # 19 |
4P9-F3191-00 4P9F319100 4P9F319100 |
BOOT
|
||||
| # 20 |
4P9-F3103-10 4P9F310310 4P9F310310 |
FRONT FORK ASSY (R
|
||||
| # 21 |
4P9-F3136-10 4P9F313610 4P9F313610 |
TUBE, OUTER (RIGHT
|
||||
| # 22 |
4P9-F3110-00 4P9F311000 4P9F311000 |
INNER TUBE COMP.1
|
||||
| # 23 |
4P9-F3142-00 4P9F314200 4P9F314200 |
SEAT, SPRING UPPER
|
||||
| # 24 |
4P9-F318X-00 4P9F318X00 4P9F318X00 |
PISTON RING
|
||||
| # 25 |
4P9-F3151-00 4P9F315100 4P9F315100 |
SPRING, REBOUND
|
||||
| # 26 |
4P9-F3171-00 4P9F317100 4P9F317100 |
PISTON, FRONT FORK
|
||||
| # 27 |
4P9-F3158-00 4P9F315800 4P9F315800 |
GASKET
|
||||
| # 28 |
4P9-F3181-00 4P9F318100 4P9F318100 |
BOLT, HEXAGON SOCK
|
||||
| # 29 |
4C6-F3145-00 4C6F314500 4C6F314500 |
OIL SEAL
|
||||
| # 30 |
4P9-F3157-00 4P9F315700 4P9F315700 |
RING, PISTON
|
||||
| # 31 |
4P9-F3141-00 4P9F314100 4P9F314100 |
SPRING, FRONT FORK
|
||||
| # 32 |
4C6-F3147-00 4C6F314700 4C6F314700 |
O-RING
|
||||
| # 33 |
4P9-F3113-00 4P9F311300 4P9F311300 |
COLLAR
|
||||
| # 34 |
4P9-F3155-00 4P9F315500 4P9F315500 |
RING, FELT
|
||||
| # 35 |
4P9-F3154-00 4P9F315400 4P9F315400 |
PLUG, INNER TUBE
|
||||
| # 36 |
4P9-F331G-00 4P9F331G00 4P9F331G00 |
COVER
|
||||
| # 37 |
4P9-F3191-00 4P9F319100 4P9F319100 |
BOOT
|
||||
| # 38 |
4P9-F3340-00 4P9F334000 4P9F334000 |
UNDER BRACKET COMP
|
||||
| # 39 |
3KW-F3462-00 3KWF346200 3KWF346200 |
SEAL, STEERING
|
||||
| # 40 |
1MH-F3411-00 4C6F341110001MHF341100 |
RACE, BALL 1
|
||||
| # 41 |
4P9-F3346-00 4P9F334600 4P9F334600 |
BOLT 1
|
||||
| # 42 |
4P9-F3153-00 4P9F315300 4P9F315300 |
RING, SNAP
|
||||
| # 43 |
5ML-F3317-00 5MLF331700 5MLF331700 |
HOLDER, CABLE
|
||||
| # 44 |
9580L-06010 9580L06010 9580L06010 |
BOLT, FLG
|
||||
| # 45 |
4C6-F3412-00 4C6F341200 4C6F341200 |
RACE, BALL 2
|
||||
| # 46 |
4C6-F341E-00 4C6F341E00 4C6F341E00 |
RETAINER, BALL BEARING
|
||||
| # 47 |
4C6-F3414-00 4C6F341400 4C6F341400 |
RACE, BALL 4
|
||||
| # 48 |
4C6-F3413-00 4C6F341300 4C6F341300 |
RACE, BALL 3
|
||||
| # 49 |
4C6-F341D-00 4C6F341D00 4C6F341D00 |
RETAINER, BALL BEARING 2
|
||||
| # 50 |
4C6-F3416-00 4C6F341600 4C6F341600 |
COVER, BALL RACE 2
|
||||
| # 51 |
90179-25811 9017925811 9017925811 |
NUT
|
||||
| # 52 |
90202-26142 9020226142 9020226142 |
WASHER, PLATE (26H)
|
||||
| # 53 |
4VP-F3418-00 4VPF341800 4VPF341800 |
WASHER, SPECIAL
|
