| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
1P3-E1102-00 1P3E110200 1P3E110200 |
CYLINDER HEAD ASSY
|
||||
| # 2 |
1P3-E1133-00 1P3E113300 1P3E113300 |
GUIDE, SOUPAPE 1
|
Contact | |||
| # 3 |
1P3-E1134-00 1P3E113400 1P3E113400 |
GUIDE, SOUPAPE 2
|
Contact | |||
| # 4 |
90116-08806 9011608806 9011608806 |
BOLT, STUD
|
||||
| # 5 |
90153-06803 9015306029009015306803 |
SCREW
|
||||
| # 6 |
90430-06014 9043006014 9043006014 |
GASKET 256113960000
|
Contact | |||
| # 7 |
90113-06803 9011306803 9011306803 |
BOULON, BLOCAGE
|
Contact | |||
| # 8 |
5ML-E1160-00 5MLE116000 5MLE116000 |
BREATHER ASSY
|
||||
| # 9 |
5ML-E1185-00 5MLE118500 5MLE118500 |
COVER, CYLINDER HE
|
||||
| # 10 |
5ML-E1165-00 5MLE116500 5MLE116500 |
PLATE, BREATHER
|
||||
| # 11 |
97527-06512 9752706512 9752706512 |
BOLT, WITH WASHER(N30)
|
||||
| # 12 |
4CW-E1155-00 4CWE115500 4CWE115500 |
SEAL, LABYRINTH
|
||||
| # 13 |
93210-71462 9321071462 9321071462 |
O-RING (5G2)
|
||||
| # 14 |
95027-06020 9502706020 9502706020 |
BOLT, FLANGE(6U1)
|
||||
| # 15 |
5ML-E1186-00 5MLE118600 5MLE118600 |
COVER, CYLINDER HE
|
||||
| # 16 |
93210-54003 9321054008009321054003 |
O-RING
|
||||
| # 17 |
90201-08609 9020108609 9020108609 |
WASHER, PLATE
|
||||
| # 18 |
90176-08816 9017608816 9017608816 |
NUT, CROWN
|
||||
| # 19 |
94701-00840 9470100353009470100840 |
PLUG, SPARK (CR7E)
|
||||
| # 20 |
5ML-E1181-00 5MLE118100 5MLE118100 |
GASKET, CYLINDER H
|
||||
| # 21 |
91810-14807 9181014807 9181014807 |
PIN, DOWEL
|
||||
| # 22 |
91810-14807 9181014807 9181014807 |
PIN, DOWEL
|
||||
| # 23 |
91317-06100 9131706100 9131706100 |
BOLT, SOCKET HEAD
|
||||
| # 24 |
5ML-E1311-00 5MLE131100 5MLE131100 |
CYLINDER 1
|
||||
| # 25 |
5ML-E1351-01 5MLE135120005MLE135101 |
GASKET, CYLINDER
|
||||
| # 26 |
5ML-E4987-00 5MLE498700 5MLE498700 |
DURITE
|
Contact | |||
| # 27 |
90467-13042 9046713042 9046713042 |
JONC
|
Contact | |||
| # 28 |
95027-06016 9010506696009502706016 |
BOLT, WASHER BASED(JA9)
|
||||
| # 29 |
5ML-E1391-00 5MLE139100 5MLE139100 |
BOLT, STUD 1
|
||||
| # 30 |
5ML-E1392-00 5MLE139200 5MLE139200 |
BOLT, STUD 2
|

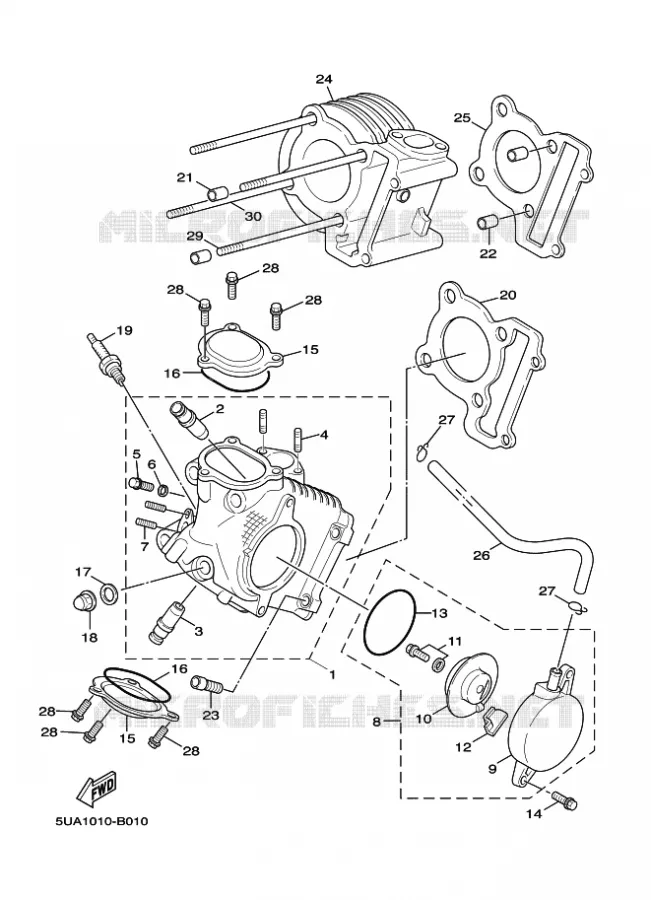

Yamaha XC125 FLAME X
Cilinderinhoud: 125 Jaar: 2005 Model code 5ML9 Kleur: LIGHT YELLOWISH GRAY ME 9
