| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
1C3-16111-00 1C31611100 1C31611100 |
GEAR, PRIMARY DRIVE
|
||||
| # 2 |
90387-172K2 90387172K2 90387172K2 |
COLLAR(3DL)
|
||||
| # 3 |
90105-08071 9010508071 9010508071 |
BOLT, FLANGE
|
||||
| # 4 |
1C3-16150-00 1C31615000 1C31615000 |
PRIMARY DRIVEN GEAR COMP.(74T)
|
||||
| # 5 |
5NY-16371-00 5NY1637100 5NY1637100 |
BOSS, CLUTCH
|
||||
| # 6 |
3XJ-16324-01 3XJ1632410003XJ1632401 |
DISQUE 1, EMBRAYAGE
|
||||
| # 7 |
3XJ-16321-00 3XJ1632100 3XJ1632100 |
PLATE, FRICTION
|
||||
| # 8 |
5HD-16351-00 5HD1635100 5HD1635100 |
PLATE, PRESSURE 1
|
||||
| # 9 |
90501-23598 9050123598 9050123598 |
SPRING, COMPRESSION (4H7)
|
||||
| # 10 |
90159-06016 9015906016 9015906016 |
SCREW, WITH WASHER (1W4)
|
||||
| # 11 |
90201-20611 90201204K8009020120611 |
WASHER, PLATE(1HX)
|
||||
| # 12 |
1C3-16181-00 1C31618100 1C31618100 |
SPACER 1
|
||||
| # 13 |
93310-22539 9331022539 9331022539 |
BEARING
|
||||
| # 14 |
90201-20611 90201204K8009020120611 |
WASHER, PLATE(1HX)
|
||||
| # 15 |
90215-16289 9021516289 9021516289 |
WASHER, LOCK(4KB)
|
||||
| # 16 |
90170-16326 9017016326 9017016326 |
NUT, HEXAGON (30X)
|
||||
| # 17 |
5NL-16356-00 5NL1635600 5NL1635600 |
ROD, PUSH 1
|
||||
| # 18 |
93340-21008 9334021008 9334021008 |
BEARING, THRUST(3AY)
|
||||
| # 19 |
90201-080H1 90201080H1 90201080H1 |
WASHER, PLATE (24Y)
|
||||
| # 20 |
93440-07182 9344007182 9344007182 |
CIRCLIP
|
||||
| # 21 |
93511-32027 9351132027 9351132027 |
BALL (498)
|
||||
| # 22 |
1C3-16357-10 1C31635711001C31635710 |
ROD, PUSH 2
|
||||
| # 23 |
1C3-16380-00 1C31638000 1C31638000 |
PUSH LEVER ASSY
|
||||
| # 24 |
93315-11040 9331511040 9331511040 |
BEARING, CYLINDRICAL(50M)
|
||||
| # 25 |
93102-10008 9310210008 9310210008 |
OIL SEAL
|

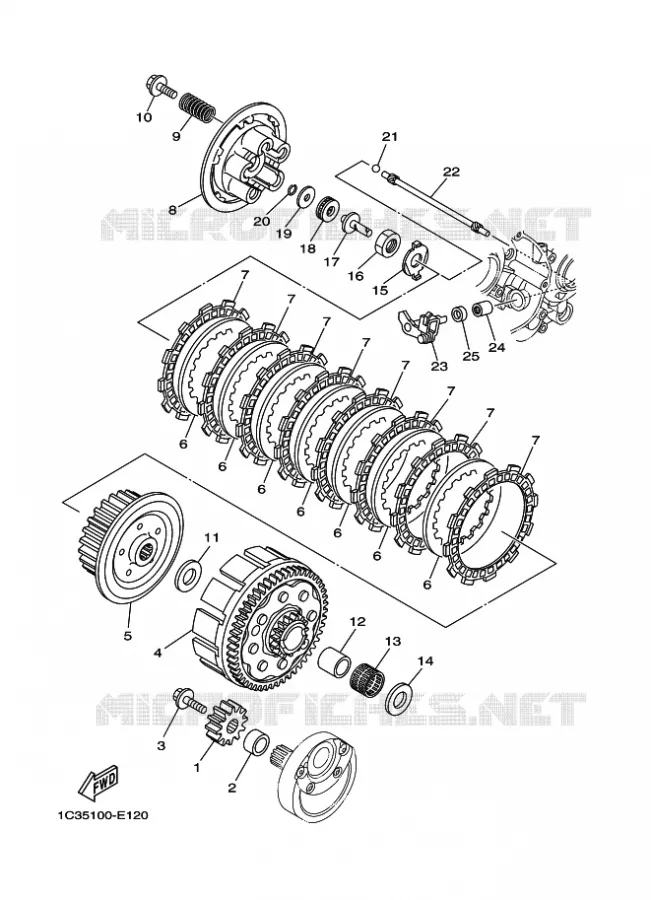

Yamaha YZ125
Cilinderinhoud: 125 Jaar: 2016 Model code 1SRJ Kleur: DEEP PURPLISH BLUE SOLID E
