| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
1PA-E1101-00 1PAE110100 1PAE110100 |
CYLINDER HEAD ASSY
|
||||
| # 2 |
1S7-E1133-10 1S7E113310 1S7E113310 |
GUIDE, INTAKE VALVE
|
||||
| # 3 |
95812-06010 9581206010 9581206010 |
BOLT, FLANGE
|
||||
| # 4 |
90430-06X00 9043006X00 9043006X00 |
GASKET
|
||||
| # 5 |
95612-08640 9561208640 9561208640 |
BOLT, STUD
|
||||
| # 6 |
1PA-E1191-00 1PAE119100 1PAE119100 |
COVER, CYLINDER HE
|
||||
| # 7 |
90105-06X33 9010506X33 9010506X33 |
BOLT, FLANGE
|
||||
| # 8 |
90430-06X00 9043006X00 9043006X00 |
GASKET
|
||||
| # 9 |
5YP-E1193-00 5YPE119300 5YPE119300 |
GASKET, HEAD COVER 1
|
||||
| # 10 |
90105-08850 9010508850 9010508850 |
BOLT, FLANGE
|
||||
| # 11 |
90201-08609 9020108609 9020108609 |
WASHER, PLATE
|
||||
| # 12 |
94701-00X13 9470100410009470100X13 |
PLUG, SPARK (CR9E)
|
||||
| # 13 |
1B9-E1181-01 1B9E118101 1B9E118101 |
GASKET, CYLINDER H
|
||||
| # 14 |
91810-14X00 9953010114009181014X00 |
PIN, DOWEL(3VD)
|
||||
| # 15 |
91810-14X00 9953010114009181014X00 |
PIN, DOWEL(3VD)
|
||||
| # 16 |
91312-06100 9131206100 9131206100 |
BOLT
|
||||
| # 17 |
5D7-E1311-00 5D7E131100 5D7E131100 |
CYLINDER 1
|
||||
| # 18 |
1S7-E1351-00 1S7E135100 1S7E135100 |
GASKET, CYLINDER
|
||||
| # 19 |
95812-06010 9581206010 9581206010 |
BOLT, FLANGE
|
||||
| # 20 |
90430-06X00 9043006X00 9043006X00 |
GASKET
|

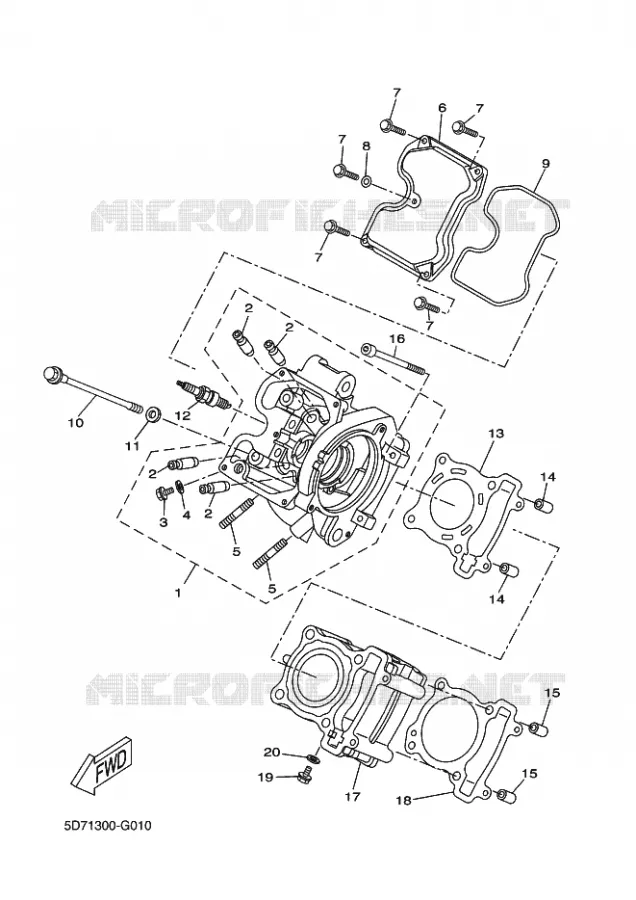

Yamaha YZF-R125A
Cilinderinhoud: 125 Jaar: 2016 Model code 5D7T Kleur: MAT GRAY METALLIC 3
