| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5D7-F1711-00 5D7F171100 5D7F171100 |
COVER, SIDE 1
|
||||
| # 2 |
5D7-F1721-00 5D7F172100 5D7F172100 |
COVER, SIDE 2
|
||||
| # 3 |
90111-06X23 9011106X23 9011106X23 |
BOLT HEX SOCKET
|
||||
| # 4 |
90387-06022 9038706106009038706022 |
COLLAR
|
||||
| # 5 |
5D7-F1731-00-P6 5D7F173100P6 5D7F173100P6 |
COVER SIDE 3 DPBM13
|
||||
| # 6 |
5D7-F1741-00-P6 5D7F174100P6 5D7F174100P6 |
COVER SIDE 4 DPBM13
|
||||
| # 7 |
5D7-F171E-00-PA 5D7F171E00PA 5D7F171E00PA |
COVER SIDE 5 MWM4
|
||||
| # 8 |
90183-05X03 9018305X03 9018305X03 |
NUT SPRING
|
||||
| # 9 |
90202-05X02 9020205X02 9020205X02 |
WASHER, PLAIN
|
||||
| # 10 |
90167-05X06 9016705X06 9016705X06 |
SCREW, TAPPING
|
||||
| # 11 |
90269-06001 9026906001 9026906001 |
RIVET
|
||||
| # 12 |
90269-06008 9026906008 9026906008 |
RIVET
|
||||
| # 13 |
5P0-F1737-00 5P0F173700 5P0F173700 |
EMBLEM
|
||||
| # 14 |
5D7-F1748-00 5D7F174800 5D7F174800 |
COLLAR
|
||||
| # 15 |
4SB-F174X-00 4SBF174X00 4SBF174X00 |
DAMPER
|
||||
| # 16 |
5D7-F17F3-00 5D7F17F300 5D7F17F300 |
GRAPHIC 3
|
||||
| # 17 |
5D7-F17F4-00 5D7F17F400 5D7F17F400 |
GRAPHIC 4
|
||||
| # 18 |
5D7-F17F1-00 5D7F17F100 5D7F17F100 |
GRAPHIC 1
|
||||
| # 19 |
5D7-F17F2-00 5D7F17F200 5D7F17F200 |
GRAPHIC 2
|

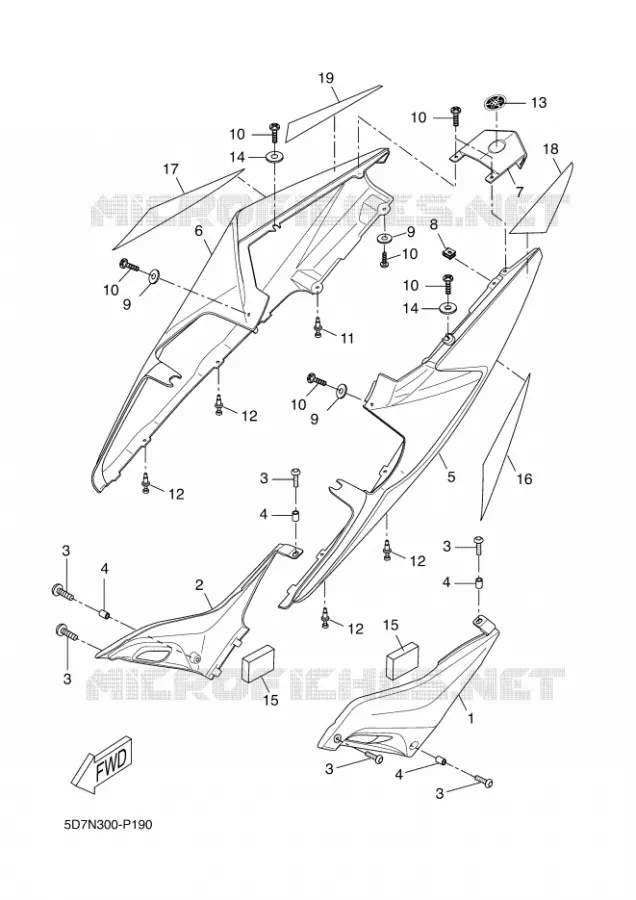

Yamaha YZF-R125
Cilinderinhoud: 125 Jaar: 2016 Model code 5D7W Kleur: DEEP PURPLISH BLUE METALLIC 13
