Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
1B2-14101-10 1B21410110 1B21410110 |
CARBURETOR ASSY 1
|
||||
| # 2 |
97607-04114 9760704114 9760704114 |
SCREW, W/WASHER
|
||||
| # 3 |
1B2-14561-00 1B21456100 1B21456100 |
O-RING
|
||||
| # 4 |
1B2-14216-00 1B21421600 1B21421600 |
SCREW
|
||||
| # 5 |
1B2-14905-00 1B21490500 1B21490500 |
LEVER, STARTER
|
||||
| # 6 |
1B2-14589-00 1B21458900 1B21458900 |
SPRING
|
||||
| # 7 |
1B2-14112-25 1B21411225 1B21411225 |
VALVE, THROTTLE 1
|
||||
| # 8 |
1B2-1490J-00 1B21490J00 1B21490J00 |
NEEDLE SET
|
||||
| # 9 |
5LW-14994-00 5LW1499400 5LW1499400 |
NET, FILTER
|
||||
| # 10 |
1B2-1410A-00 1B21410A00 1B21410A00 |
STARTER SET
|
||||
| # 11 |
5AP-14933-00 5AP1493300 5AP1493300 |
SPRING, DIAPHRAGM
|
||||
| # 12 |
5HP-14280-00 5HP1428000 5HP1428000 |
COVER, CARBURETOR
|
||||
| # 13 |
5AP-14940-00 5AP1494000 5AP1494000 |
DIAPHRAGM ASSY
|
||||
| # 14 |
4LS-14191-00 4LS1419100 4LS1419100 |
PLUG, DRAIN
|
||||
| # 15 |
24W-14184-00 24W1418400 24W1418400 |
GASKET, FLOAT CHAMBER
|
||||
| # 16 |
1B2-14141-29 1B21414129 1B21414129 |
NOZZLE, MAIN
|
||||
| # 17 |
4LS-14147-00 4LS1414700 4LS1414700 |
O-RING
|
||||
| # 18 |
5RM-14107-18 5RM1410718 5RM1410718 |
NEEDLE VALVE SET
|
||||
| # 19 |
127-14186-00 1271418600 1271418600 |
PIN, FLOAT
|
||||
| # 20 |
5HH-14185-00 5HH1418500 5HH1418500 |
FLOAT
|
||||
| # 21 |
583-14561-00 5831456100 5831456100 |
O-RING
|
||||
| # 22 |
1B2-14145-00 1B21414500 1B21414500 |
SETTER, NEEDLE JET
|
||||
| # 23 |
620-14231-20 6201423120 6201423120 |
JET, MAIN (#100)
|
||||
| # 24 |
5V7-14153-00 5V71415300 5V71415300 |
WASHER, MAIN JET
|
||||
| # 25 |
5HP-14142-15 5HP1414215 5HP1414215 |
JET, PILOT (# 15)
|
||||
| # 26 |
5HP-14923-00 5HP1492300 5HP1492300 |
SCREW, PILOT
|
||||
| # 27 |
5K7-14134-00 5K71413400 5K71413400 |
SPRING
|
||||
| # 28 |
3H1-14962-00 3H11496200 3H11496200 |
WASHER, PILOT SCREW
|
||||
| # 29 |
3H1-14147-00 3H11414700 3H11414700 |
O-RING, PILOT SCREW
|
||||
| # 30 |
1HX-14231-24 1HX1423124 1HX1423124 |
JET, MAIN (#120)
|
||||
| # 32 |
98507-04006 9851704006009850704006 |
SCREW, PAN HEAD(3XP)
|
||||
| # 33 |
1B2-14348-00 1B21434800 1B21434800 |
PIPE 1
|
||||
| # 34 |
66E-14251-00 66E1425100 66E1425100 |
NIPPLE
|
||||
| # 35 |
31H-14197-00 31H1419700 31H1419700 |
PIPE
|
||||
| # 36 |
5CA-14197-00 5CA1419700 5CA1419700 |
PIPE
|
||||
| # 37 |
1B2-14103-00 1B21410300 1B21410300 |
THROTTLE SCREW SET
|
||||
| # 38 |
31A-14197-00 26H14197010031A1419700 |
PIPE
|
||||
| # 39 |
5HP-14216-00 5HP1421600 5HP1421600 |
SCREW
|
||||
| # 40 |
5HP-14565-00 5HP1456509005HP1456500 |
SCREW
|
||||
| # 41 |
1B2-1416A-00 1B21416A00 1B21416A00 |
O-RING
|
||||
| # 42 |
1B2-14293-00 1B21429300 1B21429300 |
COVER 1
|
||||
| # 43 |
1HX-14231-16 1HX1423116 1HX1423116 |
JET, MAIN (# 80)
|
||||
| # 44 |
1A0-14196-00 9044505M07001A01419600 |
HOSE (L700)
|
||||
| # 45 |
3F9-14118-00 3F91411800 3F91411800 |
CAP
|

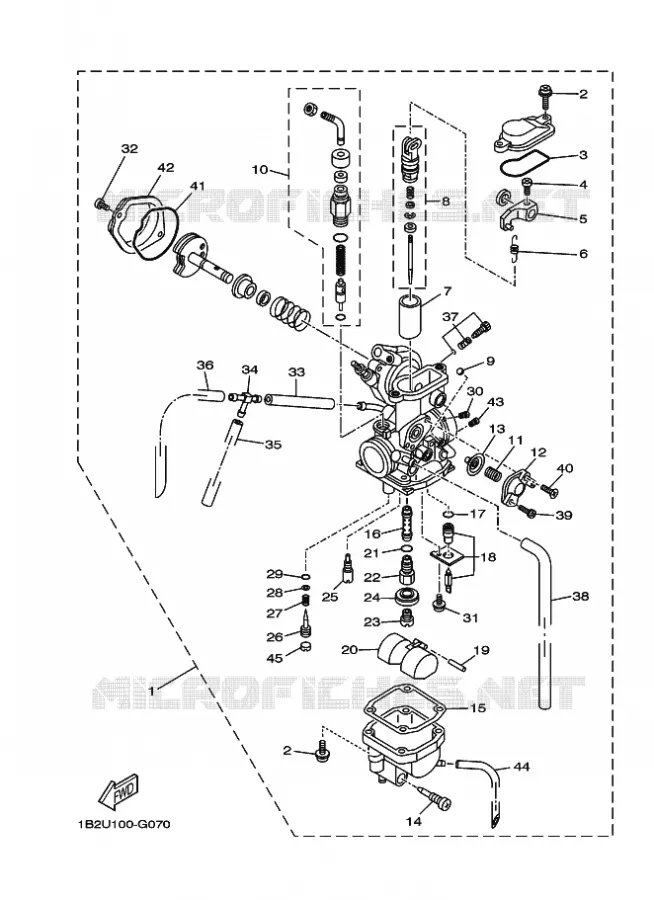

Yamaha TT-R125LW
Cilinderinhoud: 125 Jaar: 2014 Model code 2CP4 Kleur: DEEP PURPLISH BLUE SOLID E
