| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
1C3-22110-90 1C32211090 1C32211090 |
REAR ARM COMP.
|
||||
| # 2 |
90151-04003 9015104004009015104003 |
SCREW, COUNTERSUNK
|
||||
| # 3 |
1C3-22355-00 1C32235500 1C32235500 |
PATCH
|
||||
| # 4 |
93317-22262 9331722262 9331722262 |
BEARING, CYLINDRICAL(2VM)
|
||||
| # 5 |
93342-22217 9334222217 9334222217 |
BEARING
|
||||
| # 6 |
93106-22002 9310622002 9310622002 |
OIL SEAL
|
||||
| # 7 |
93109-28043 9310928043 9310928043 |
OIL SEAL (36F)
|
||||
| # 8 |
90387-18010 9038718010 9038718010 |
COLLAR
|
||||
| # 9 |
90387-18012 9038718012 9038718012 |
COLLAR
|
||||
| # 10 |
2S2-22151-70 2S22215170 2S22215170 |
SEAL, GUARD
|
||||
| # 11 |
1C3-22969-90 1C32296990 1C32296990 |
SCREW, 1
|
||||
| # 12 |
2S2-22199-70 2S22219970 2S22219970 |
SUPPORT, CHAIN
|
||||
| # 13 |
2S2-22128-70 2S22212870 2S22212870 |
COVER, THRUST 1
|
||||
| # 14 |
90105-06104 9010506104 9010506104 |
BOLT, FLANGE
|
||||
| # 15 |
90179-06028 9017906028 9017906028 |
NUT
|
||||
| # 16 |
90105-06105 9010506105 9010506105 |
BOLT, FLANGE
|
||||
| # 17 |
1C3-22141-10 1C32214110 1C32214110 |
SHAFT, PIVOT
|
||||
| # 18 |
90185-16002 9018516002 9018516002 |
NUT, SELF-LOCKING
|
||||
| # 19 |
90201-16018 9020116018 9020116018 |
WASHER, PLATE
|
||||
| # 20 |
1C3-2217A-00 1C32217A00 1C32217A00 |
ARM, RELAY
|
||||
| # 21 |
93315-32166 9331532166 9331532166 |
BEARING
|
||||
| # 22 |
93109-25001 9310925001 9310925001 |
OIL SEAL
|
||||
| # 23 |
90387-16025 9038716025 9038716025 |
COLLAR
|
||||
| # 24 |
90209-16011 9020916011 9020916011 |
WASHER
|
||||
| # 25 |
90201-21014 9020121014 9020121014 |
WASHER, PLATE
|
||||
| # 26 |
1C3-2217F-50 1C32217F50 1C32217F50 |
ROD, CONNECTING 1
|
||||
| # 27 |
93315-32166 9331532166 9331532166 |
BEARING
|
||||
| # 28 |
93109-21001 9310921001 9310921001 |
OIL SEAL
|
||||
| # 29 |
90387-14016 9038714016 9038714016 |
COLLAR
|
||||
| # 30 |
1C3-22121-00 1C32212100 1C32212100 |
SHAFT 1
|
||||
| # 31 |
1C3-22122-00 1C32212200 1C32212200 |
SHAFT 2
|
||||
| # 32 |
90201-14020 9020114020 9020114020 |
WASHER, PLATE
|
||||
| # 33 |
90185-14010 9018514010 9018514010 |
NUT, SELF-LOCKING
|
||||
| # 34 |
1C3-2135F-00 1C32135F00 1C32135F00 |
COVER
|
||||
| # 35 |
1C3-2139R-00 1C32139R00 1C32139R00 |
COVER 2
|

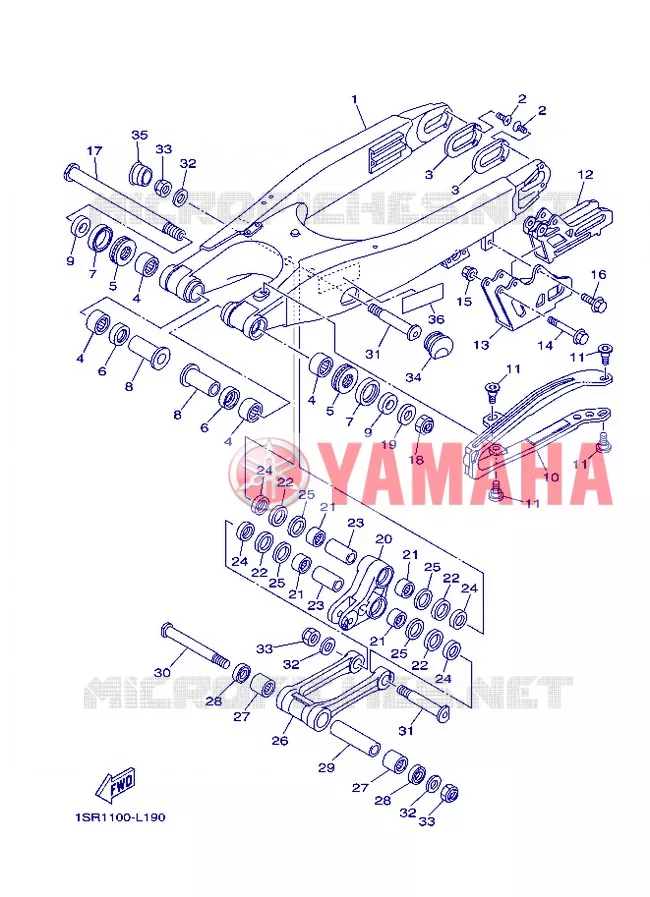

Yamaha YZ125
Cilinderinhoud: 125 Jaar: 2012 Model code 1SR2 Kleur: DEEP PURPLISH BLUE SOLID E
