Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5D7-F835G-00-P0 5D7F835G00P0 5D7F835G00P0 |
BODY, FRONT UPPER 1 MBL2
|
||||
| # 2 |
90167-05X01 9016705X01 9016705X01 |
SCREW, TAPPING
|
||||
| # 3 |
90111-06X23 9011106X23 9011106X23 |
BOLT HEX SOCKET
|
||||
| # 4 |
90202-06X01 9020206X01 9020206X01 |
RONDELLE
|
||||
| # 5 |
90167-05X02 9016705X02 9016705X02 |
SCREW, TAPPING
|
||||
| # 6 |
90183-06X00 9018306X00 9018306X00 |
NUT, SPRING
|
||||
| # 7 |
90183-05X00 9018305X03009018305X00 |
NUT SPRING
|
||||
| # 8 |
90464-62085 9046462085 9046462085 |
CLAMP(1NL)
|
||||
| # 9 |
5D7-F835H-00-P0 5D7F835H00P0 5D7F835H00P0 |
BODY, FRONT UPPER 2 MBL2
|
||||
| # 10 |
90167-05X01 9016705X01 9016705X01 |
SCREW, TAPPING
|
||||
| # 11 |
90111-06X23 9011106X23 9011106X23 |
BOLT HEX SOCKET
|
||||
| # 12 |
90202-06X01 9020206X01 9020206X01 |
RONDELLE
|
||||
| # 13 |
90167-05X02 9016705X02 9016705X02 |
SCREW, TAPPING
|
||||
| # 14 |
90183-06X00 9018306X00 9018306X00 |
NUT, SPRING
|
||||
| # 15 |
90183-05X00 9018305X03009018305X00 |
NUT SPRING
|
||||
| # 16 |
90464-62085 9046462085 9046462085 |
CLAMP(1NL)
|
||||
| # 17 |
5D7-F835J-00-P0 5D7F835J00P0 5D7F835J00P0 |
BODY FRONT LOWER 1 MBL2
|
||||
| # 18 |
5D7-F8385-02 5D7F838503005D7F838502 |
COVER UNDER
|
||||
| # 19 |
90464-20003 9046420021009046420003 |
CLAMP
|
||||
| # 20 |
90111-06X23 9011106X23 9011106X23 |
BOLT HEX SOCKET
|
||||
| # 21 |
90202-06X01 9020206X01 9020206X01 |
RONDELLE
|
||||
| # 22 |
90183-05X00 9018305X03009018305X00 |
NUT SPRING
|
||||
| # 23 |
90167-05X01 9016705X01 9016705X01 |
SCREW, TAPPING
|
||||
| # 24 |
90202-05X00 9020205X00 9020205X00 |
WASHER, PLATE
|
||||
| # 25 |
90269-06008 9026906008 9026906008 |
RIVET
|
||||
| # 26 |
5D7-F835K-00-P0 5D7F835K00P0 5D7F835K00P0 |
BODY, FRONT UNDER 2 MBL2
|
||||
| # 27 |
5D7-F8395-02 5D7F839502 5D7F839502 |
COVER UNDER
|
||||
| # 28 |
90464-09009 9046409009 9046409009 |
CLAMP
|
||||
| # 29 |
90183-06X00 9018306X00 9018306X00 |
NUT, SPRING
|
||||
| # 30 |
5D7-F172S-00 5D7F172S00 5D7F172S00 |
INSULATOR 3
|
||||
| # 31 |
90111-06X23 9011106X23 9011106X23 |
BOLT HEX SOCKET
|
||||
| # 32 |
90202-06X01 9020206X01 9020206X01 |
RONDELLE
|
||||
| # 33 |
90183-05X00 9018305X03009018305X00 |
NUT SPRING
|
||||
| # 34 |
5D7-F835U-00-P1 5D7F835U00P1 5D7F835U00P1 |
PANEL 1 SMX
|
||||
| # 35 |
90111-06X23 9011106X23 9011106X23 |
BOLT HEX SOCKET
|
||||
| # 36 |
90202-06X01 9020206X01 9020206X01 |
RONDELLE
|
||||
| # 37 |
90167-05X01 9016705X01 9016705X01 |
SCREW, TAPPING
|
||||
| # 38 |
90202-05X00 9020205X00 9020205X00 |
WASHER, PLATE
|
||||
| # 39 |
5D7-F835V-00-P1 5D7F835V00P1 5D7F835V00P1 |
PANEL 2 SMX
|
||||
| # 40 |
90111-06X23 9011106X23 9011106X23 |
BOLT HEX SOCKET
|
||||
| # 41 |
90202-06X01 9020206X01 9020206X01 |
RONDELLE
|
||||
| # 42 |
90167-05X01 9016705X01 9016705X01 |
SCREW, TAPPING
|
||||
| # 43 |
90202-05X00 9020205X00 9020205X00 |
WASHER, PLATE
|
||||
| # 48 |
5D7-28398-20 5D72839820 5D72839820 |
GRAPHIC 5
|
||||
| # 49 |
5D7-28399-20 5D72839920 5D72839920 |
GRAPHIC 6
|
||||
| # 50 |
5D7-F834C-10 5D7F834C10 5D7F834C10 |
EMBLEM 1
|
||||
| # 51 |
5D7-F835C-10 5D7F835C10 5D7F835C10 |
EMBLEM 2
|

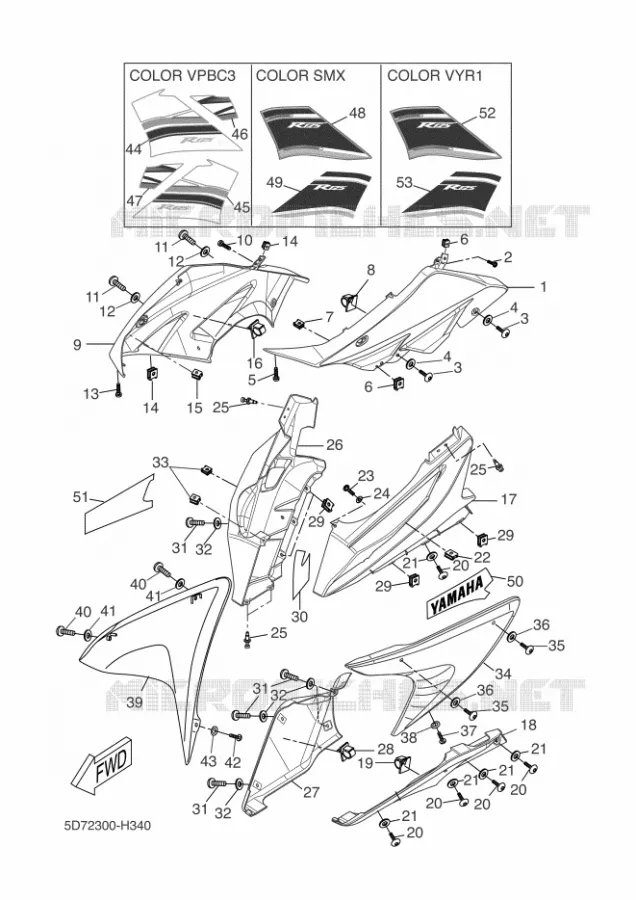

Yamaha YZF-R125
Cilinderinhoud: 125 Jaar: 2009 Model code 5D72 Kleur: BLACK METALLIC X
