Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5ET-25311-00-00 5ET253110000 5ET253110000 |
HUB, REAR
|
||||
| # 2 |
5ET-25317-00-00 5ET253170000 5ET253170000 |
SPACER, BEARING
|
||||
| # 3 |
93306-27212-00 933062721200 933062721200 |
BEARING
|
||||
| # 4 |
93306-07202-00 933060720200 933060720200 |
BEARING(85G)
|
||||
| # 5 |
93106-30001-00 931063000100 931063000100 |
OIL SEAL
|
||||
| # 6 |
93106-30045-00 931063004500 931063004500 |
OIL SEAL
|
||||
| # 7 |
99009-45500-00 990094550000 990094550000 |
CIRCLIP
|
||||
| # 8 |
94418-19003-00 944181900300 944181900300 |
RIM (1.85-19)
|
||||
| # 9 |
5HD-25304-00-00 5HD253040000 5HD253040000 |
SPOKE SET, REAR
|
||||
| # 10 |
94110-19009-00 941101900900 941101900900 |
PNEU
|
Contact | |||
| # 10 |
94110-19012-00 941101901200 941101901200 |
PNEU
|
Contact | |||
| # 10 |
94110-1913B-00 941101913B00 941101913B00 |
TIRE
|
Contact | |||
| # 11 |
94210-19222-00 942101922200 942101922200 |
TUBE(42X)
|
||||
| # 11 |
94210-19224-00 942101922400 942101922400 |
TUBE(42X)
|
||||
| # 12 |
94316-19156-00 943271911100943161915600 |
BAND, RIM
|
||||
| # 13 |
4XM-25394-00-00 4XM253940000 4XM253940000 |
SPACER, BEAD
|
||||
| # 14 |
4XM-25364-00-00 4XM253640000 4XM253640000 |
DAMPER
|
||||
| # 15 |
1C3-25447-00-00 1C3254470000 1C3254470000 |
SPROCKET, DRIVEN (47T)
|
||||
| # 15 |
1C3-25448-00-00 1C3254480000 1C3254480000 |
SPROCKET, DRIVEN (48T)
|
||||
| # 15 |
1C3-25449-00-00 1C3254490000 1C3254490000 |
SPROCKET, DRIVEN (49T)
|
||||
| # 15 |
1C3-25450-00-00 1C3254500000 1C3254500000 |
SPROCKET, DRIVEN (50T)
|
||||
| # 15 |
1C3-25451-00-00 1C3254510000 1C3254510000 |
SPROCKET, DRIVEN (51T)
|
||||
| # 15 |
1C3-25452-00-00 1C3254520000 1C3254520000 |
SPROCKET, DRIVEN (52T)
|
||||
| # 16 |
90109-08078-00 901090807800 901090807800 |
BOLT
|
||||
| # 17 |
90185-08008-00 901850800800 901850800800 |
NUT, SELF-LOCKING
|
||||
| # 18 |
90201-08048-00 902010804800 902010804800 |
WASHER, PLATE
|
||||
| # 19 |
90480-08608-00 904801006800904800860800 |
GROMMET (397)
|
||||
| # 20 |
5TJ-2530S-80-00 5TJ2530S81005TJ2530S8000 |
COLLAR ASSY
|
||||
| # 21 |
1C3-25388-50-00 1C325388H0001C3253885000 |
PULLER, CHAIN 1
|
||||
| # 22 |
1C3-25389-00-00 1C325389H0001C3253890000 |
PULLER, CHAIN 2
|
||||
| # 23 |
90101-08006-00 901010800600 901010800600 |
BOLT
|
||||
| # 24 |
90179-08019-00 901790801900 901790801900 |
NUT
|
||||
| # 25 |
1C3-25381-90-00 1C3253819000 1C3253819000 |
AXLE, WHEEL
|
||||
| # 26 |
90185-20002-00 901852000200 901852000200 |
NUT, SELF-LOCKING
|
||||
| # 27 |
90201-20020-00 902012002000 902012002000 |
WASHER, PLATE
|
||||
| # 28 |
9Y581-92111-00 9Y5819211100 9Y5819211100 |
CHAIN
|
||||
| # 29 |
94681-68001-00 946816800100 946816800100 |
JOINT, CHAIN
|

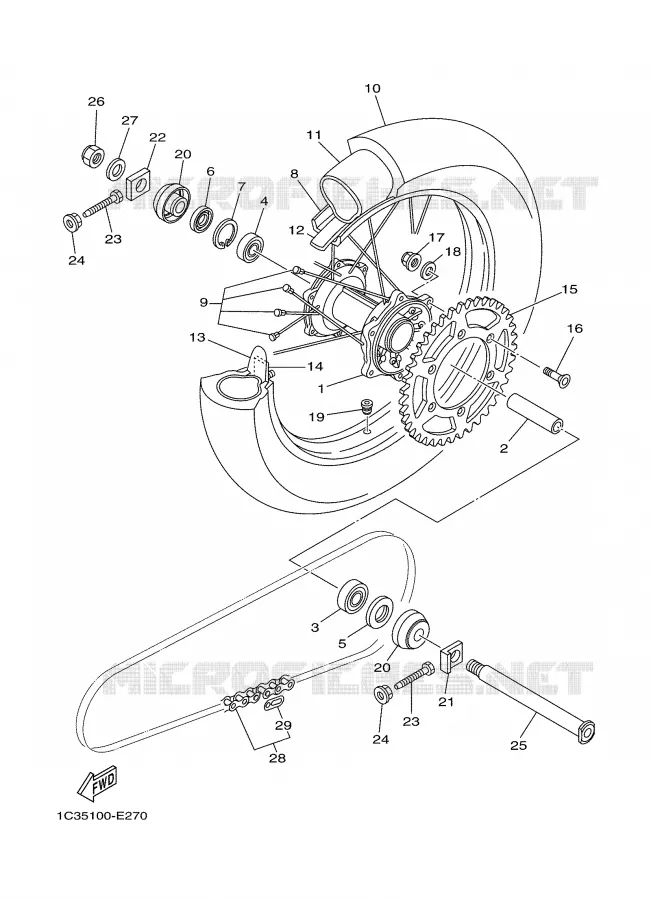

Yamaha YZ125
Cilinderinhoud: 125 Jaar: 2008 Model code 1C3E Kleur: DEEP PURPLISH BLUE SOLID E
