| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
4BP-21510-00-P2 4BP2151000P2 4BP2151000P2 |
GARDE BOUE AV
|
Contact | |||
| # 1 |
4BP-21510-20-00 4BP215102000 4BP215102000 |
GARDE BOUE AV
|
Contact | |||
| # 2 |
95027-06016-00 901050669600950270601600 |
BOLT, WASHER BASED(JA9)
|
||||
| # 3 |
1A8-21518-00-00 1A8215180000 1A8215180000 |
GUIDE, WIRE
|
||||
| # 4 |
4FU-21611-10-00 4FU216111000 4FU216111000 |
GARDE BOUE AR
|
Contact | |||
| # 4 |
4GW-21611-00-P0 4GW2161100P0 4GW2161100P0 |
GARDE BOUE AR
|
Contact | |||
| # 5 |
98907-05012-00 989070501200 989070501200 |
SCREW, BINDING
|
||||
| # 6 |
90183-05024-00 90183051A000901830502400 |
NUT, SPRING
|
||||
| # 7 |
27V-24183-00-00 18A21778000027V241830000 |
DAMPER, LOCATING 1
|
||||
| # 8 |
4FU-21685-10-00 4FU216851000 4FU216851000 |
SUPPORT, IMMATRICULATION
|
Contact | |||
| # 8 |
4FU-21685-00-00 4FU216850000 4FU216850000 |
BRACKET, LICENSE
|
Contact | |||
| # 9 |
1VJ-21621-00-00 1VJ216210000 1VJ216210000 |
BAVETTE
|
Contact | |||
| # 10 |
98507-04016-00 985170401600985070401600 |
SCREW, PAN HEAD
|
||||
| # 11 |
92907-04200-00 929070420000 929070420000 |
WASHER(6E1)
|
||||
| # 12 |
95607-04100-00 956170410000956070410000 |
NUT, U (7LY)
|
||||
| # 13 |
90387-064L2-00 90387066480090387064L200 |
COLLAR (8G8)
|
||||
| # 14 |
90105-06639-00 950240601600901050663900 |
BOLT, FLANGE(2UJ)
|
||||
| # 15 |
90119-06108-00 970170601600901190610800 |
BOLT, HEXAGON
|
||||
| # 16 |
3TB-2164F-01-00 3TB2164F02003TB2164F0100 |
SUPPORT 1
|
||||
| # 17 |
92017-08050-00 920170805000 920170805000 |
BOLT, BUTTON
|
||||
| # 18 |
4U5-2317J-00-00 22F2139X00004U52317J0000 |
DAMPER
|
||||
| # 19 |
4FU-2174T-00-00 4FU2174T0000 4FU2174T0000 |
ISOLATEUR DE CACHE LATERALE 2
|
Contact | |||
| # 20 |
2JG-21638-00-00 2JG216380000 2JG216380000 |
DAMPER 1
|
||||
| # 21 |
99231-00080-00 992410008000992310008000 |
EMBLEM, YAMAHA
|
||||
| # 21 |
99237-00080-00 992470008000992370008000 |
EMBLEM, YAMAHA
|
||||
| # 22 |
4FU-21650-10-00 4FU216501000 4FU216501000 |
REAR FENDER COMP.
|
Contact | |||
| # 23 |
90387-064J1-00 90387061070090387064J100 |
COLLAR
|
||||
| # 24 |
95807-06020-00 958170602000958070602000 |
BOLT, FLANGE
|
||||
| # 25 |
3FY-21575-00-00 3FY2157501003FY215750000 |
SEAL 1
|

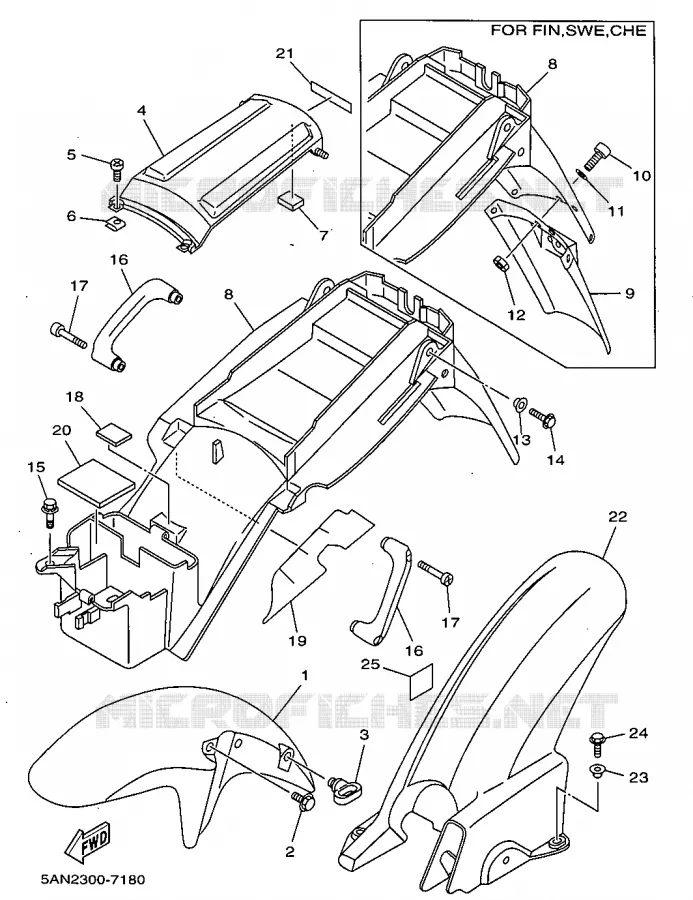

Yamaha TDR125
Cilinderinhoud: 125 Jaar: 1997 Model code 5AN2 Kleur: BLACK 1
