Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

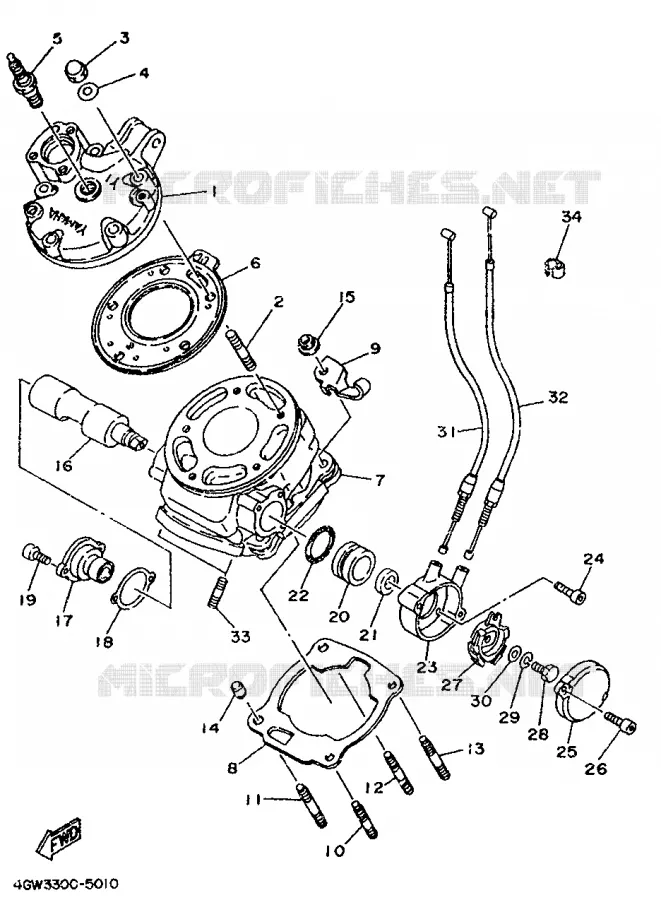

| # 1 |
4FU-11111-00-00 4FU111110000 4FU111110000 |
CULASSE
|
Contact | |||
| # 2 |
90116-08394-00 901160839400 901160839400 |
BOLT, STUD (5V6)
|
||||
| # 3 |
90176-08040-00 901760804000 901760804000 |
NUT, CROWN (12W)
|
||||
| # 4 |
90201-08649-00 902010864900 902010864900 |
WASHER (1T1)
|
||||
| # 5 |
94701-00188-00 947010018800 947010018800 |
PLUG, SPARK (BR9ES)
|
||||
| # 6 |
3BN-11181-02-00 3BN111810200 3BN111810200 |
GASKET, CYLINDER HEAD 1
|
||||
| # 7 |
4FU-11311-00-00 4FU113110000 4FU113110000 |
CYLINDRE 1
|
Contact | |||
| # 8 |
4FU-11351-00-00 4FU113510000 4FU113510000 |
GASKET, CYLINDER
|
||||
| # 9 |
4FU-15441-00-00 4FU154410000 4FU154410000 |
SUPPORT, CABLE D EMBRAYAGE
|
Contact | |||
| # 10 |
90116-08318-00 901160839400901160831800 |
BOLT, STUD (5V6)
|
||||
| # 11 |
90116-08388-00 901160838800 901160838800 |
BOLT, STUD (10V)
|
||||
| # 12 |
90116-08388-00 901160838800 901160838800 |
BOLT, STUD (10V)
|
||||
| # 13 |
90116-08524-00 901160839200901160852400 |
BOLT, STUD (5X4)
|
||||
| # 14 |
99510-10114-00 995301011400995101011400 |
PIN, DOWEL(3VD)
|
||||
| # 15 |
90179-08491-00 901790849100 901790849100 |
NUT(55X)
|
||||
| # 16 |
4GW-1131A-00-00 4GW1131A0000 4GW1131A0000 |
VALVE 1
|
||||
| # 17 |
3RR-1131E-01-00 3RR1131E0100 3RR1131E0100 |
HOLDER 1
|
||||
| # 18 |
4FL-1131N-00-00 4FL1131N0000 4FL1131N0000 |
GASKET, HOLDER
|
||||
| # 19 |
91317-05012-00 913170501200 913170501200 |
BOLT, SOCKET
|
||||
| # 20 |
31K-1131U-00-00 31K1131U0000 31K1131U0000 |
HOLDER 3
|
||||
| # 21 |
93108-23010-00 931082301000 931082301000 |
OIL SEAL (29L)
|
||||
| # 22 |
93210-30734-00 932103073400 932103073400 |
O-RING(1WT)
|
||||
| # 23 |
2RH-1131M-10-00 2RH1131M1000 2RH1131M1000 |
COVER
|
||||
| # 24 |
91317-05010-00 913170501000 913170501000 |
BOLT, SOCKET
|
||||
| # 25 |
2RH-1131R-10-00 2RH1131R1000 2RH1131R1000 |
CAP, SEAL
|
||||
| # 26 |
91317-05012-00 913170501200 913170501200 |
BOLT, SOCKET
|
||||
| # 27 |
29L-1132E-00-00 29L1132E0000 29L1132E0000 |
PULLEY 1
|
||||
| # 28 |
97027-06016-00 970170601600970270601600 |
BOLT, HEXAGON
|
||||
| # 29 |
92907-06100-00 929070610000 929070610000 |
WASHER, SPRING
|
||||
| # 30 |
92907-06600-00 929070660000 929070660000 |
WASHER(6TA)
|
||||
| # 31 |
4FU-1133E-00-00 4FU1133E0000 4FU1133E0000 |
CABLE, PULLEY 1
|
Contact | |||
| # 32 |
4FU-1133F-00-00 4FU1133F0000 4FU1133F0000 |
CABLE, PULLEY 2
|
Contact | |||
| # 33 |
90116-08042-00 901160804200 901160804200 |
BOLT STUD 811135580000
|
||||
| # 34 |
90468-15009-00 904681500900 904681500900 |
CLIP, WIRE 2072639100
|
Yamaha TDR125
Cilinderinhoud: 125 Jaar: 1996 Model code 4GW4 Kleur: VIVID RED COCKTAIL 1
