Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

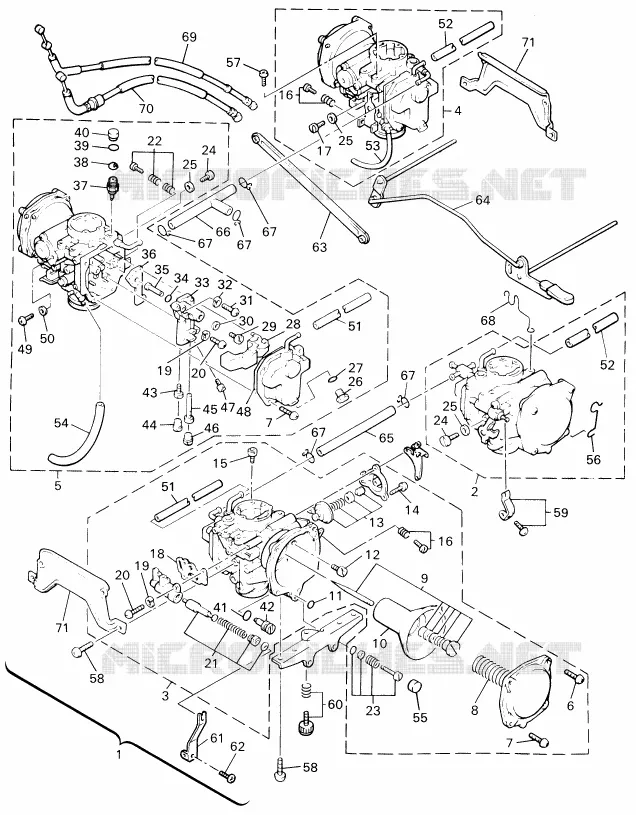

| # 1 |
1FK-14900-02 1FK1490002 1FK1490002 |
CARBURATEUR COMPLET
|
Contact | |||
| # 2 |
1FK-14901-02 1FK1490102 1FK1490102 |
CARBURATEUR 1 COMPLET
|
Contact | |||
| # 3 |
1FK-14902-02 1FK1490202 1FK1490202 |
CARBURATEUR 2 COMPLET
|
Contact | |||
| # 4 |
1FK-14903-02 1FK1490302 1FK1490302 |
CARBURETOR ASSY 3
|
Contact | |||
| # 5 |
1FK-14904-02 1FK1490402 1FK1490402 |
CARBURETOR ASSY 4
|
Contact | |||
| # 6 |
90157-05050 9015705050 9015705050 |
SCREW, PAN HEAD(1FK)
|
||||
| # 7 |
97801-05012 9788505016009780105012 |
SCREW, PAN HEAD(6B0)
|
||||
| # 8 |
1FK-14933-00 1FK1493300 1FK1493300 |
SPRING, DIAPHRAGM
|
||||
| # 9 |
1FK-1490J-00 1FK1490J00 1FK1490J00 |
NEEDLE SET
|
||||
| # 10 |
1FK-14940-00 1FK1494009001FK1494000 |
DIAPHRAGM ASSY
|
||||
| # 11 |
93210-03119 9321003119 9321003119 |
O-RING (248)
|
||||
| # 12 |
3G2-14231-34 3G21423134 3G21423134 |
JET, MAIN (#170)
|
||||
| # 13 |
26H-1490H-00 26H1490H00 26H1490H00 |
DIAPHRAGM SET, 5
|
||||
| # 14 |
97801-04010 9858004010009780104010 |
SCREW, PAN HEAD (E56)
|
||||
| # 15 |
3G2-14231-18 3G21423118 3G21423118 |
JET, MAIN (# 90)
|
||||
| # 16 |
31H-1490K-00 31H1490K00 31H1490K00 |
JEU DE VIS DE BUTEE
|
Contact | |||
| # 17 |
2F1-14991-00 2F11499100 2F11499100 |
SCREW, PLUG
|
Contact | |||
| # 18 |
3JB-14536-00 3JB1453600 3JB1453600 |
GASKET
|
||||
| # 19 |
92901-04100 9299004100009290104100 |
YBS67-4 WASHER, SPRING
|
||||
| # 20 |
98511-04012 9851704012009851104012 |
SCREW, PAN HEAD
|
||||
| # 21 |
1GR-1410A-00 1GR1410A00 1GR1410A00 |
STARTER SET
|
||||
| # 22 |
26H-1490K-00 26H1490K00 26H1490K00 |
JEU DE VIS DE BUTEE
|
Contact | |||
| # 23 |
12R-14105-00 12R1410500 12R1410500 |
PILOT SCREW SET
|
||||
| # 24 |
341-14991-00 3411499100 3411499100 |
PLUG
|
Contact | |||
| # 25 |
26H-14952-22 26H1495222 |
WASHER
|
Contact | |||
| # 26 |
22U-14115-00 22U1411500 22U1411500 |
PLUG, SCREW
|
||||
| # 27 |
22U-14561-00 22U1456100 22U1456100 |
O-RING
|
||||
| # 28 |
1FK-14985-00 1FK1498500 1FK1498500 |
FLOAT
|
||||
| # 29 |
22U-14565-00 22U1456500 22U1456500 |
SCREW
|
||||
| # 30 |
137-14153-00 1371415300 1371415300 |
WASHER, MAIN JET
|
||||
| # 31 |
98511-04008 9850704018009851104008 |
SCREW, PAN HEAD
|
||||
| # 32 |
92901-04100 9299004100009290104100 |
YBS67-4 WASHER, SPRING
|
||||
| # 33 |
26H-1411A-00 26H1411A00 26H1411A00 |
GICLEUR DE AIGUILLE COMPLET
|
Contact | |||
| # 34 |
22U-14147-00 22U1414700 22U1414700 |
O-RING
|
||||
| # 35 |
26H-14941-90 26H1494190 26H1494190 |
NOZZLE, MAIN
|
||||
| # 36 |
3JB-14199-00 3JB1419900 3JB1419900 |
GASKET
|
||||
| # 37 |
1FK-14190-15 1FK1419015 1FK1419015 |
NEEDLE VALVE ASSY
|
||||
| # 38 |
1J7-14994-00 1J71499400 1J71499400 |
NET, FILTER
|
||||
| # 39 |
1FK-14147-00 1FK1414700 1FK1414700 |
O-RING
|
||||
| # 40 |
41R-14118-01 41R1411801 41R1411801 |
CAP
|
||||
| # 41 |
214-14147-00 2141414700 2141414700 |
O-RING
|
||||
| # 42 |
2L1-14191-00 2L11419100 2L11419100 |
SCREW
|
||||
| # 43 |
4G0-14142-37 4G01414237A04G01414237 |
JET, PILOT (# 37.5)
|
||||
| # 44 |
22V-14968-00 22V1496800 22V1496800 |
CAP
|
||||
| # 45 |
26H-1414G-00 26H1414G00 26H1414G00 |
PIPE, MAIN BREED
|
||||
| # 46 |
22U-14968-00 22U1496800 22U1496800 |
CAP
|
||||
| # 47 |
3G2-14231-81 3G21423A81003G21423181 |
JET, MAIN #152.5
|
||||
| # 48 |
22V-14147-00 22V1414700 22V1414700 |
O-RING
|
||||
| # 49 |
98511-04012 9851704012009851104012 |
SCREW, PAN HEAD
|
||||
| # 50 |
92901-04100 9299004100009290104100 |
YBS67-4 WASHER, SPRING
|
||||
| # 51 |
1GR-14197-01 1GR1419701 1GR1419701 |
PIPE (L400)
|
||||
| # 52 |
1FK-14197-01 1FK1419701 1FK1419701 |
PIPE (L275)
|
||||
| # 53 |
41R-14193-00 90445075G40041R1419300 |
HOSE (L570)
|
||||
| # 54 |
41U-14193-00 90445075G40041U1419300 |
HOSE (L570)
|
||||
| # 55 |
3F9-14118-00 3F91411800 3F91411800 |
CAP
|
||||
| # 56 |
1JH-14139-00 1JH1413900 1JH1413900 |
JONC DE DURITE
|
Contact | |||
| # 57 |
97801-05008 9858005008009780105008 |
SCREW, PAN HEAD (7G3)
|
||||
| # 58 |
97801-06010 9858006010009780106010 |
SCREW PAN HEAD
|
||||
| # 59 |
22U-1490M-00 22U1490M00 22U1490M00 |
STARTER LEVER SET 2
|
Contact | |||
| # 60 |
26H-14103-00 26H1410300 26H1410300 |
THROTTLE SCREW SET
|
Contact | |||
| # 61 |
1FK-14905-00 1FK1490500 1FK1490500 |
LEVER, STARTER
|
Contact | |||
| # 62 |
11H-14991-00 11H14991090011H1499100 |
SCREW
|
||||
| # 63 |
26H-14504-00 26H1450400 26H1450400 |
ROD SET
|
Contact | |||
| # 64 |
1FK-1490L-00 1FK1490L00 1FK1490L00 |
STARTER LEVER SET, 1
|
Contact | |||
| # 65 |
31H-14987-00 31H1498700 31H1498700 |
HOSE
|
||||
| # 66 |
26H-14987-00 26H1498700 26H1498700 |
HOSE
|
||||
| # 67 |
90467-10008 9046711106009046710008 |
CLIP(1JH)
|
||||
| # 68 |
26H-14139-00 26H1413900 26H1413900 |
CLIP, PIPE
|
Contact | |||
| # 69 |
1FK-2631J-00 1FK2631J00 1FK2631J00 |
CABLE, THROTTLE 4
|
||||
| # 70 |
1FK-26313-01 1FK2631300001FK2631301 |
CABLE, THROTTLE 3
|
||||
| # 71 |
26H-14291-00 26H1429100 26H1429100 |
BRACKET 1
|
Contact |
Yamaha VMX12 VMX12M VMAX
Cilinderinhoud: 1200 Jaar: 2000 Model code 5GK2 Kleur: YAMAHA BLACK
