SPOOR OPHANGING 1

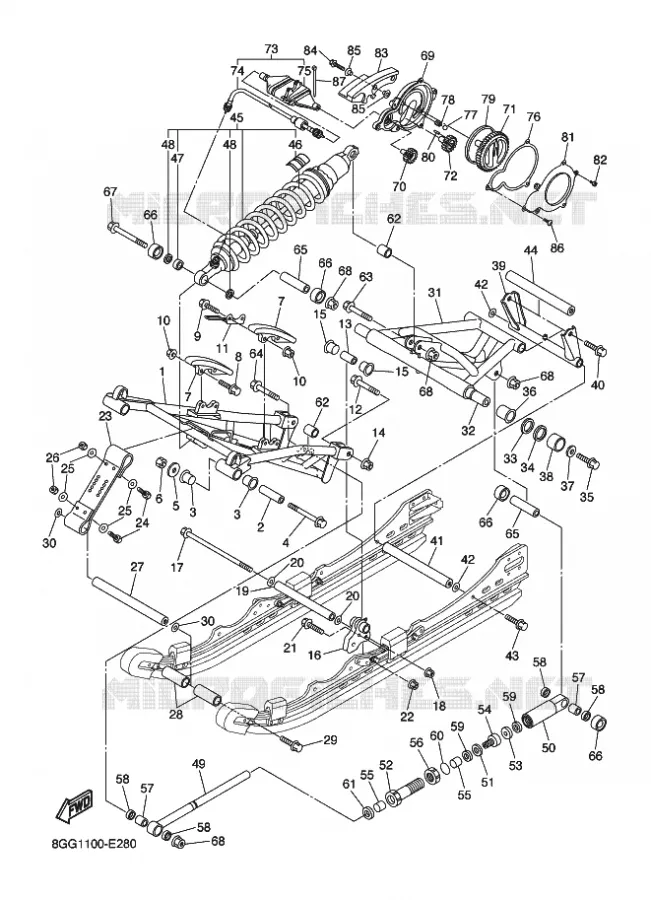

SPOOR OPHANGING 2 VOOR YAMAHA APEX 2006

SPOOR AANDRIJVING 1

(1) 999990377400

ARM, PIVOT 1

(2) 90387-10042

COLLAR

(3) 90386-22002

BUSH

(3) 90386-22002

BUSH

(4) 90105-10150

BOLT, FLANGE

(5) 90201105H300

WASHER, PLATE(42X)

(6) 90185-10060

NUT, SELFLOCKING (533 FRAME)

(7) 8F3-47422-01

RUNNER, SLIDING 2

(7) 8F3-47422-01

RUNNER, SLIDING 2

(8) 958170602000

BOLT, FLANGE

(9) 958170602500

BOLT, FLANGE

(10) 956040620000

NUT, U FLANGE

(10) 956040620000

NUT, U FLANGE

(11) 8FR-47445-00

PROTECTOR

(12) 901051009100

BOLT, FLANGE

(13) 90387-10033

COLLAR

(14) 95607-10200

NUT, SELF-LOCKING(JN5)

(15) 90386-15002

BUSH

(15) 90386-15002

BUSH

(16) 8FU-47415-10

BRACKET 1

(17) 90105-08119

BOLT, FLANGE

(18) 901850816900

NUT, SELF-LOCKING

(19) 90387-08037

COLLAR

(20) 90201-08649

WASHER (1T1)

(20) 90201-08649

WASHER (1T1)

(21) 958270803000

BOLT, FLANGE(3VP)

(22) 901850816900

NUT, SELF-LOCKING

(23) 8FU-47495-00

STOPPER 1

(24) 970170602500

BOLT, HEXAGON

(25) 90201-06747

WASHER, PLATE

(25) 90201-06747

WASHER, PLATE

(26) 95707-06300

NUT, NYLON

(27) 8FU-47485-00

SHAFT 3

(28) 90387-19003

COLLAR

(29) 958171003000

BOLT, FLANGE

(30) 90201102G900

WASHER, PLATE (26H)

(30) 90201102G900

WASHER, PLATE (26H)

(31) 8FU-47332-10

ARM, PIVOT 2

(32) 8FU-47475-00

SHAFT 2

(33) 90201-251G8

WASHER, PLATE (8V2)

(34) 90201-250T6

WASHER, PLATE(8CJ)

(35) 901051014500

BOLT, FLANGE

(36) 90381-28108

BUSH, SOLID(8CJ)

(37) 902011003900

WASHER, PLATE

(38) 90387-25005

COLLAR

(39) 8FU474171100

BRACKET 3

(40) 958171003000

BOLT, FLANGE

(41) 8FU-47485-00

SHAFT 3

(42) 90201-10136

WASHER PLATE (789)

(42) 90201-10136

WASHER PLATE (789)

(43) 958171003000

BOLT, FLANGE

(44) 8FU-47486-00

SHAFT 4

(45) 8FR-47480-00

SHOCK ABSORBER

(46) 4AA-22259-60

LABEL, WARNING

(47) 93315-31758

BEARING

(48) 93109-17071

OIL SEAL

(48) 93109-17071

OIL SEAL

(49) 8FR-4745A-00

ROD, CONTROL 1

(50) 8FU-4745C-10

ROD, CONTROL 3

(51) 90202-16229

WASHER, PLATE(8CJ)

(52) 8FU-4745B-00

ROD, CONTROL 2

(53) 8FU-47384-00

WASHER

(53) 8FU-47384-00

WASHER

(53) 8FU-47384-10

WASHER

(53) 8FU-47384-10

WASHER

(53) 8FU-47384-20

WASHER

(53) 8FU-47384-20

WASHER

(54) 8FU-4745D-00

STOPPER, CONT. 1

(55) 90384-16251

BUSH, BIMETAL FORMED(8CJ)

(55) 90384-16251

BUSH, BIMETAL FORMED(8CJ)

(56) 8FU-47368-00

NUT

(57) 93315-31758

BEARING

(57) 93315-31758

BEARING

(58) 93109-17071

OIL SEAL

(58) 93109-17071

OIL SEAL

(58) 93109-17071

OIL SEAL

(58) 93109-17071

OIL SEAL

(59) 8FU-47466-00

SPACER

(59) 8FU-47466-00

SPACER

(60) 93210-347A6

O-RING

(61) C68-43822-00

SEAL, TRIM DUST

(62) 90387-1012A

COLLAR

(62) 90387-1012A

COLLAR

(63) 95817-10045

BOLT, FLANGE(4GB)

(64) 958171004500

BOLT, FLANGE(4GB)

(65) 90387-10034

COLLAR

(65) 90387-10034

COLLAR

(66) 8FU-47341-00

SPACER

(66) 8FU-47341-00

SPACER

(66) 8FU-47341-00

SPACER

(66) 8FU-47341-00

SPACER

(67) 95817-10070

BOLT, FLANGE(7LU)

(68) 95607-10200

NUT, SELF-LOCKING(JN5)

(68) 95607-10200

NUT, SELF-LOCKING(JN5)

(68) 95607-10200

NUT, SELF-LOCKING(JN5)

(68) 95607-10200

NUT, SELF-LOCKING(JN5)

(69) 8FU-474A1-00

HOUSING, ADJUSTER

(70) 8FU-474A2-00

GEAR, DRIVE

(71) 8FU-474A3-00

HANDLE, ADJUSTER

(72) 8FU-474A4-00

GEAR, STOPPER

(73) 8FUW474A3000

ADJUSTER CABLE ASSY.

(74) 8FU474A53000

CABLE, ADJUSTER

(75) 8FU-47445-01

PROTECTOR

(76) 8FU-474A6-00

GASKET, ADJUSTER HOUSING

(77) 93501-04011

BALL

(78) 90501-06M35

SPRING, COMPRESSION

(79) 8FU-474A7-00

SEAL, ADJUSTER HANDLE

(80) 93603-12007

PIN,DOWEL (603)

(81) 8FU-47467-00

PLATE, GUIDE

(82) 985170501000

SCREW, PAN HEAD(3LA)

(83) 8FU474411100

SLIDER 1

(84) 958170602000

BOLT, FLANGE

(85) 90387-07717

COLLAR (3L1)

(85) 90387-07717

COLLAR (3L1)

(86) 90111-06038

BOLT

(87) 90464-16061

CLAMP

	Onderdeelnummer	Produkt	Aantal
# 1	8FT-47331-00 999990377400 8FT4733100	ARM, PIVOT 1	513,00 €
# 2	90387-10042 9038710042 9038710042	COLLAR	20,00 €
# 3	90386-22002 9038622002 9038622002	BUSH	20,00 €
# 4	90105-10150 9010510150 9010510150	BOLT, FLANGE	6,70 €
# 5	90201-104A7 90201105H300 90201104A7	WASHER, PLATE(42X)	6,55 €
# 6	90185-10060 9018510060 9018510060	NUT, SELFLOCKING (533 FRAME)	4,81 €
# 7	8F3-47422-01 8F34742201 8F34742201	RUNNER, SLIDING 2	34,00 €
# 8	90105-06557 958170602000 9010506557	BOLT, FLANGE	1,15 €
# 9	90105-06601 958170602500 9010506601	BOLT, FLANGE	0,50 €
# 10	95607-06200 956040620000 9560706200	NUT, U FLANGE	1,40 €
# 11	8FR-47445-00 8FR4744500 8FR4744500	PROTECTOR	28,00 €
# 12	90105-10090 901051009100 9010510090	BOLT, FLANGE	2,45 €
# 13	90387-10033 9038710033 9038710033	COLLAR	9,41 €
# 14	95607-10200 9560710200 9560710200	NUT, SELF-LOCKING(JN5)	3,60 €
# 15	90386-15002 9038615002 9038615002	BUSH	18,00 €
# 16	8FU-47415-10 8FU4741510 8FU4741510	BRACKET 1	Contact	0,00 €
# 17	90105-08119 9010508119 9010508119	BOLT, FLANGE	14,21 €
# 18	95607-08200 901850816900 9560708200	NUT, SELF-LOCKING	3,50 €
# 19	90387-08037 9038708037 9038708037	COLLAR	Contact	0,00 €
# 20	90201-08649 9020108649 9020108649	WASHER (1T1)	4,45 €
# 21	95817-08030 958270803000 9581708030	BOLT, FLANGE(3VP)	2,35 €
# 22	95607-08200 901850816900 9560708200	NUT, SELF-LOCKING	3,50 €
# 23	8FU-47495-00 8FU4749500 8FU4749500	STOPPER 1	123,00 €
# 24	97007-06025 970170602500 9700706025	BOLT, HEXAGON	1,21 €
# 25	90201-06747 9020106747 9020106747	WASHER, PLATE	4,06 €
# 26	95707-06300 9570706300 9570706300	NUT, NYLON	1,91 €
# 27	8FU-47485-00 8FU4748500 8FU4748500	SHAFT 3	56,50 €
# 28	90387-19003 9038719003 9038719003	COLLAR	Contact	0,00 €
# 29	90105-10433 958171003000 9010510433	BOLT, FLANGE	3,16 €
# 30	90201-10126 90201102G900 9020110126	WASHER, PLATE (26H)	3,95 €
# 31	8FU-47332-10 8FU4733210 8FU4733210	ARM, PIVOT 2	Contact	0,00 €
# 32	8FU-47475-00 8FU4747500 8FU4747500	SHAFT 2	108,00 €
# 33	90201-251G8 90201251G8 90201251G8	WASHER, PLATE (8V2)	9,11 €
# 34	90201-250T6 90201250T6 90201250T6	WASHER, PLATE(8CJ)	5,46 €
# 35	90105-10146 901051014500 9010510146	BOLT, FLANGE	5,15 €
# 36	90381-28108 9038128108 9038128108	BUSH, SOLID(8CJ)	20,00 €
# 37	90201-103U4 902011003900 90201103U4	WASHER, PLATE	4,70 €
# 38	90387-25005 9038725005 9038725005	COLLAR	2,35 €
# 39	8FU-47417-10 8FU474171100 8FU4741710	BRACKET 3	93,00 €
# 40	90105-10433 958171003000 9010510433	BOLT, FLANGE	3,16 €
# 41	8FU-47485-00 8FU4748500 8FU4748500	SHAFT 3	56,50 €
# 42	90201-10136 9020110136 9020110136	WASHER PLATE (789)	3,60 €
# 43	90105-10433 958171003000 9010510433	BOLT, FLANGE	3,16 €
# 44	8FU-47486-00 8FU4748600 8FU4748600	SHAFT 4	68,00 €
# 45	8FR-47480-00 8FR4748000 8FR4748000	SHOCK ABSORBER	Contact	0,00 €
# 46	4AA-22259-60 4AA2225960 4AA2225960	LABEL, WARNING	10,56 €
# 47	93315-31758 9331531758 9331531758	BEARING	Contact	0,00 €
# 48	93109-17071 9310917071 9310917071	OIL SEAL	4,26 €
# 49	8FR-4745A-00 8FR4745A00 8FR4745A00	ROD, CONTROL 1	Contact	0,00 €
# 50	8FU-4745C-10 8FU4745C10 8FU4745C10	ROD, CONTROL 3	Contact	0,00 €
# 51	90202-16229 9020216229 9020216229	WASHER, PLATE(8CJ)	1,81 €
# 52	8FU-4745B-00 8FU4745B00 8FU4745B00	ROD, CONTROL 2	Contact	0,00 €
# 53	8FU-47384-00 8FU4738400 8FU4738400	WASHER	49,50 €
# 53	8FU-47384-20 8FU4738420 8FU4738420	WASHER	49,50 €
# 53	8FU-47384-10 8FU4738410 8FU4738410	WASHER	Contact	0,00 €
# 54	8FU-4745D-00 8FU4745D00 8FU4745D00	STOPPER, CONT. 1	55,50 €
# 55	90384-16251 9038416251 9038416251	BUSH, BIMETAL FORMED(8CJ)	9,30 €
# 56	8FU-47368-00 8FU4736800 8FU4736800	NUT	74,00 €
# 57	93315-31758 9331531758 9331531758	BEARING	Contact	0,00 €
# 58	93109-17071 9310917071 9310917071	OIL SEAL	4,26 €
# 59	8FU-47466-00 8FU4746600 8FU4746600	SPACER	10,85 €
# 60	93210-347A6 93210347A6 93210347A6	O-RING	0,85 €
# 61	C68-43822-00 C684382200 C684382200	SEAL, TRIM DUST	5,15 €
# 62	90387-1012A 903871012A 903871012A	COLLAR	12,25 €
# 63	95817-10045 9581710045 9581710045	BOLT, FLANGE(4GB)	3,70 €
# 64	90105-102A6 958171004500 90105102A6	BOLT, FLANGE(4GB)	3,70 €
# 65	90387-10034 9038710034 9038710034	COLLAR	18,00 €
# 66	8FU-47341-00 8FU4734100 8FU4734100	SPACER	8,10 €
# 67	95817-10070 9581710070 9581710070	BOLT, FLANGE(7LU)	4,56 €
# 68	95607-10200 9560710200 9560710200	NUT, SELF-LOCKING(JN5)	3,60 €
# 69	8FU-474A1-00 8FU474A100 8FU474A100	HOUSING, ADJUSTER	103,00 €
# 70	8FU-474A2-00 8FU474A200 8FU474A200	GEAR, DRIVE	88,00 €
# 71	8FU-474A3-00 8FU474A300 8FU474A300	HANDLE, ADJUSTER	128,00 €
# 72	8FU-474A4-00 8FU474A400 8FU474A400	GEAR, STOPPER	93,00 €
# 73	8FU-W474A-10 8FUW474A3000 8FUW474A10	ADJUSTER CABLE ASSY.	117,00 €
# 74	8FU-474A5-10 8FU474A53000 8FU474A510	CABLE, ADJUSTER	83,00 €
# 75	8FU-47445-01 8FU4744501 8FU4744501	PROTECTOR	63,00 €
# 76	8FU-474A6-00 8FU474A600 8FU474A600	GASKET, ADJUSTER HOUSING	5,15 €
# 77	93501-04011 9350104011 9350104011	BALL	0,41 €
# 78	90501-06M35 9050106M35 9050106M35	SPRING, COMPRESSION	1,15 €
# 79	8FU-474A7-00 8FU474A700 8FU474A700	SEAL, ADJUSTER HANDLE	Contact	0,00 €
# 80	93603-12007 9360312007 9360312007	PIN, DOWEL (603)	2,06 €
# 81	8FU-47467-00 8FU4746700 8FU4746700	PLATE, GUIDE	40,50 €
# 82	98507-05010 985170501000 9850705010	SCREW, PAN HEAD(3LA)	0,56 €
# 83	8FU-47441-10 8FU474411100 8FU4744110	SLIDER 1	77,00 €
# 84	90105-06557 958170602000 9010506557	BOLT, FLANGE	1,15 €
# 85	90387-07717 9038707717 9038707717	COLLAR (3L1)	4,50 €
# 86	90111-06038 9011106038 9011106038	BOLT	3,80 €
# 87	90464-16061 9046416061 9046416061	CLAMP	2,00 €
