| # 1 |
22C-W2587-00 22CW258700 22CW258700 |
MASTER CYLINDER SUB ASSY
|
||||
| # 2 |
5VS-W0041-00 2D12580700005VSW004100 |
CYLINDER KIT, MASTER
|
||||
| # 3 |
5VS-25852-00 5VS2585200 5VS2585200 |
CAP, RESERVOIR
|
||||
| # 4 |
5VS-25855-00 5VS2585500 5VS2585500 |
BUSH, DIAPHRAGM
|
||||
| # 5 |
20S-25854-00 20S2585400 20S2585400 |
GASKET, DIAPHRAGM
|
||||
| # 6 |
5VS-2589H-00 5VS2589H00 5VS2589H00 |
SCREW
|
||||
| # 7 |
5VS-2589F-00 5VS2589F00 5VS2589F00 |
BOLT, LEVER
|
||||
| # 8 |
95617-06100 9561706100 9561706100 |
NUT, SELF-LOCKING
|
||||
| # 9 |
5VS-83922-00 5VS8392200 5VS8392200 |
LEVER 2
|
||||
| # 10 |
5VS-26332-00 5VS2633200 5VS2633200 |
BOLT
|
||||
| # 11 |
5VS-25867-00 5VS2586700 5VS2586700 |
BRACKET, MASTER CYLINDER
|
||||
| # 12 |
4HM-83980-00 4HM8398000 4HM8398000 |
FRONT STOP SWITCH ASSY
|
||||
| # 13 |
98502-04012 9851704012009850204012 |
SCREW, PAN HEAD
|
||||
| # 14 |
92902-04100 9299004100009290204100 |
YBS67-4 WASHER, SPRING
|
||||
| # 15 |
92902-04600 9299004600009290204600 |
WASHER, PLAIN (646)
|
||||
| # 16 |
22C-25872-00 22C2587200 22C2587200 |
HOSE, BRAKE 1
|
||||
| # 17 |
95707-06500 9570706500 9570706500 |
NUT, FLANGE(4MV)
|
||||
| # 18 |
90401-10172 9040110172 9040110172 |
BOLT, UNION
|
||||
| # 19 |
90401-10038 9040110038 9040110038 |
BOLT, UNION
|
||||
| # 20 |
90430-10005 9043010005 9043010005 |
GASKET
|
||||
| # 21 |
22C-25875-00 22C2587500 22C2587500 |
HOLDER, BRAKE HOSE 1
|
||||
| # 22 |
22C-2584A-00 22C2584A00 22C2584A00 |
BRAKE HOSE ASSY
|
||||
| # 23 |
22C-2584B-00 22C2584B00 22C2584B00 |
HOSE, BRAKE
|
||||
| # 24 |
22C-2588F-00 22C2588F00 22C2588F00 |
HOLDER, BRAKE HOSE 5
|
||||
| # 25 |
90105-06400 9502706020009010506400 |
BOLT, FLANGE(6U1)
|
||||
| # 26 |
95027-06010 9502706010 9502706010 |
BOLT, FLANGE(4MY)
|
||||
| # 27 |
90465-10098 9046510098 9046510098 |
CLAMP
|
||||
| # 28 |
22C-2612E-00 22C2612E00 22C2612E00 |
BRACKET
|
||||
| # 29 |
95807-06010 9581706010009580706010 |
BOLT, FLANGE
|
||||
| # 30 |
90464-07013 9046407013 9046407013 |
CLAMP
|
||||
| # 31 |
95027-06025 90105060A0009502706025 |
BOLT, WASHER BASED(4KG)
|
||||
| # 32 |
22C-2612K-00 22C2612K00 22C2612K00 |
BRKT 2
|
||||
| # 33 |
5D0-26292-00 5D02629200 5D02629200 |
STAY
|
||||
| # 34 |
95027-06020 9502706020 9502706020 |
BOLT, FLANGE(6U1)
|
||||
| # 35 |
2D1-23377-00 2D12337700 2D12337700 |
BRACKET, HORN
|
||||
| # 36 |
95707-06500 9570706500 9570706500 |
NUT, FLANGE(4MV)
|
||||
| # 37 |
95817-06012 9581706012 9581706012 |
BOLT, FLANGE
|

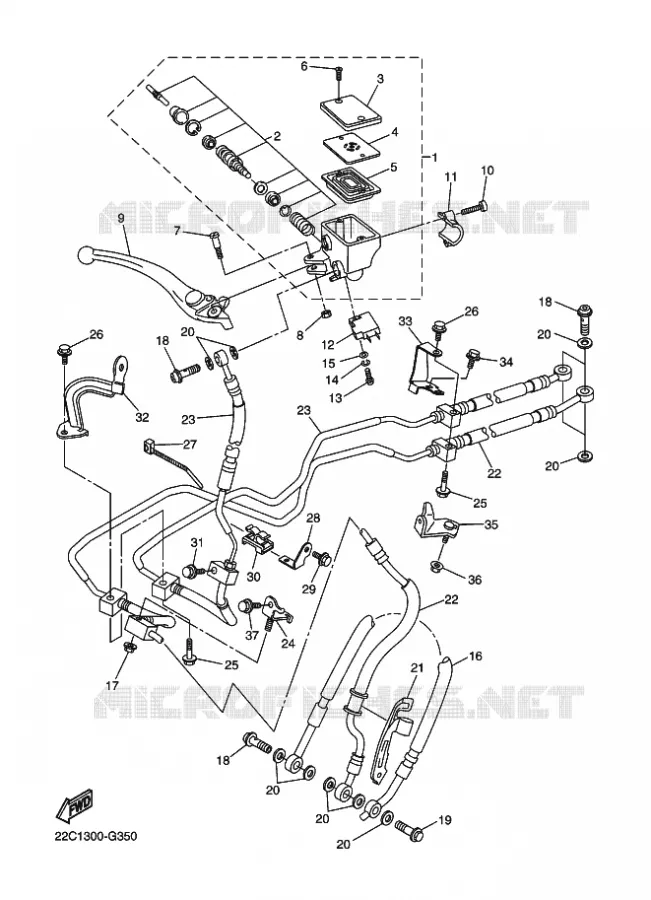

Yamaha FZ1-NA
Cilinderinhoud: 1000 Jaar: 2010 Model code 22CA Kleur: BLUISH WHITE COCKTAIL 1
